B1353

DTC B1353 (1st Stage) Passenger Airbag Resistance too Low

DESCRIPTION




The Passenger Airbag circuit consists of the SRSCM and the Passenger Airbag (PAB) which has two squib circuits. The SRSCM sets above DTC(s) if it detects that the resistance of PAB squib is too high or low.

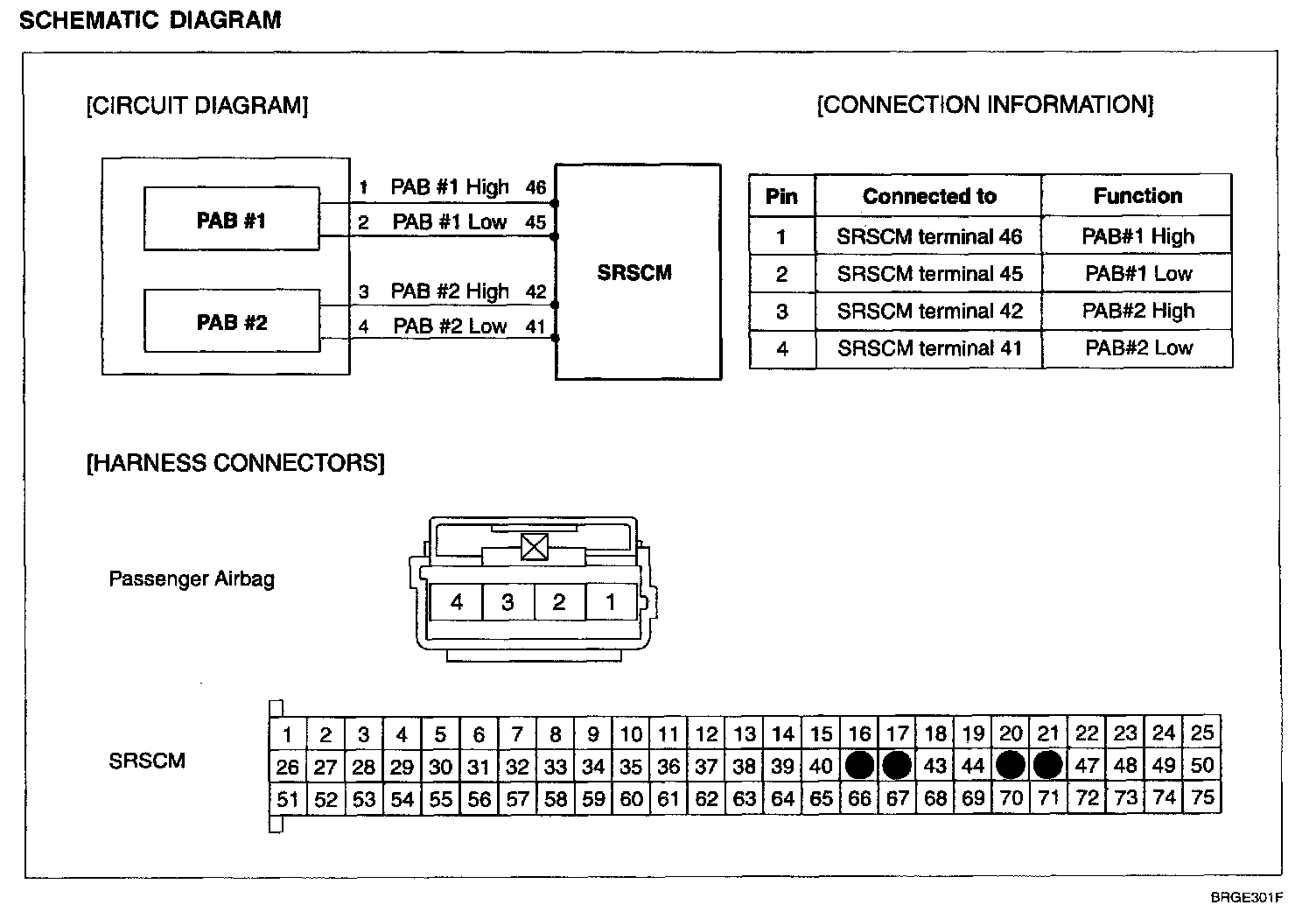

Schematic Diagram:

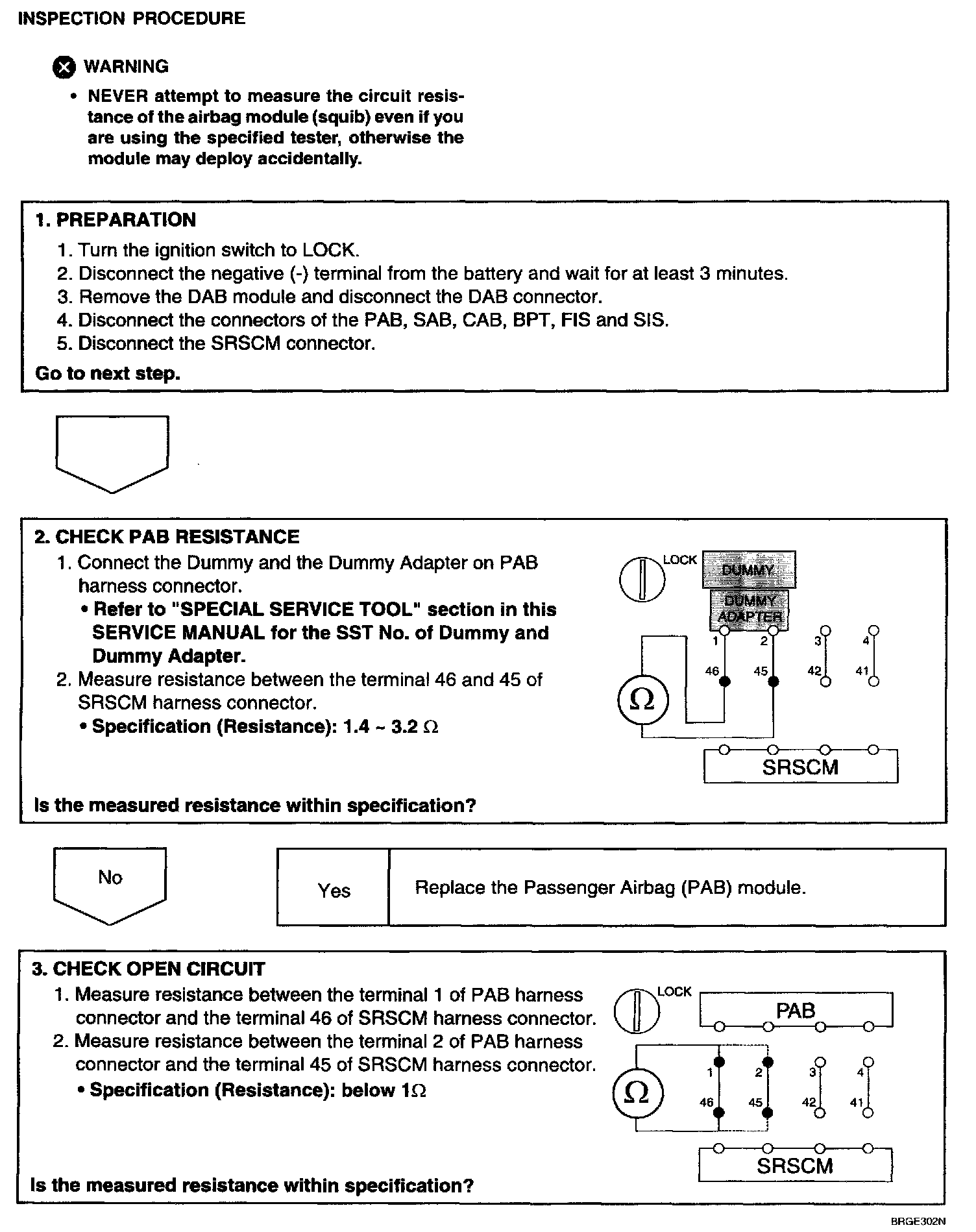

Step 1 - 3:

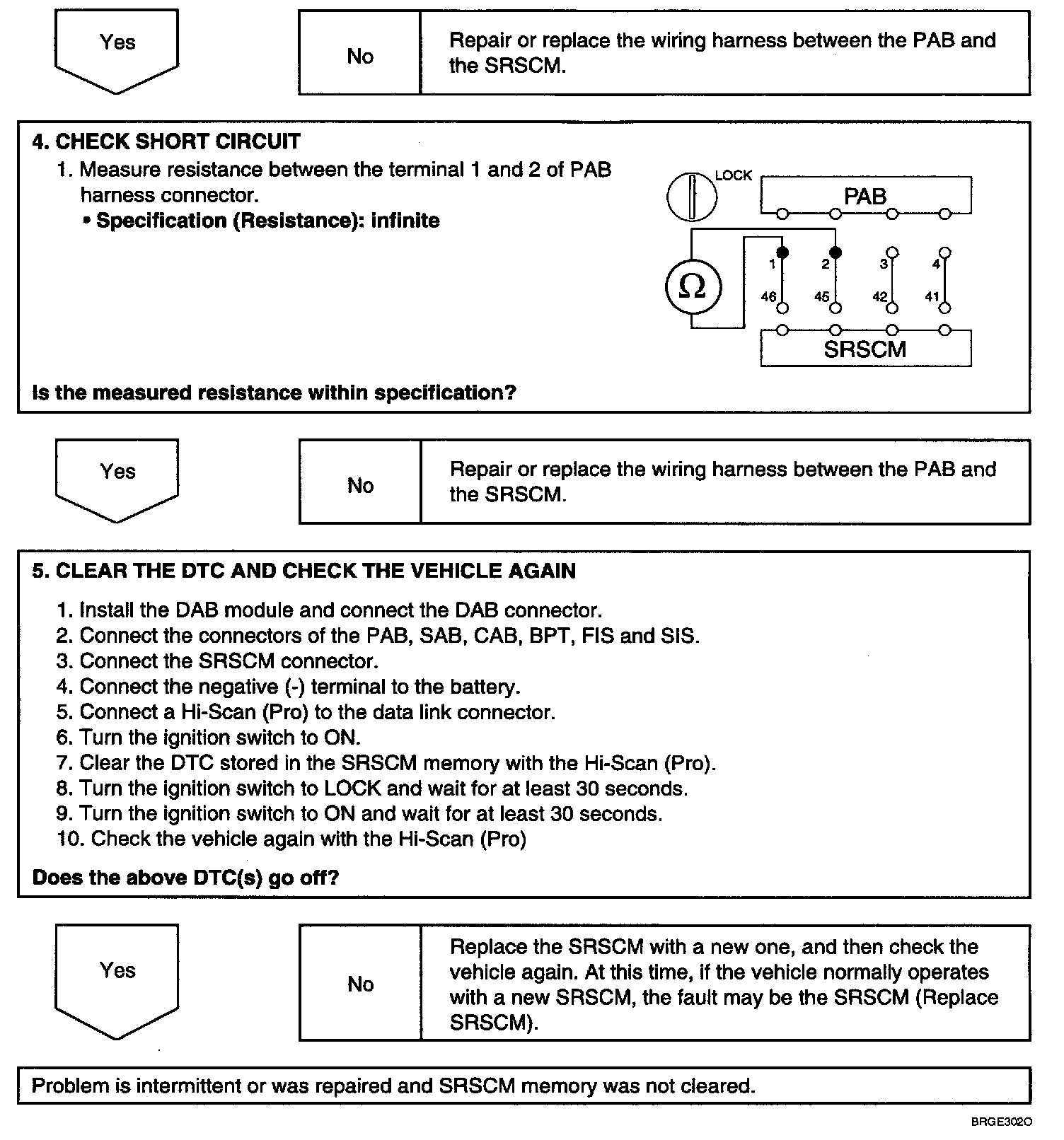

Step 3 - 5:

INSPECTION PROCEDURE
