B1338

DTC B1338 Front Impact Sensor [Center] Defect

DESCRIPTION

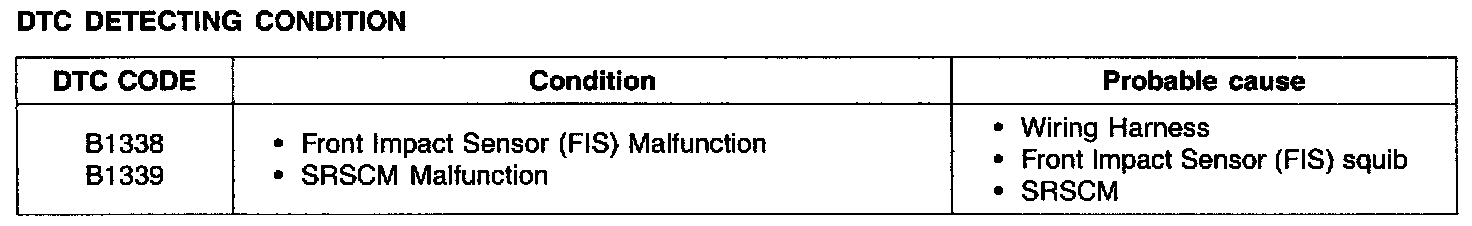

B1338 - B1339:

The detecting system for frontal crash consists of the SRSCM and a Front Impact Sensor (FIS). The SRSCM sets above DTCs if it detects that the FIS is defective or there is communication error between the FIS and the SRSCM.

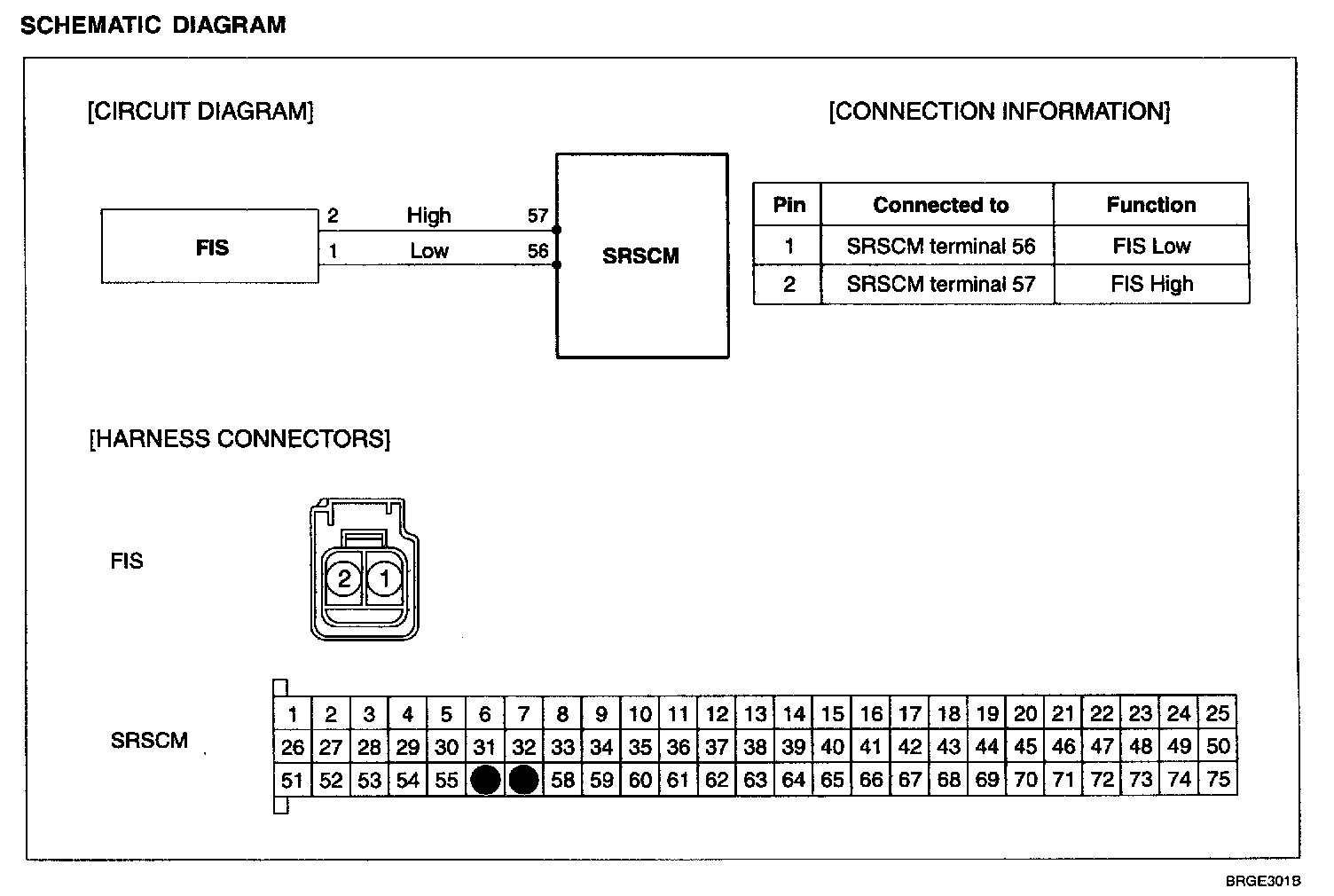

Schematic Diagram:

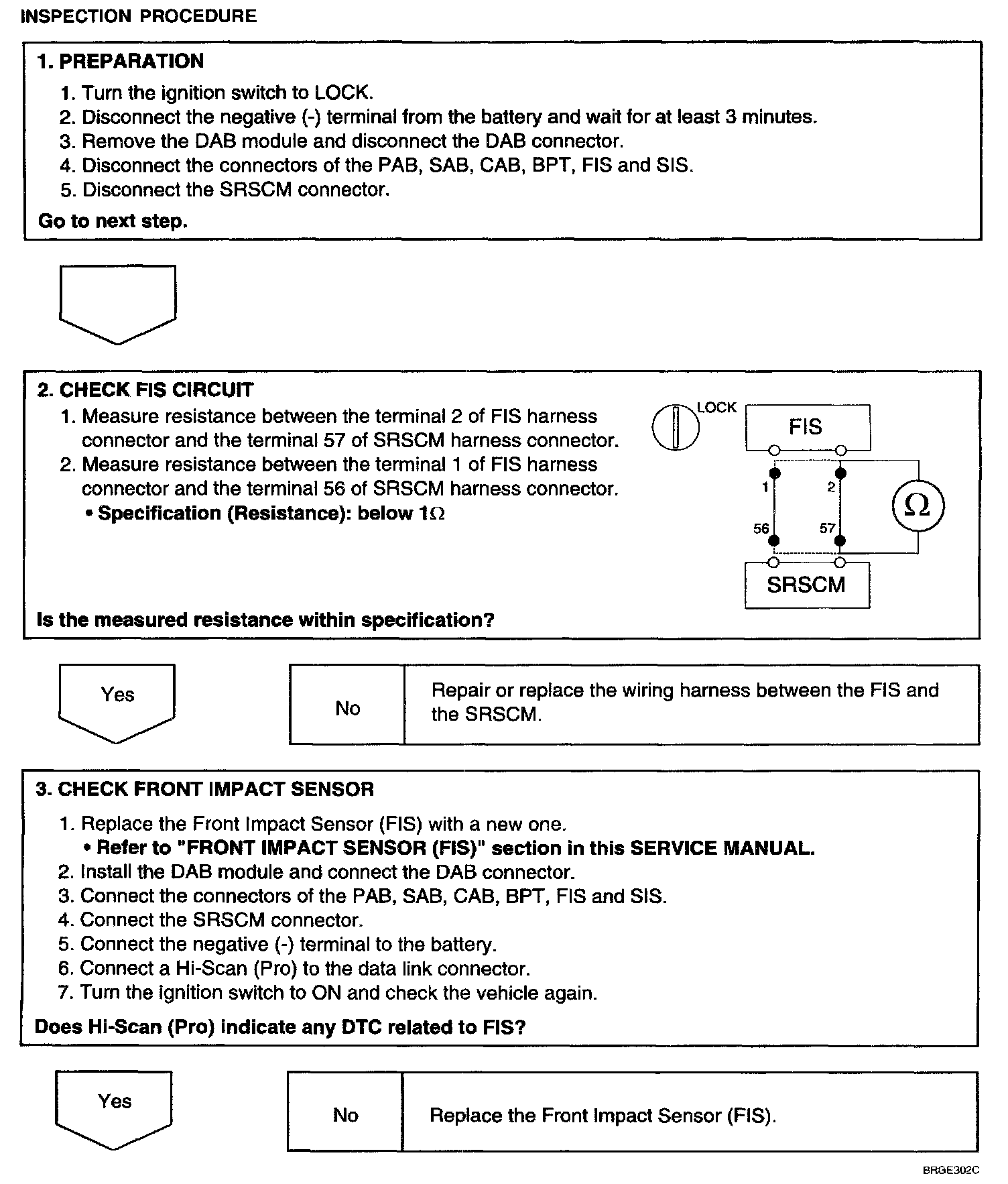

Step 1 - 3:

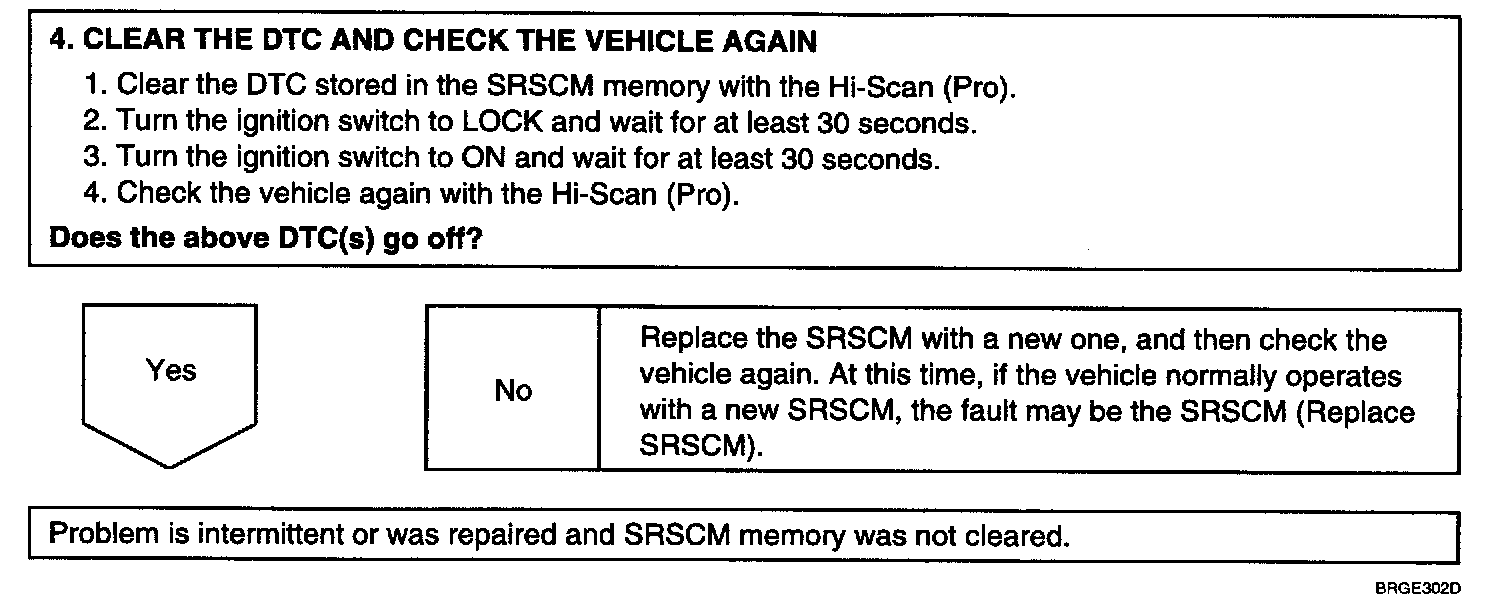

Step 4:

INSPECTION PROCEDURE
