Home >> Kia >> 2004 >> Spectra L4-1.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Description and Operation

Computers and Control Systems: Description and Operation

Component Description Table:

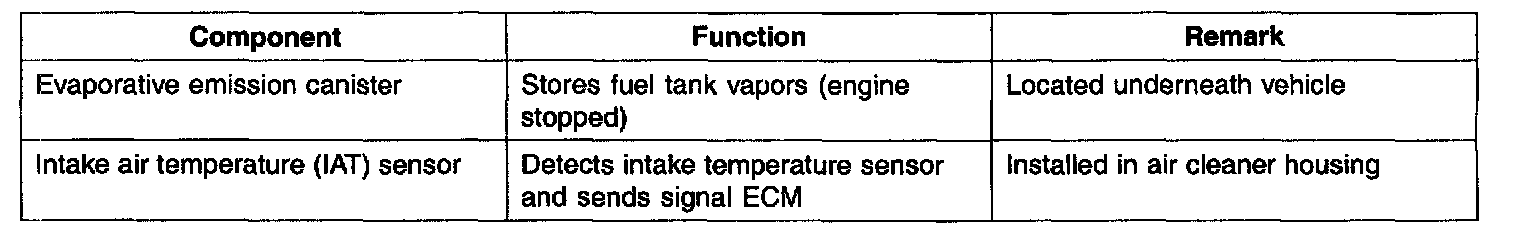

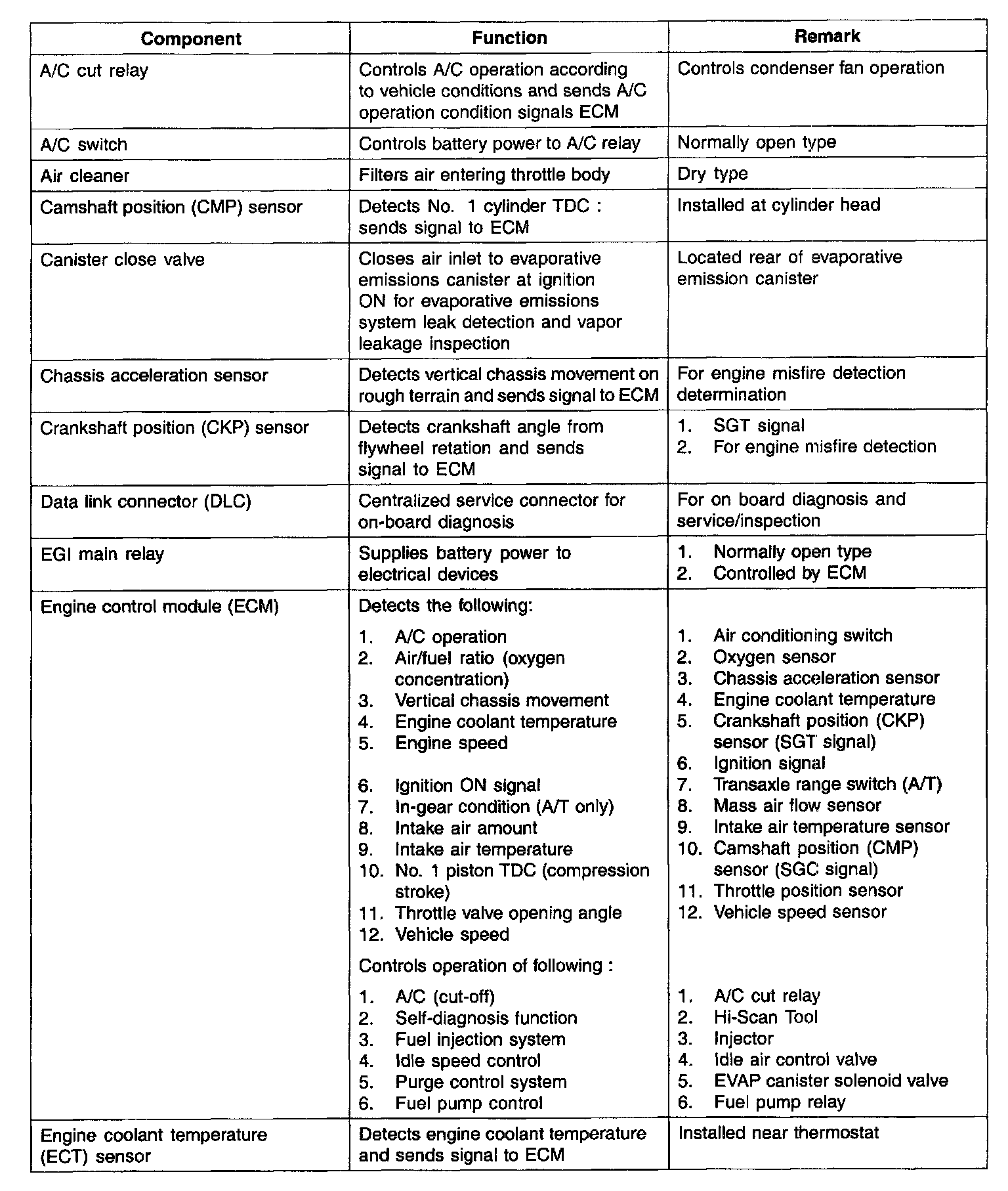

Component Description Table Part 1:

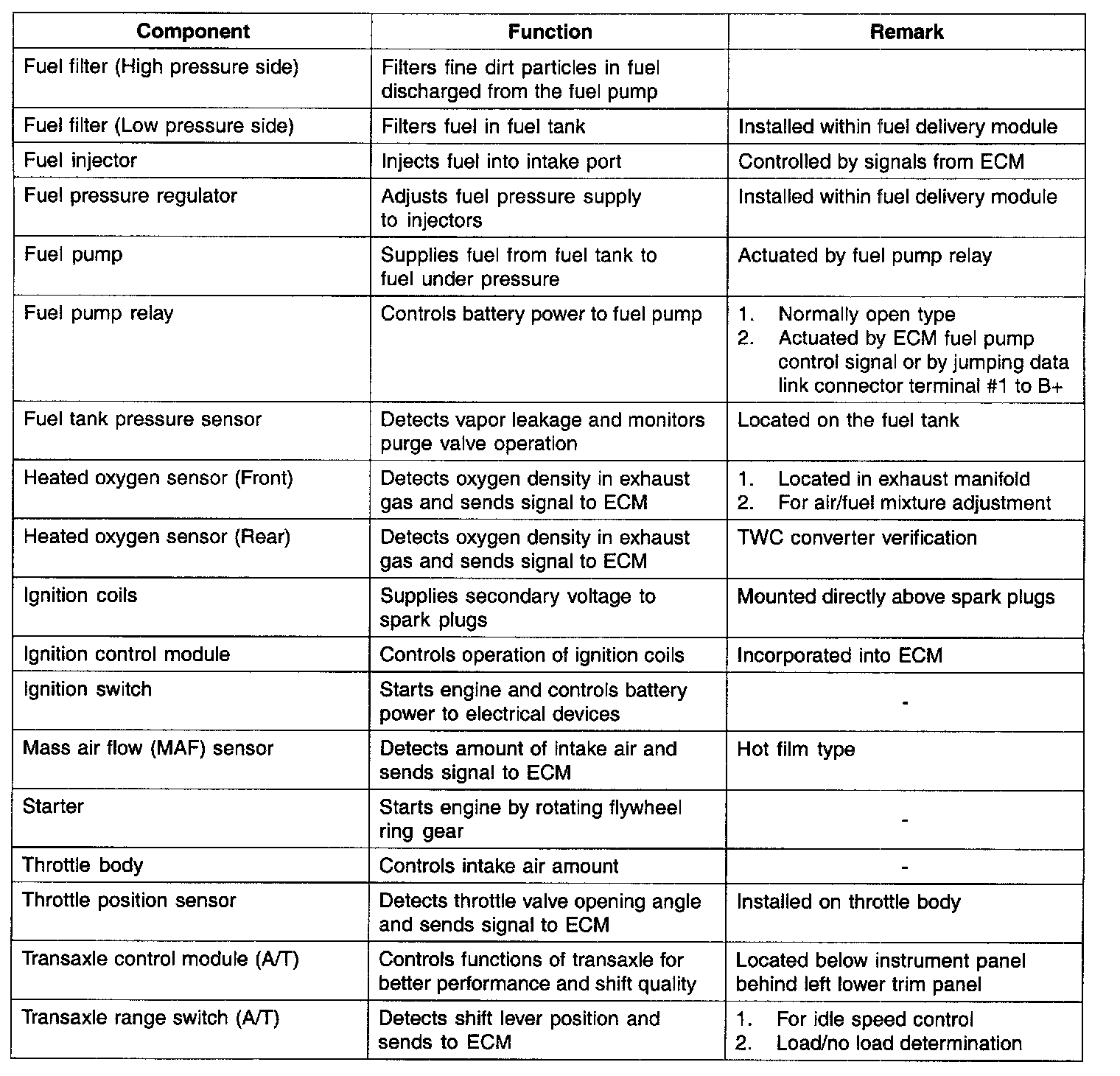

Component Description Table Part 2:
