Vehicle Lifting and Jacking

JACK AND SAFETY STAND POSITIONS

FRONT END




Jack position:
At the front crossmember




Safety stand positions:
On both sides of the body frame

JACK AND SAFETY STAND POSITIONS

REAR END

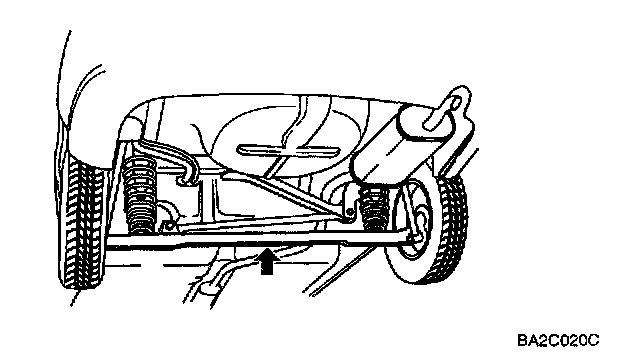

Jack position:
At the center of the rear crossmember




Safety stand positions:
On both sides of the body frame

VEHICLE LIFT (2-SUPPORT TYPE) POSITIONS

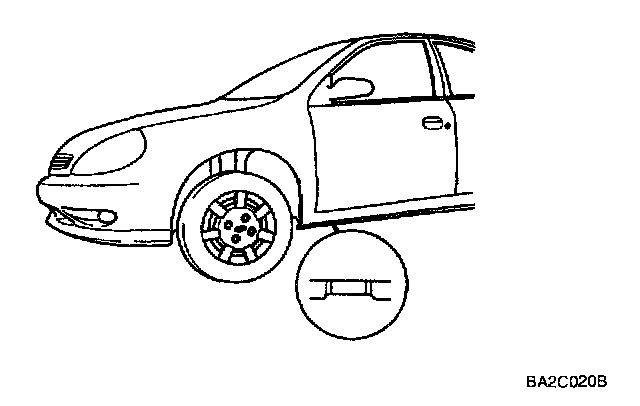

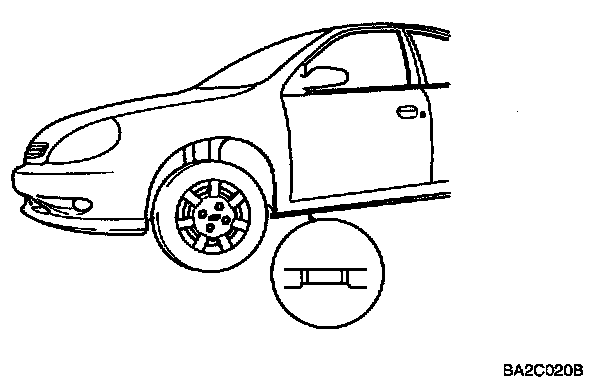

Front end
Side sills

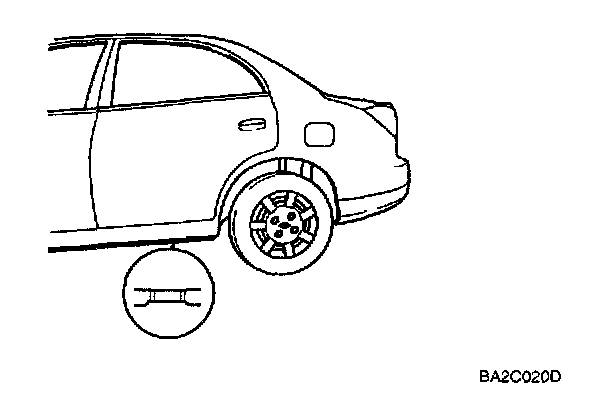

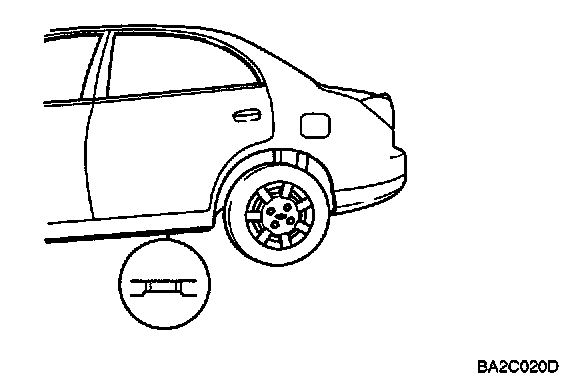

Rear end
Side sills
