Antilock Brakes / Traction Control Systems

Diagram O:

Routing View O:

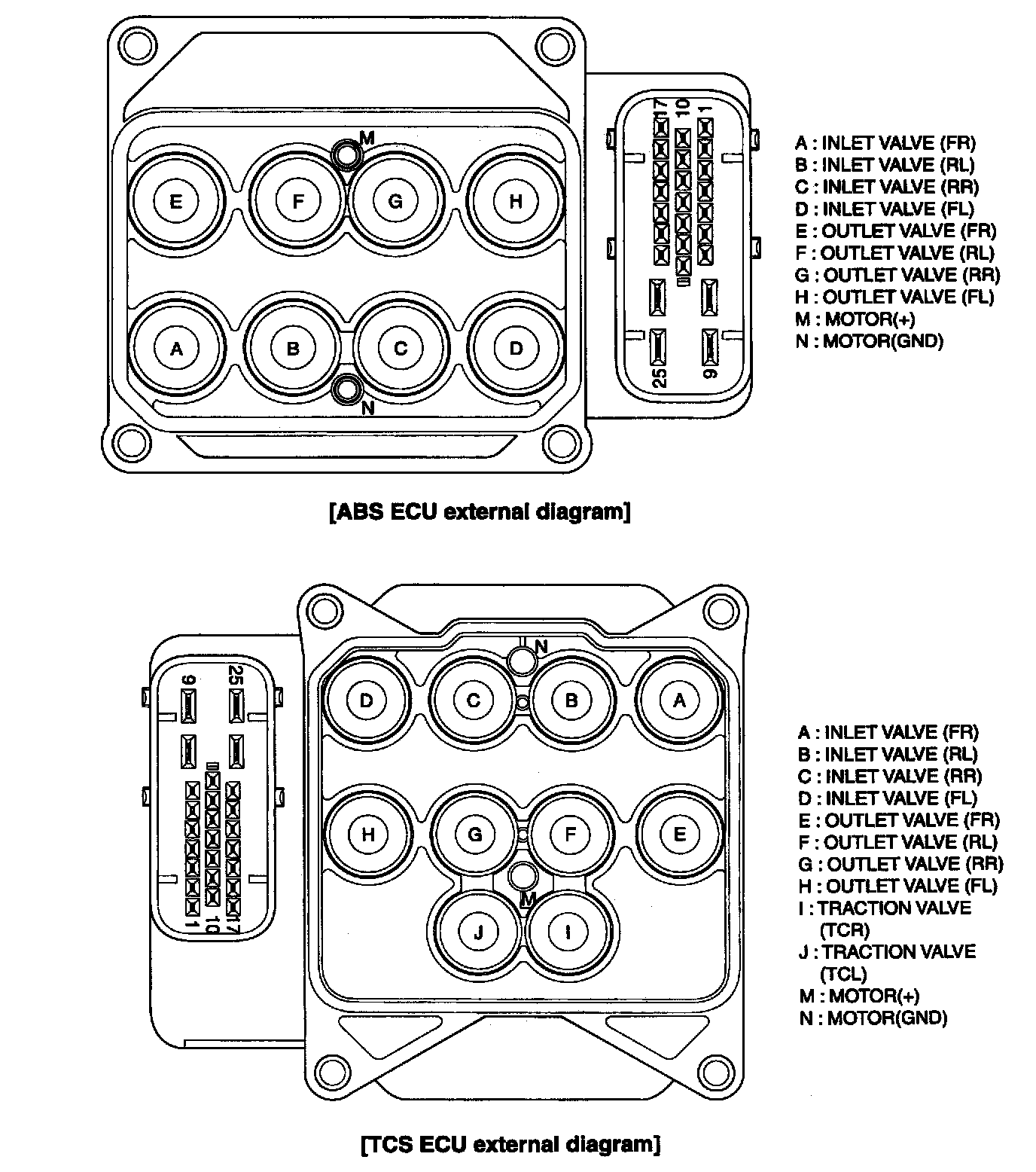

Hecu External Diagram:

INPUT/OUTPUT BLOCK DIAGRAM:

ABS ECU BLOCK DIAGRAM:

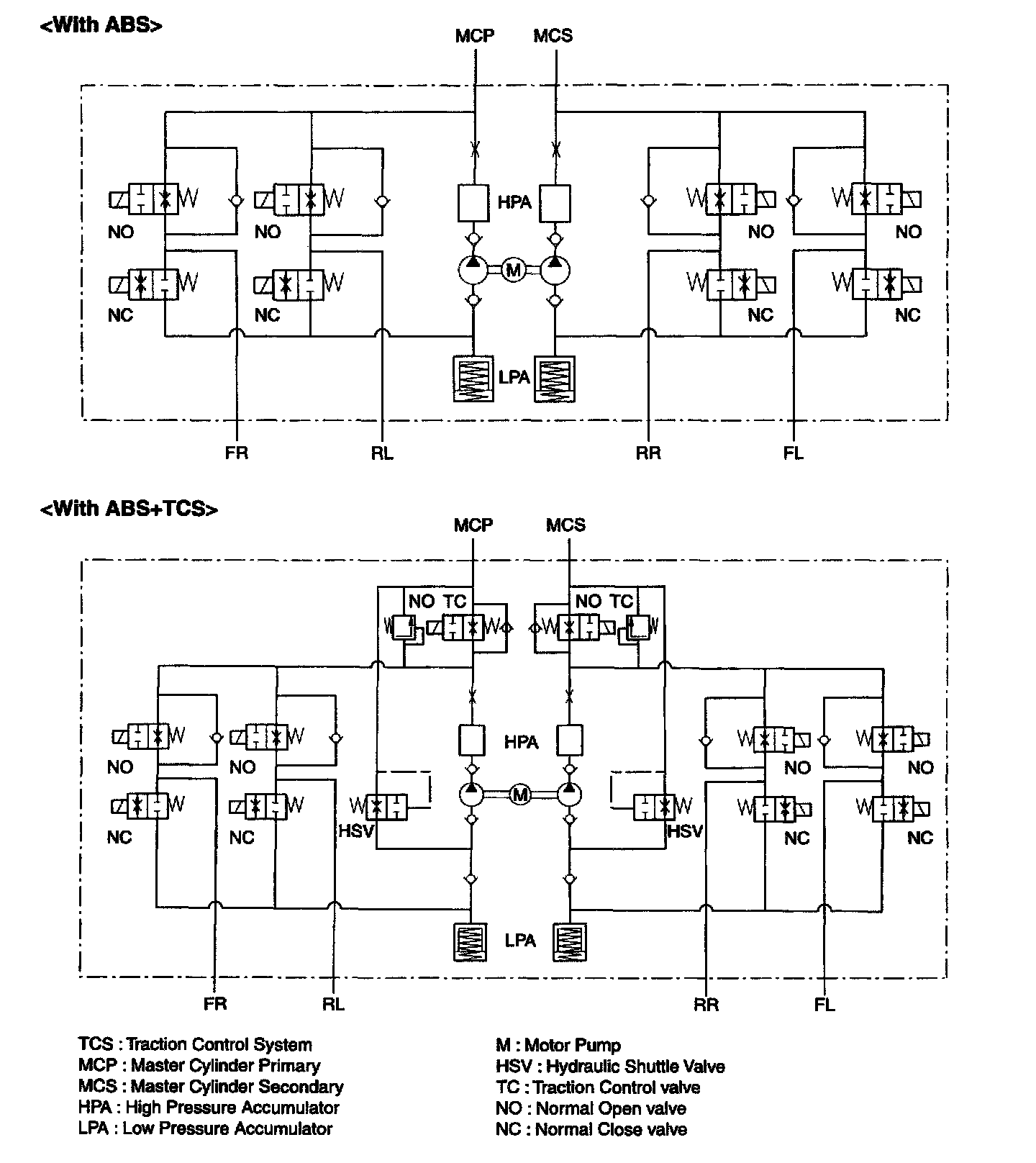

HYDRAULIC SYSTEM DIAGRAM:

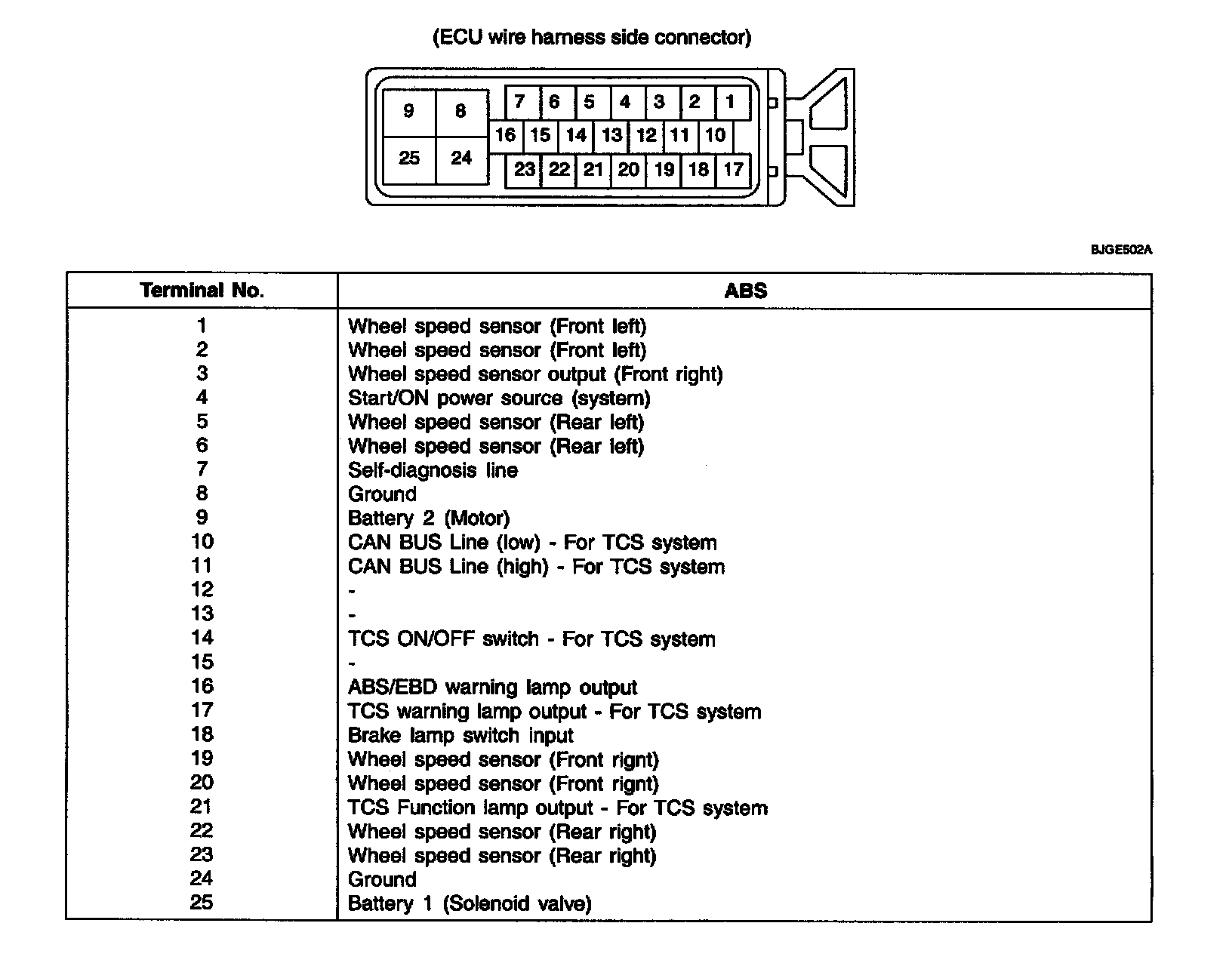

HECU CONNECTOR INPUT/OUTPUT:

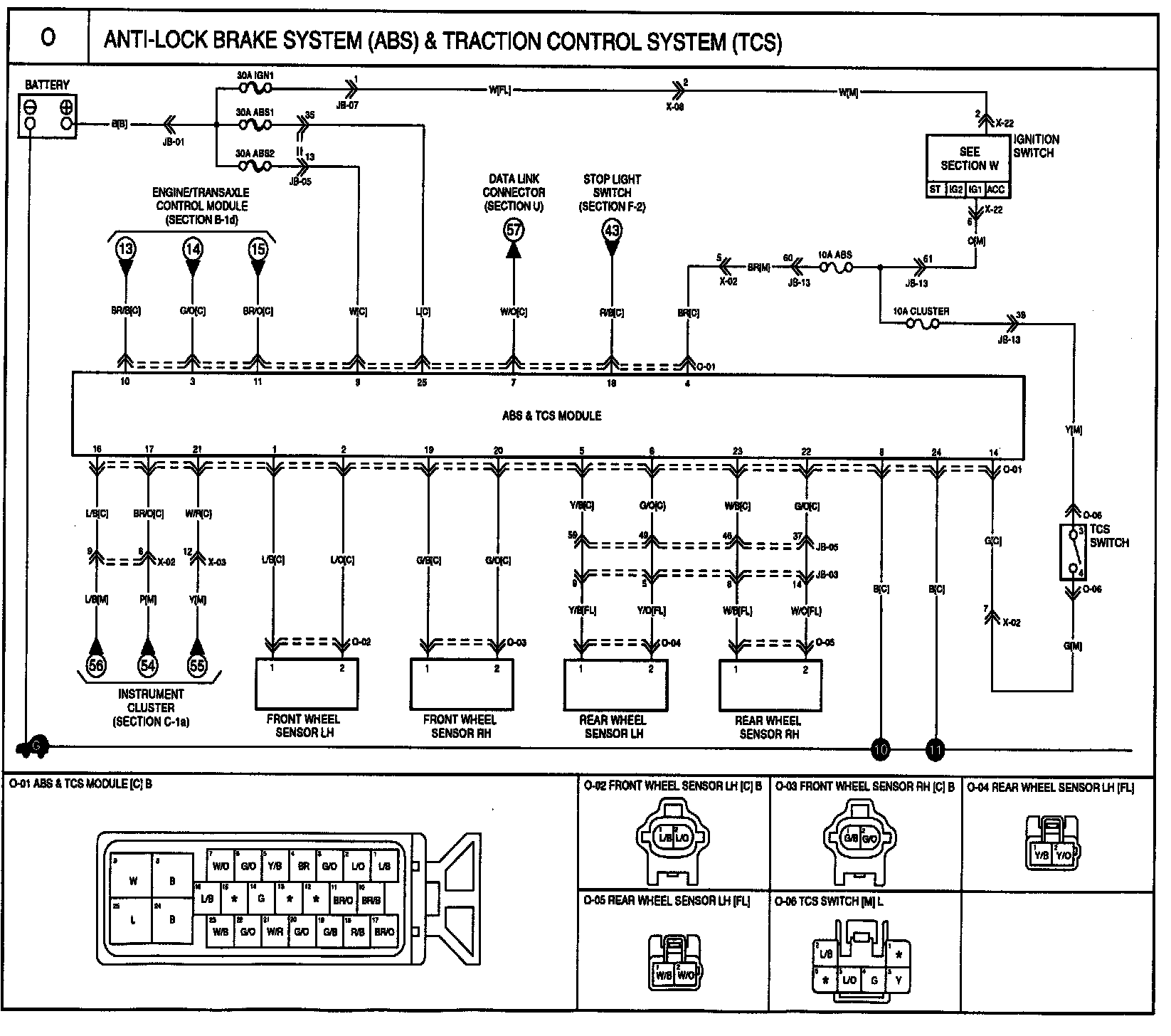

CIRCUIT DIAGRAM:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
