Antilock Brakes / Traction Control Systems

O - Anti-lock Brake System Connectors:

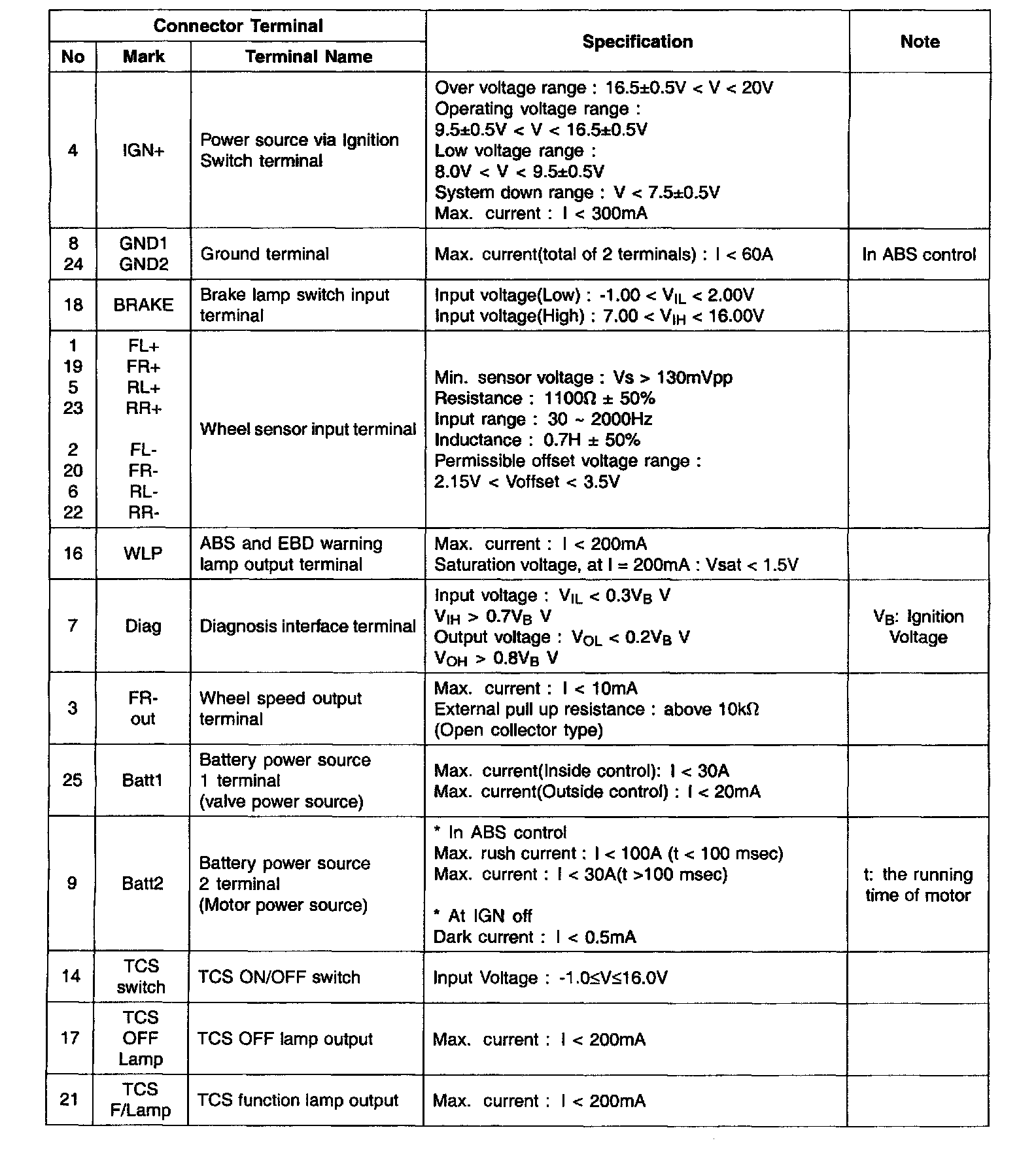

HECU INPUT/OUTPUT SPECIFICATION (ABS&TCS):
