Rear

Rear window wiper motor

Removal
1. Disconnect the negative battery cable.
2. Disconnect the wiper arm. Refer to "Windshield Wiper/Washer System".
3. Remove the rear hatch trim. Refer to "Trim".

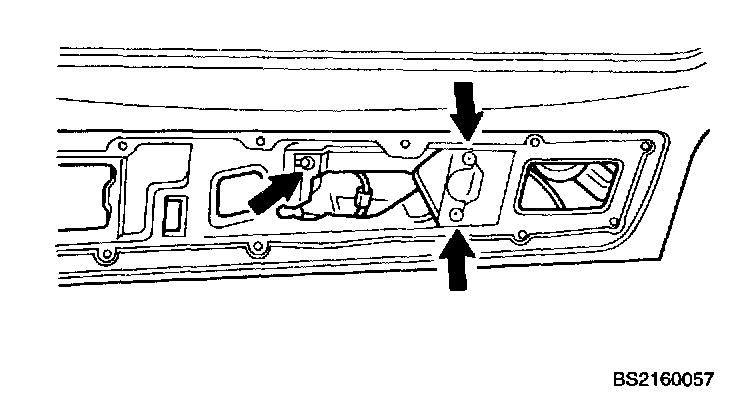

4. Remove the three mounting bolts.
5. Disconnect the wiper motor harness connector.
6. Remove the wiper motor from the door.

Installation
1. Reverse removal procedure
2. Check the function of the rear wiper.
