Front Washer Hose

Washer Hose

Removal




1. Disconnect washer nozzles.
2. Disconnect hose clips on side panel.

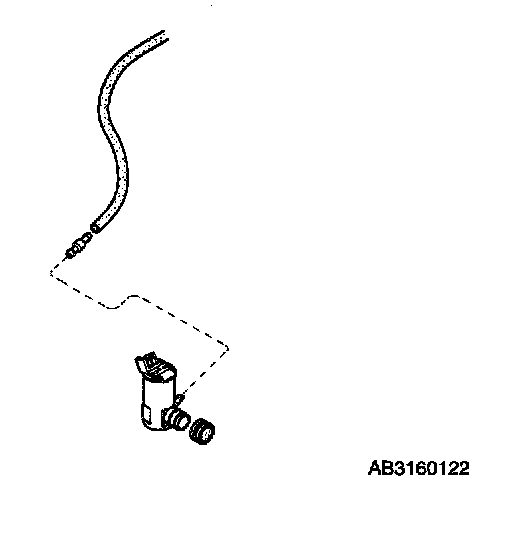

3. Disconnect hose from washer motor.

Installation
Reverse removal procedures.
