Electrical Diagrams

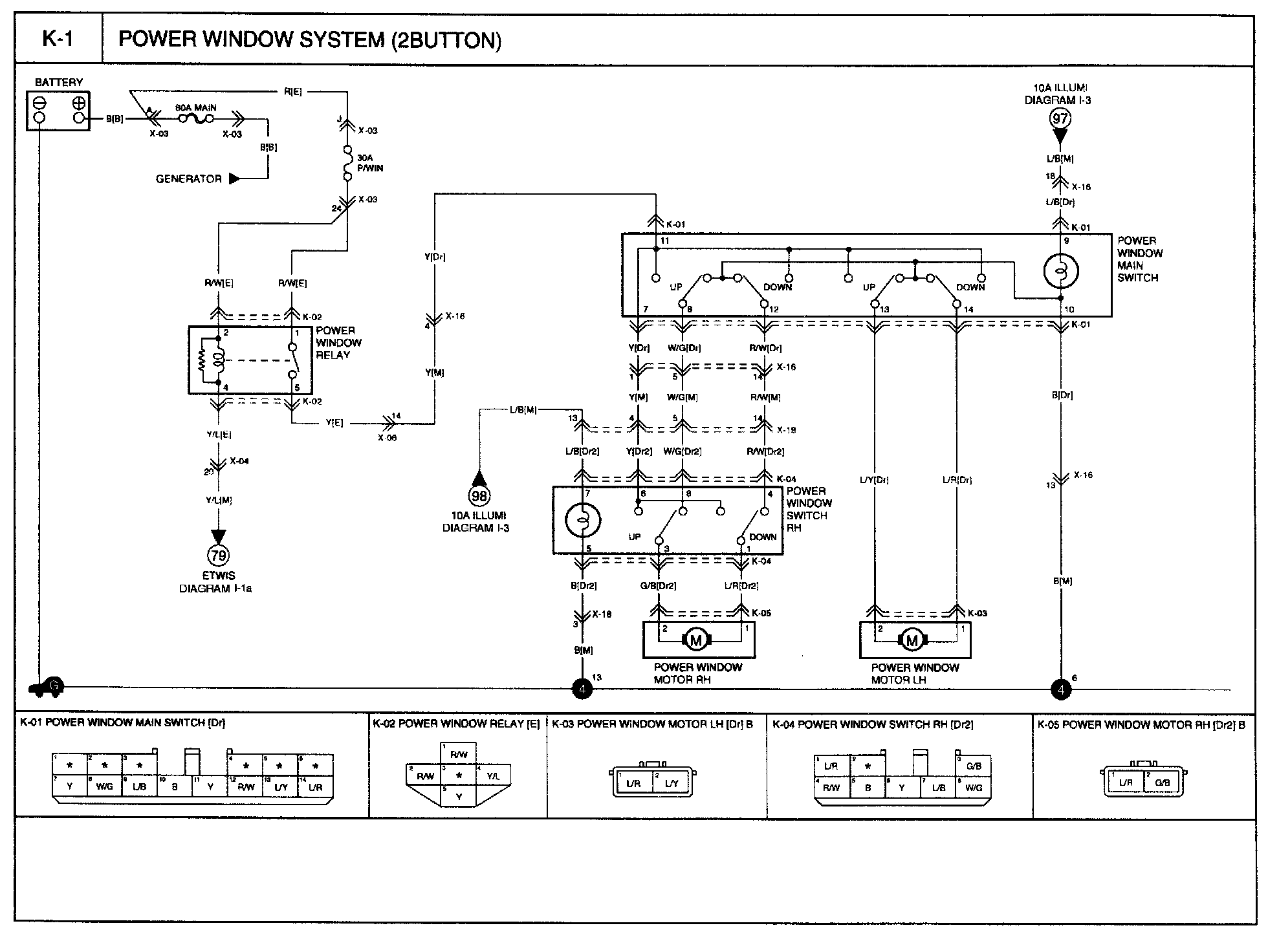

Diagram K-1:

Routing View K-1:

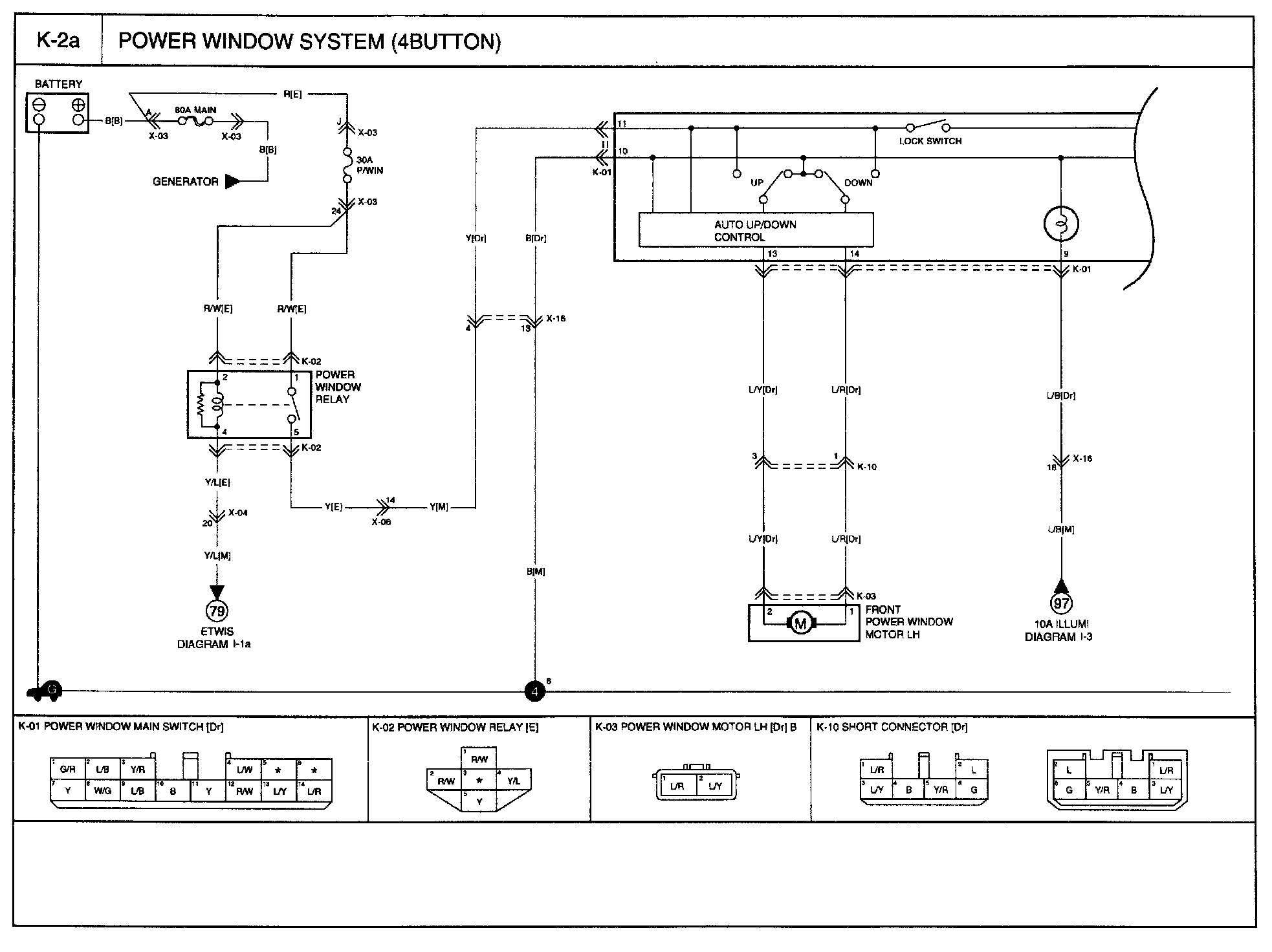

Diagram K-2a:

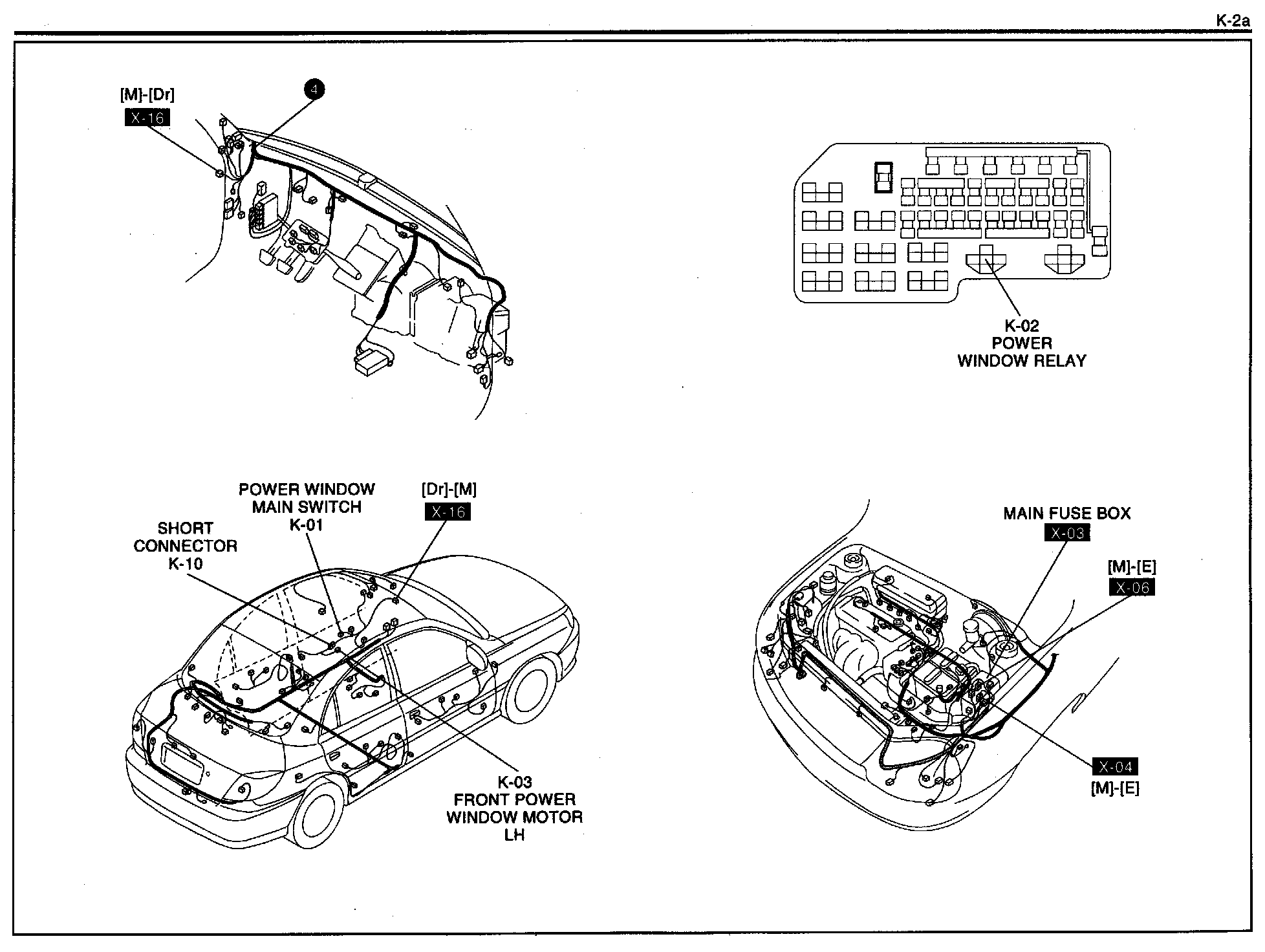

Routing View K-2a:

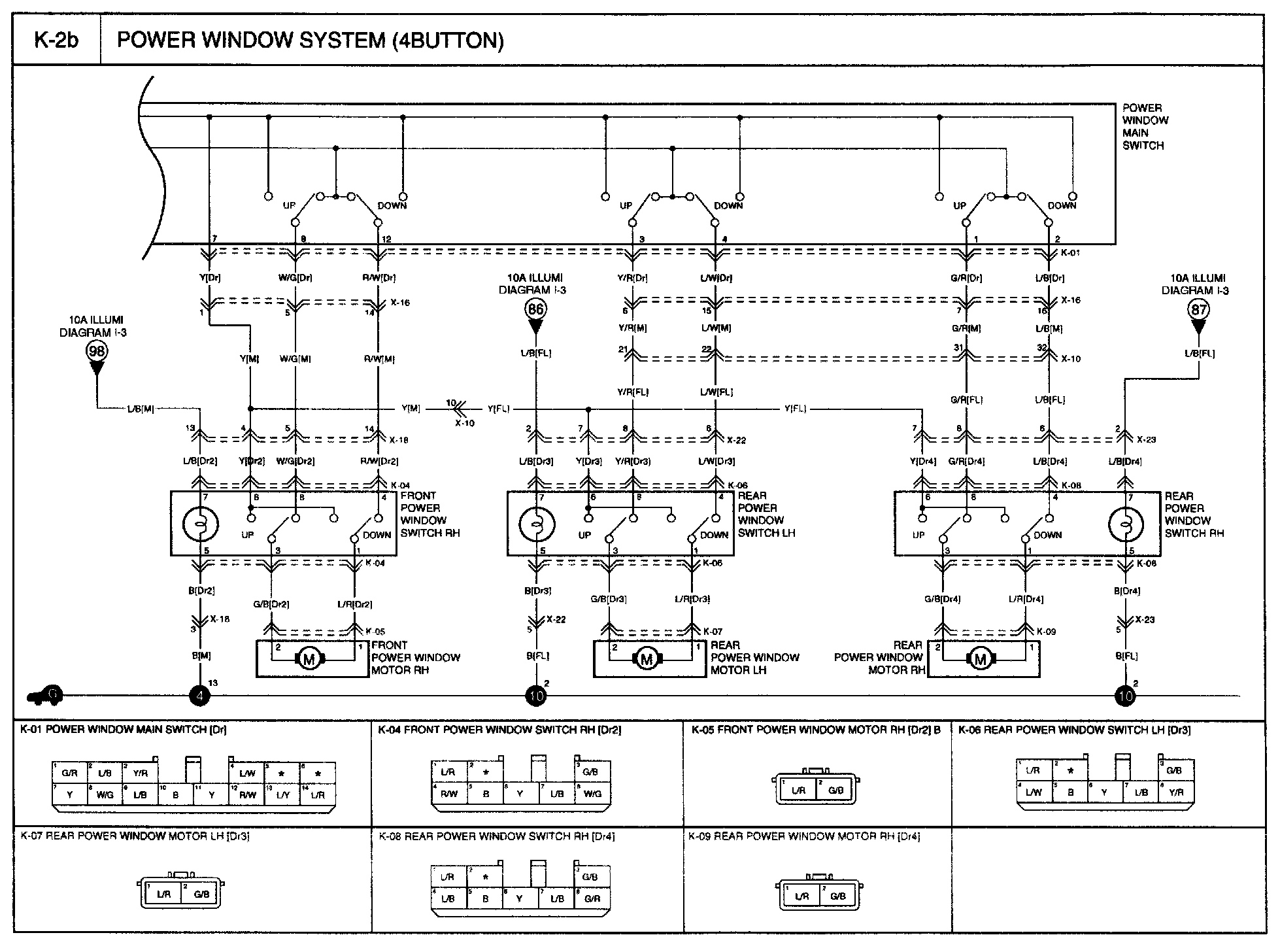

Diagram K-2b:

Routing View K-2b:
