Clutch Cable: Service and Repair

Removal
1. Loosen the cable adjuster nut at the transaxle release lever until the cable can be disengaged from the lever.
2. Remove the bolts attaching the cable routing bracket to the transaxle.
3. Remove the clip which is securing the cable case to the pedal support bracket.





4. Pull upward on the cable and disengage it from the hook on the pedal.
5. If necessary, loosen the attaching nut and remove the routing bracket.
6. Remove the cable through the hole in the bulkhead.

Inspection
Check the following parts and replace if necessary.
1. Worn or damaged bushings.
2. Twisted or bent clutch pedal.
3. Worn or damaged pedal pad.
4. Damage to the inner or outer cable.
5. Function of the cable.

Installation

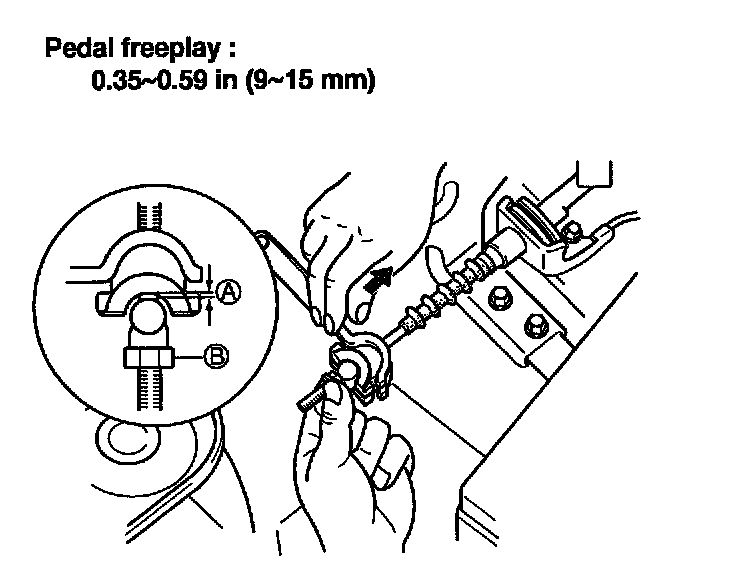

To install, reverse the removal procedure. Adjust the clutch pedal free play.
