3-4 Clutch
3-4 CLUTCHPRE-INSPECTION
Clutch operation

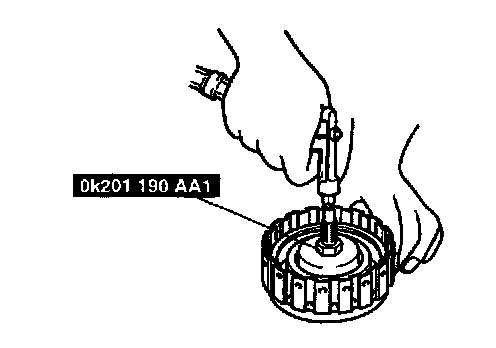

1. Install SST (OK201 190 AA1) as shown, and check clutch operation by applying compressed air.
Air pressure: 57 psi (392 kPa, 4.0 kg/cm2) maximum
Clutch clearance

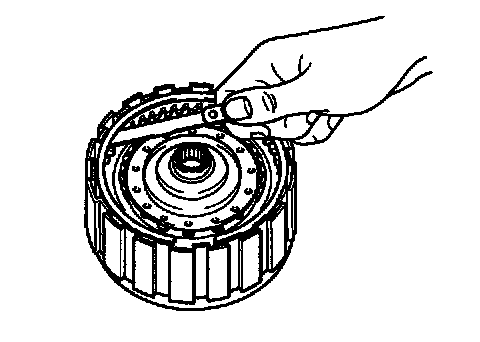

2. Measure clearance between snap ring and retaining plate of 3-4 clutch.
3. If clearance is not within specification, replace parts as necessary.
3-4 clutch clearance: 0.051 - 0.063 inch (1.3 - 1.6 mm)

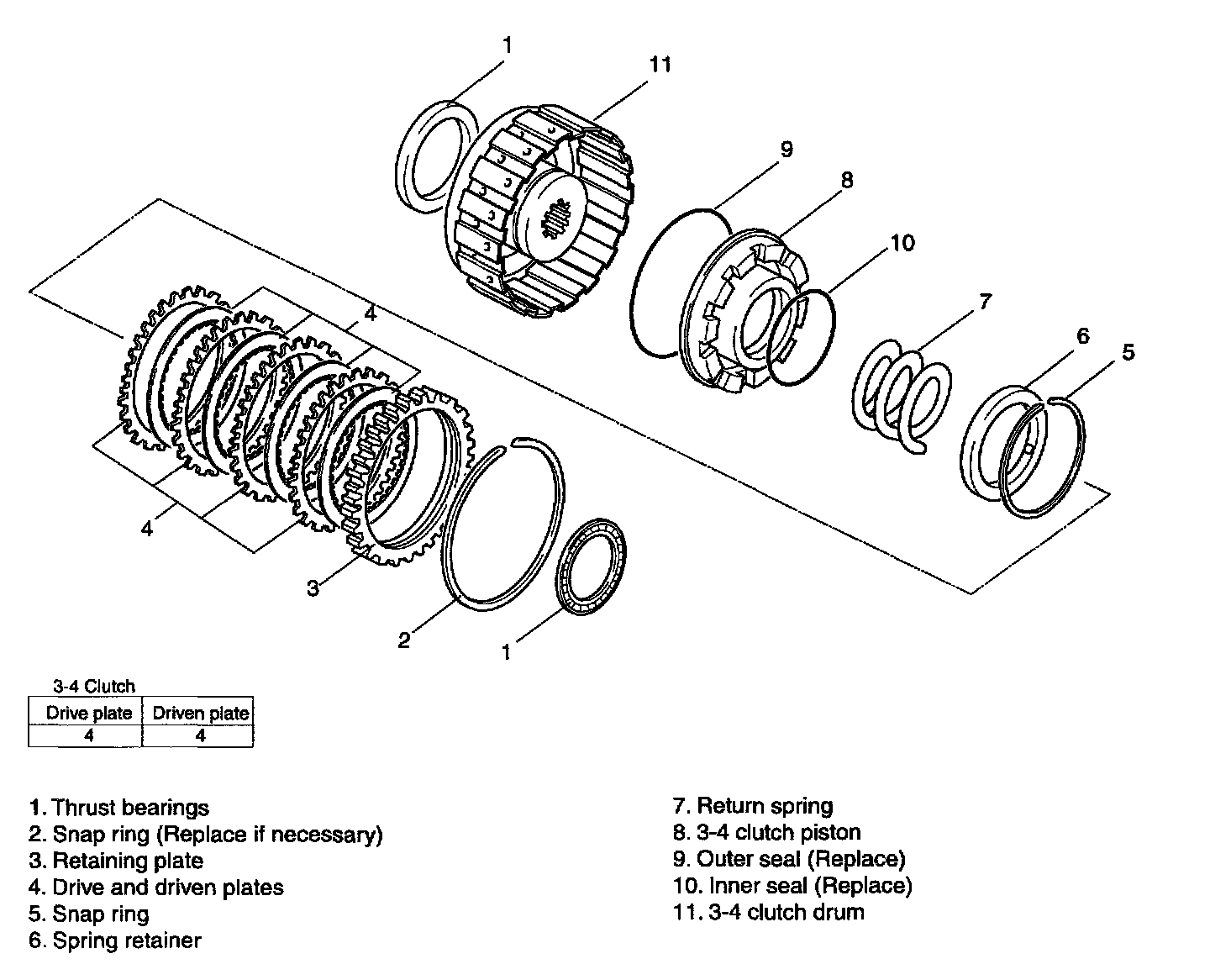

COMPONENT
DISASSEMBLY
1. Remove two trust bearings.

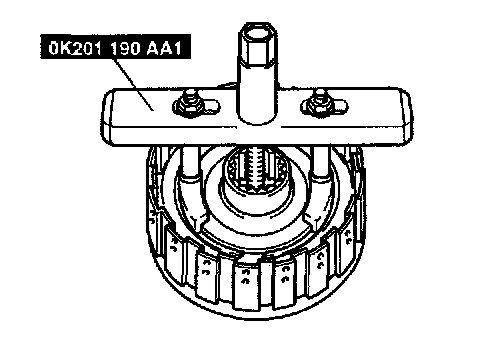

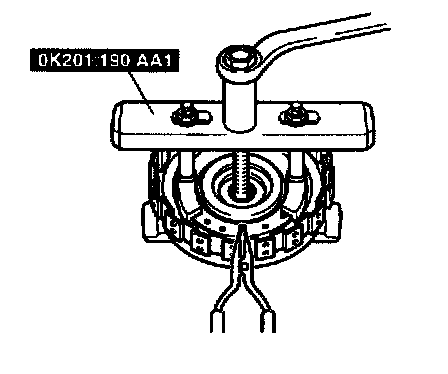

2. Install SST (OK201 190 AA1) to 3-4 clutch as shown.
3. Compress spring and retainer assembly.
4. Remove snap ring.
5. Remove SST (OK201 190 AA1), then remove spring and retainer.
6. Remove snap ring.
7. Remove retaining plate.
8. Remove drive and driven plates. (each three).

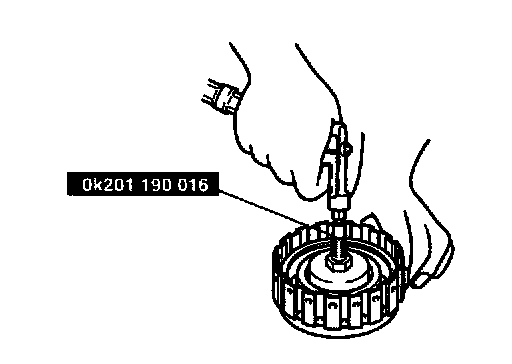

9. Install SST (OK201 190 016) onto 3-4 clutch drum and remove 3-4 clutch piston using compressed air.
Air pressure: 57 psi (392 kPa, 4.0 kg/cm2) maximum
10. Remove SST (OK201 190 016).
11. Remove outer seal and inner seal 3-4 clutch piston.
INSPECTION
Drive plate
1. Measure facing thickness in three places, and determine average of three readings.
Standard: 0.063 inch (1.6 mm)
Minimum: 0.055 inch (1.4 mm)
2. If not within specification, replace drive plate(s).
Return spring

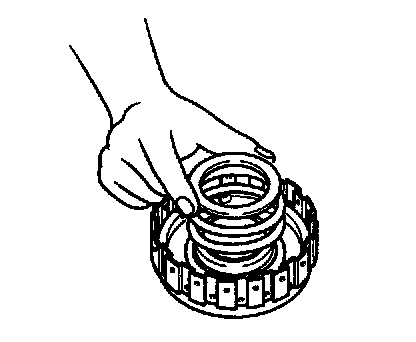

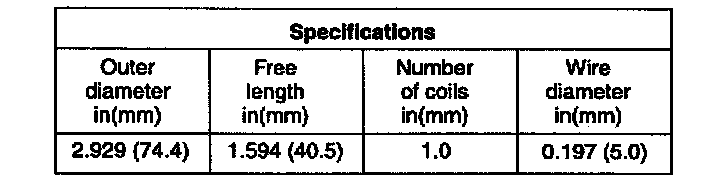

3. Measure spring free length.
4. If not within specification, replace spring.
3-4 clutch piston

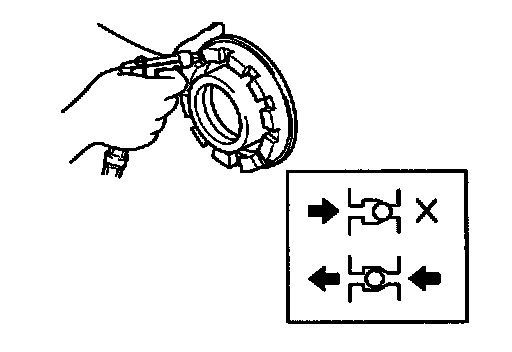

5. Verify that there is not air leakage when applying compressed air through oil hole opposite return spring.
6. Verify that there is air flow when applying compressed air through oil hole on return spring side.
Air pressure: 57 psi (392 kPa, 4.0 kg/cm2) maximum
RE-ASSEMBLY

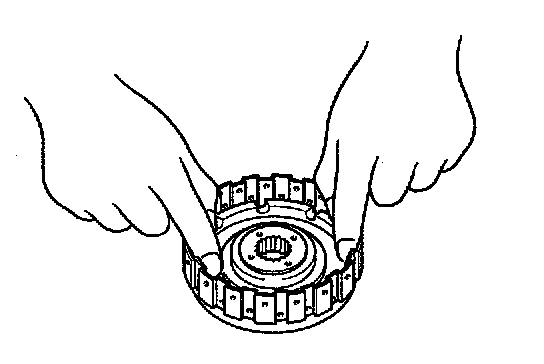

1. Install 3-4 clutch piston.
a. Apply ATF to inner and outer seals, and install them onto 3-4 clutch piston.
b. Install piston by pushing evenly around circumference, being careful not to damage seal rings.
2. Install return spring and spring retainer.
3. Install SST (OK 201 190 AA1) to 3-4 clutch as shown.
4. Compress return spring and spring retainer.
5. Install snap ring.
6. Remove SST (OK201 190 AA1).

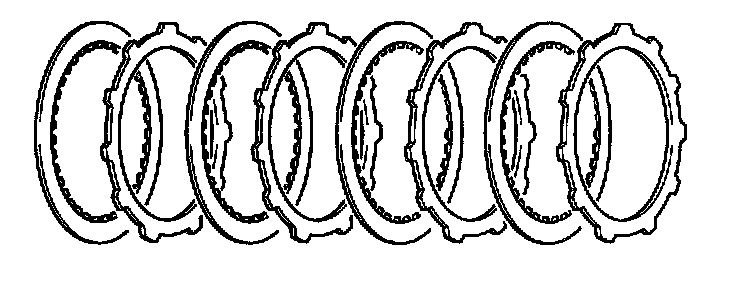

7. Install drive and driven plates. (each three)
NOTE:
Installation order: Driven - Drive - Driven - Drive - Driven - Drive
8. Install retaining plate.
9. Install snap ring.
10. Measure 3-4 clutch clearance.
a. Measure clearance between snap ring and retaining plate of 3-4 clutch.

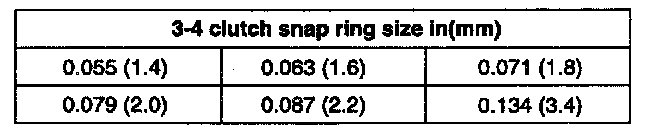

b. If clearance is not within specification, adjust it by selecting correct thickness snap ring.
3-4 clutch clearance: 0.051 - 0.063 inch (1.3 - 1.6 mm)
11. Check clutch operation as follows:

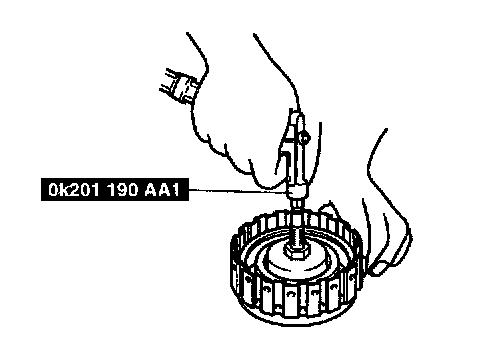

a. Install SST (OK201 190 AA1) as shown, and check clutch operation by applying compressed air.
Air pressure: 57 psi (392 kPa, 4.0 kg/cm2) maximum

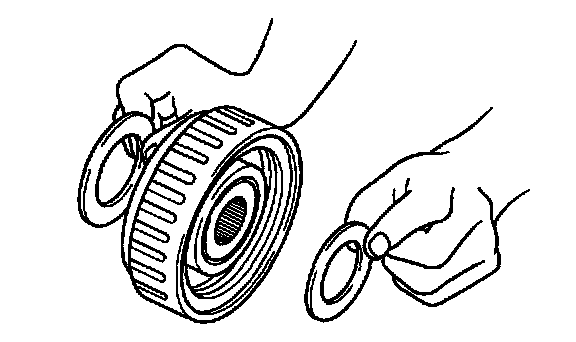

12. Apply petroleum jelly to thrust bearings and secure them to each side of 3-4 clutch drum.
Thrust bearing outer diameter
Planetary carrier side: 2.21 inch (56.1 mm)
Output shell side: 2.84 inch (72.1 mm)
