Hydraulic Circuits

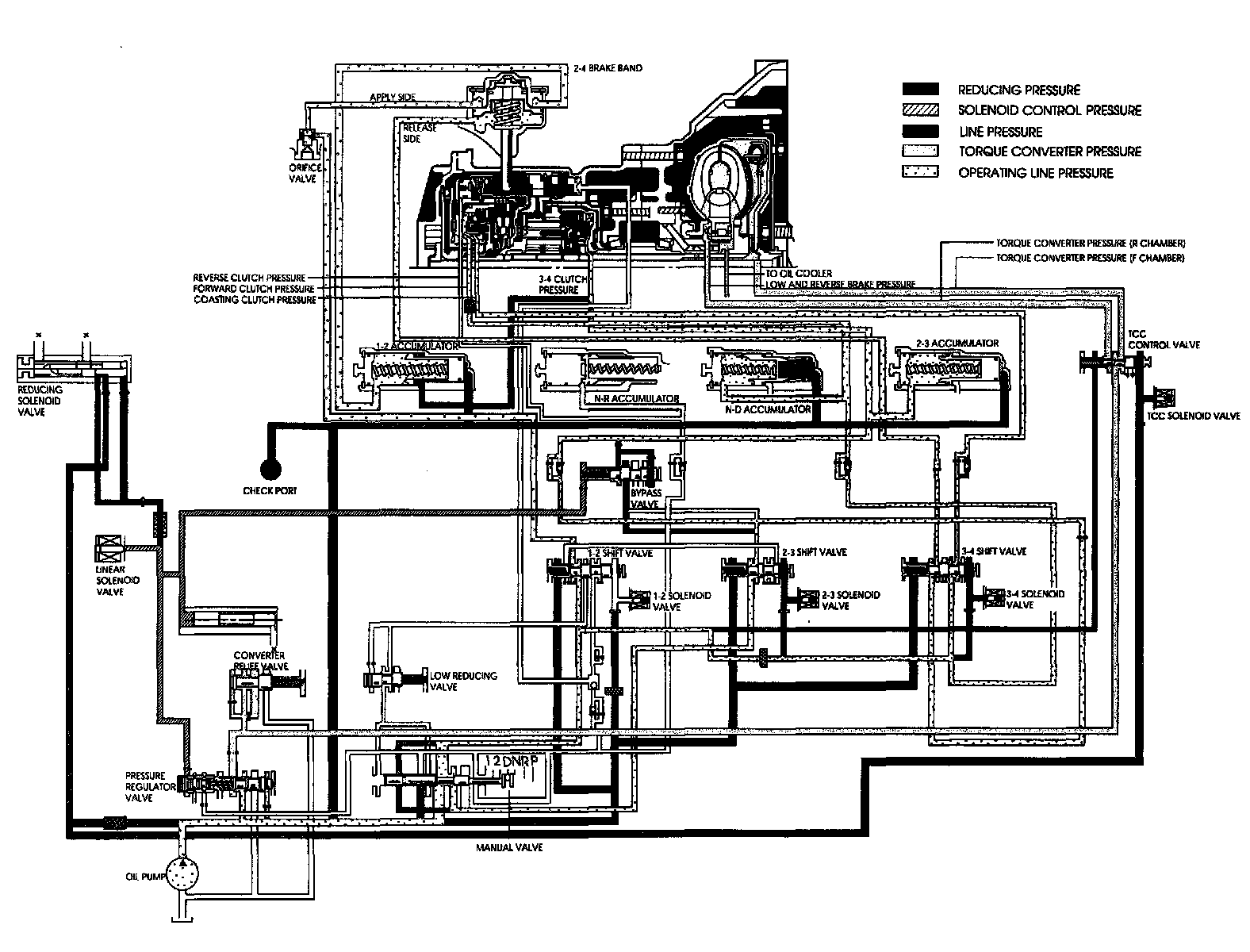

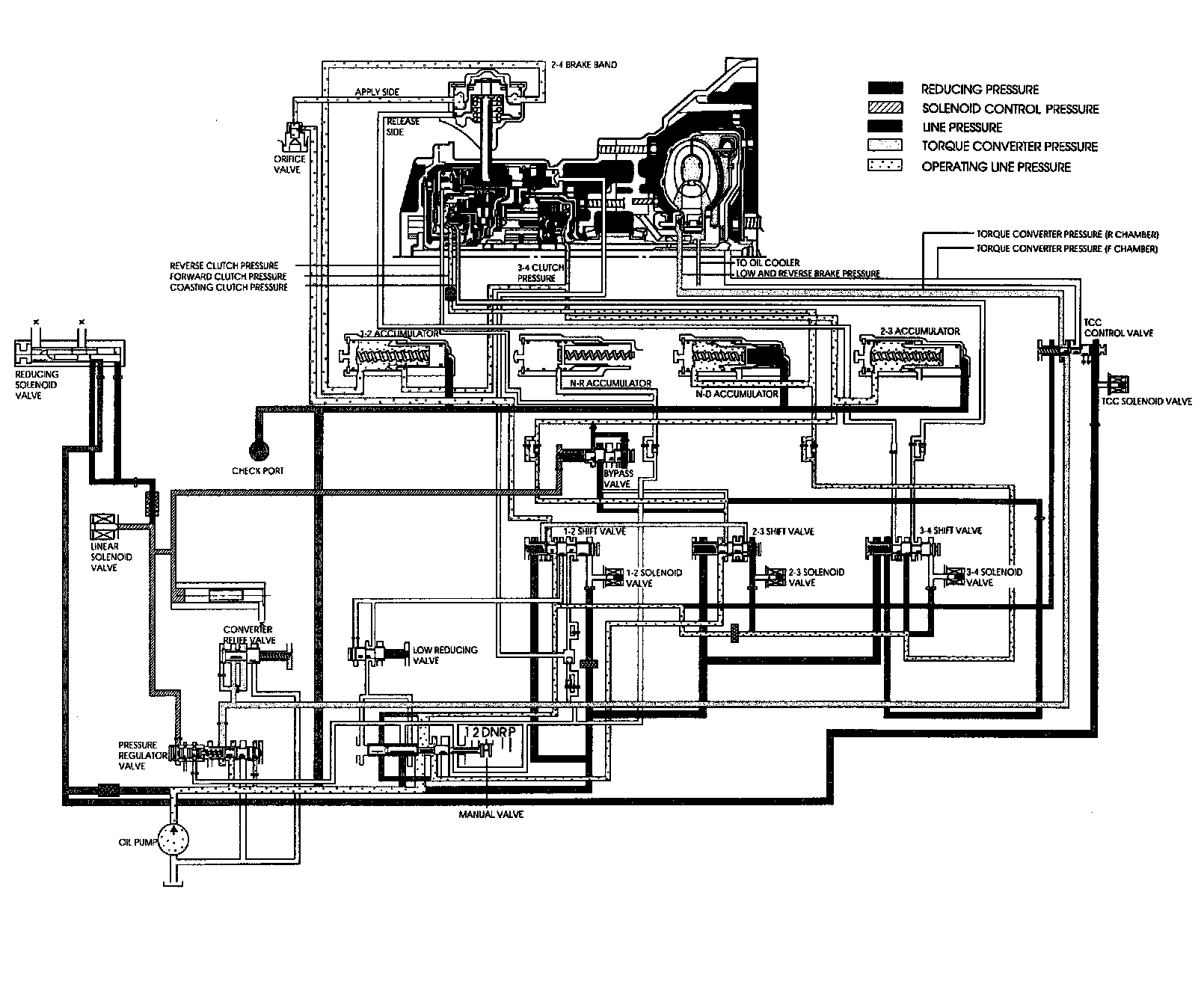

HYDRAULIC CIRCUIT (P RANGE):

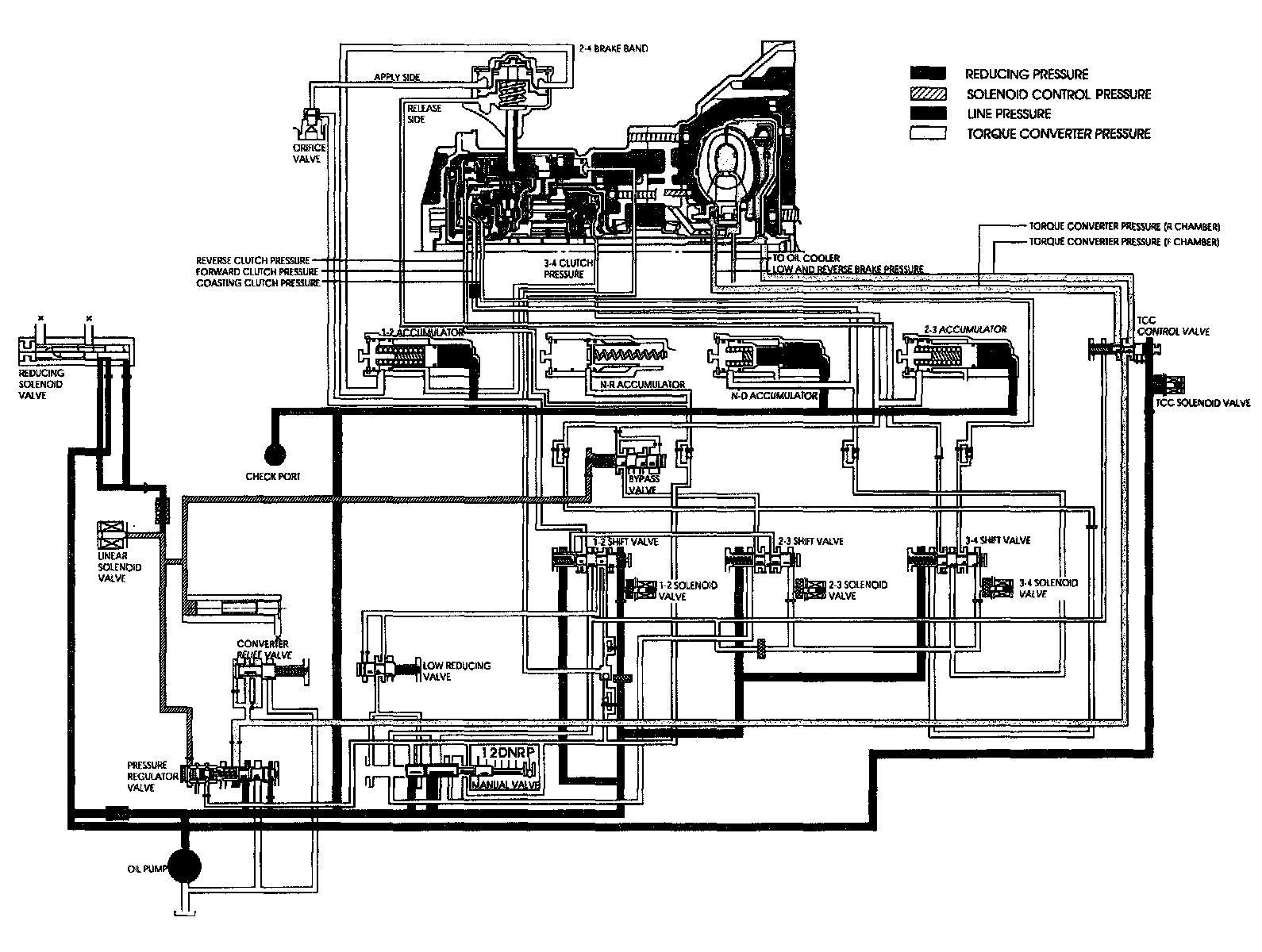

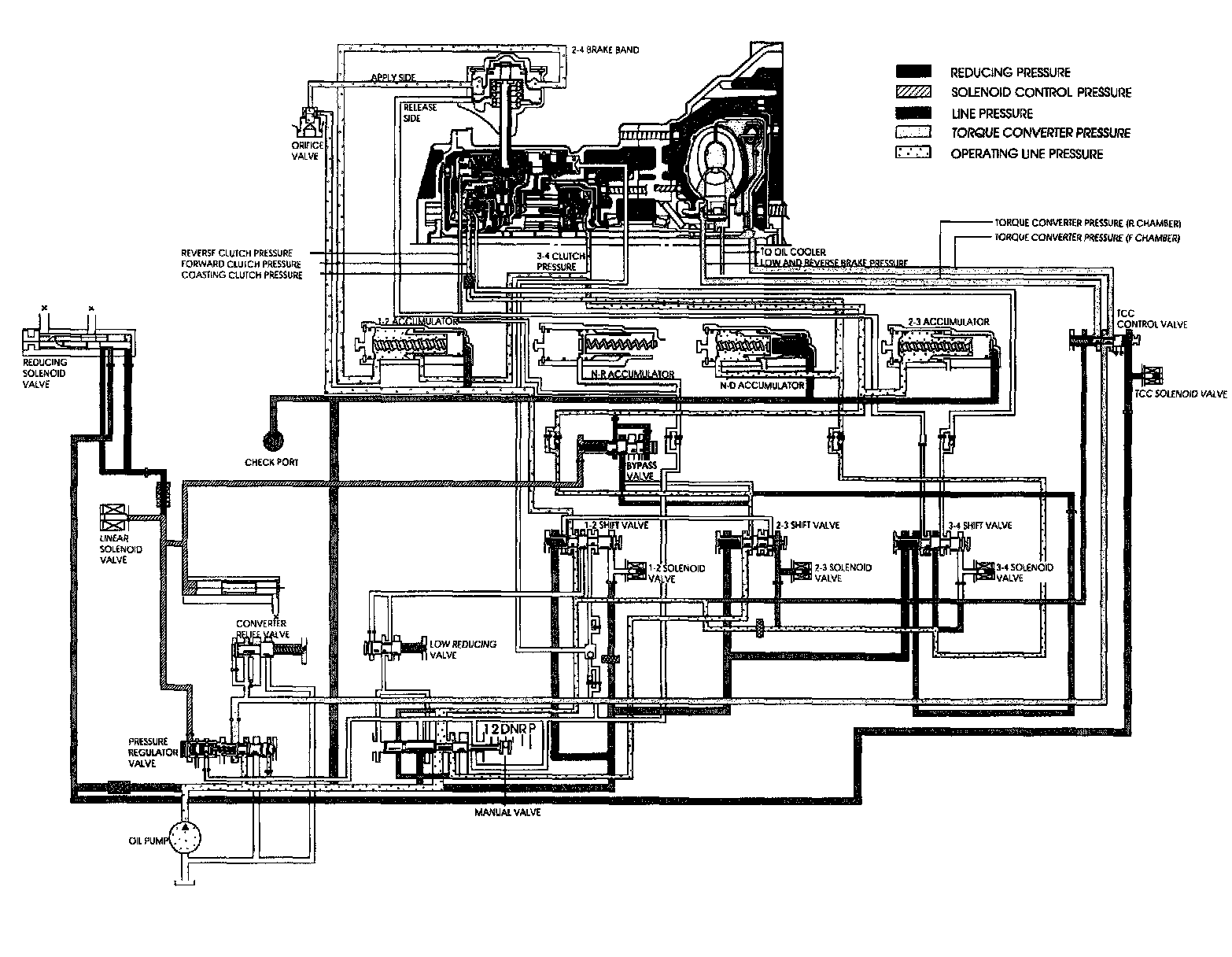

HYDRAULIC CIRCUIT (R RANGE):

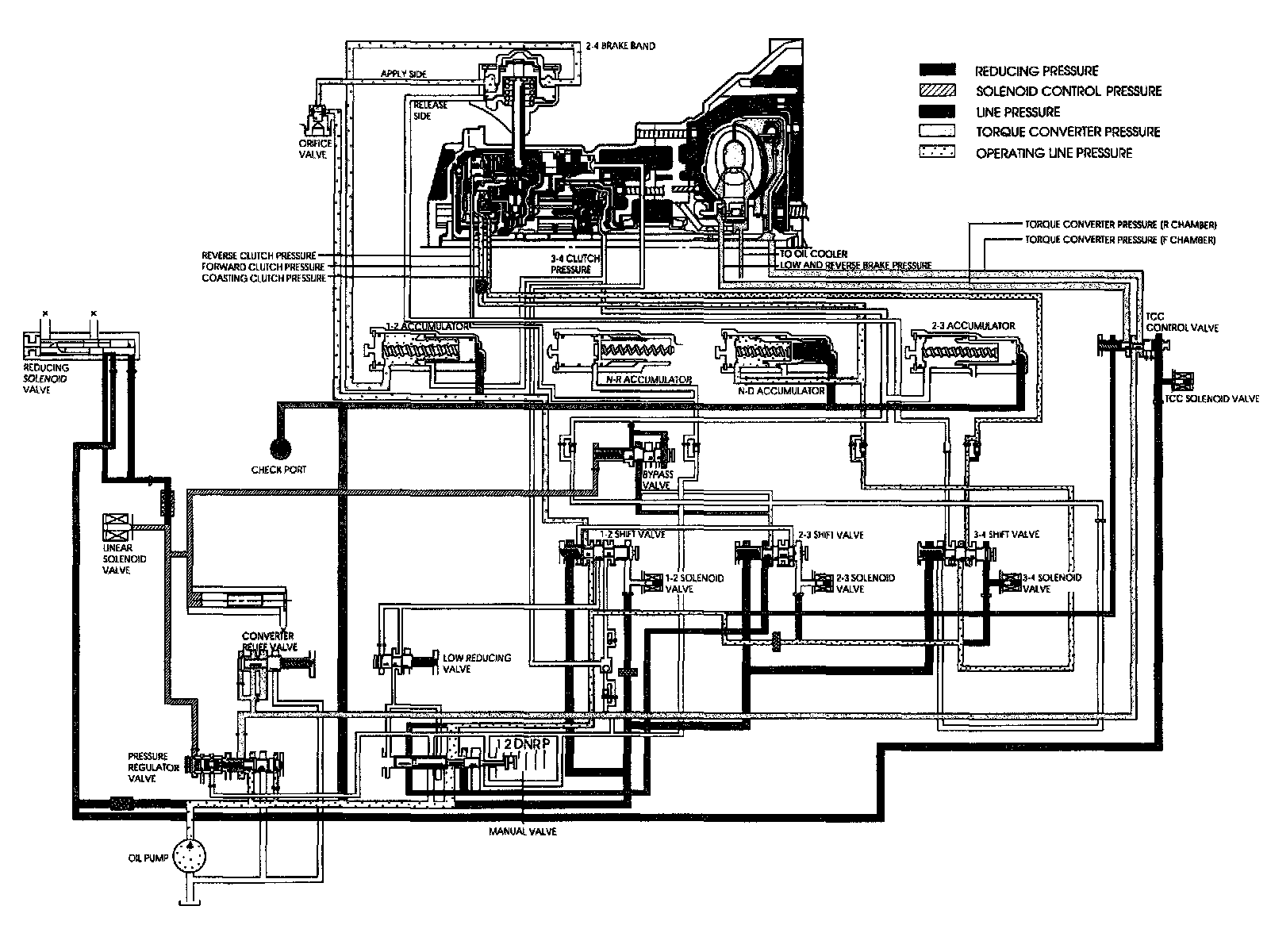

HYDRAULIC CIRCUIT (N RANGE):

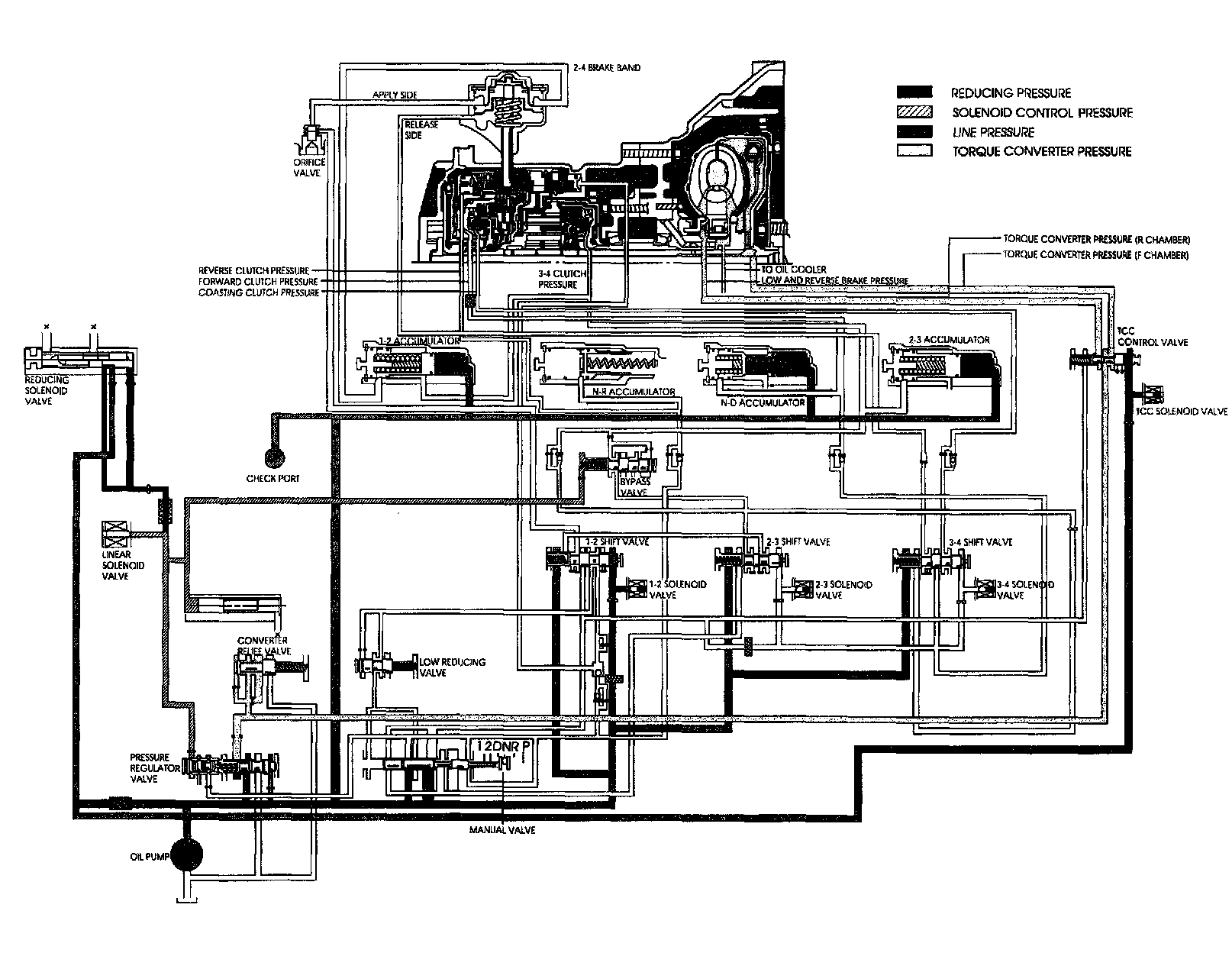

HYDRAULIC CIRCUIT (D RANGE: 1ST GEAR):

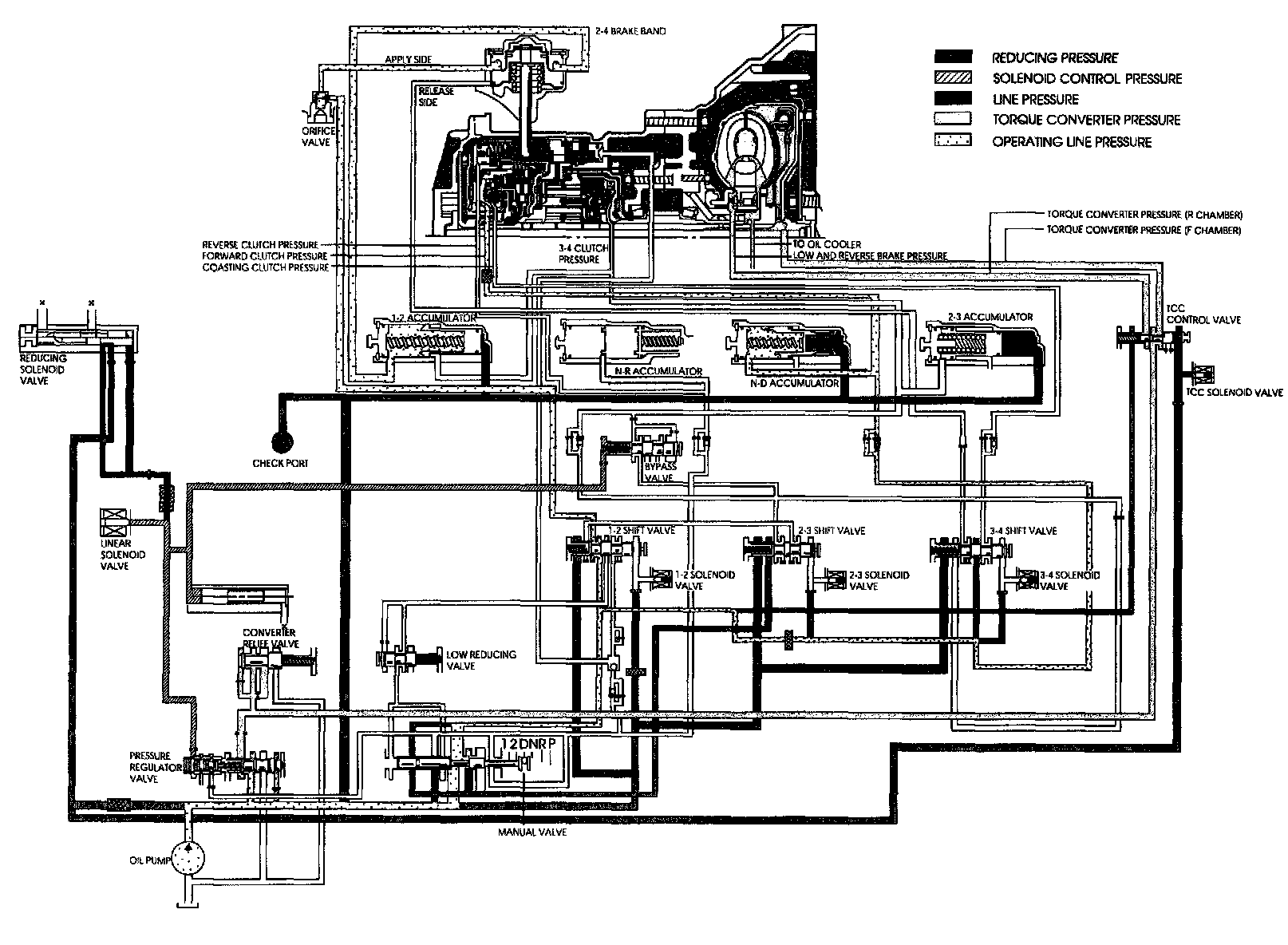

HYDRAULIC CIRCUIT (D RANGE: 2ND GEAR):

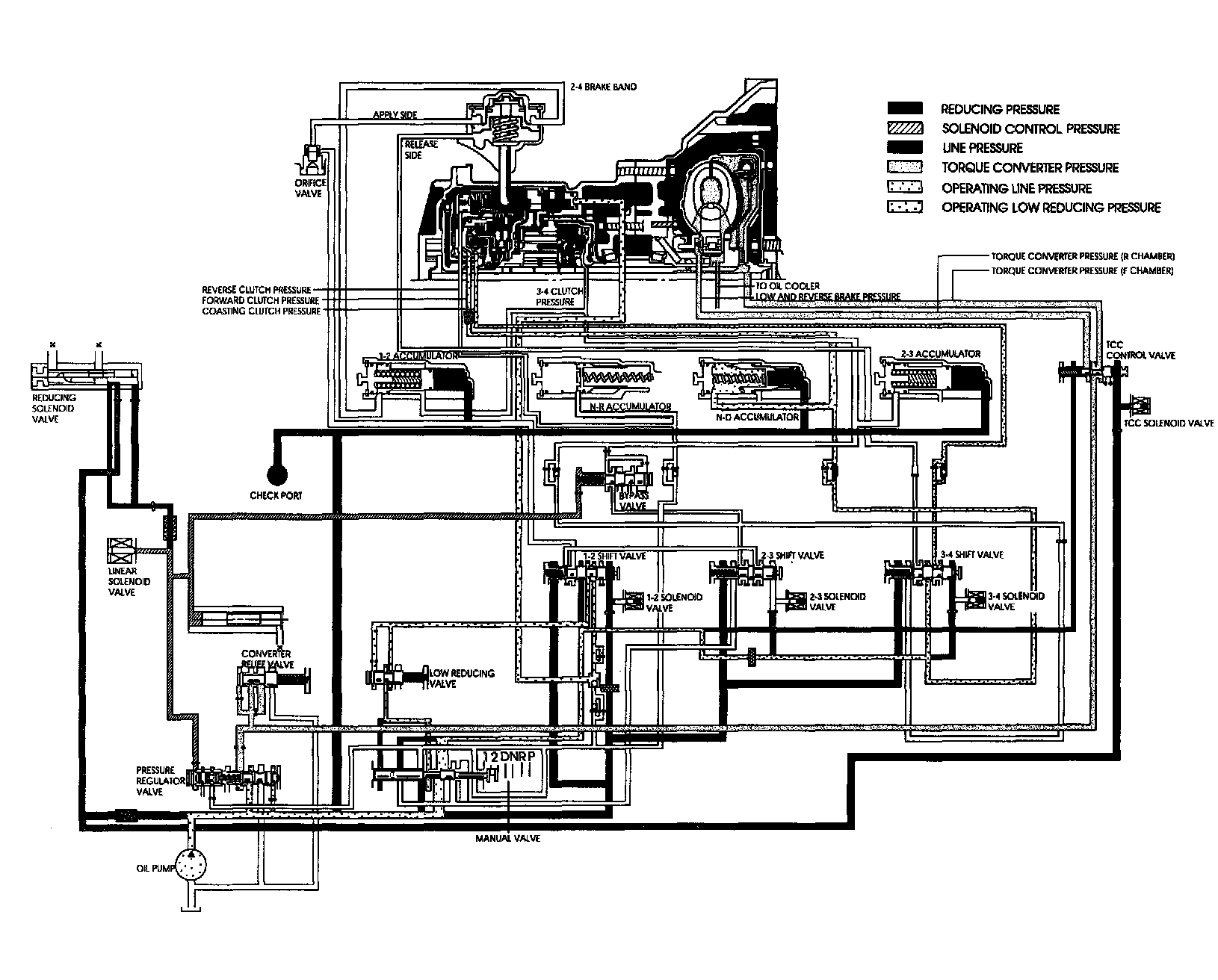

HYDRAULIC CIRCUIT (D RANGE: 3RD GEAR):

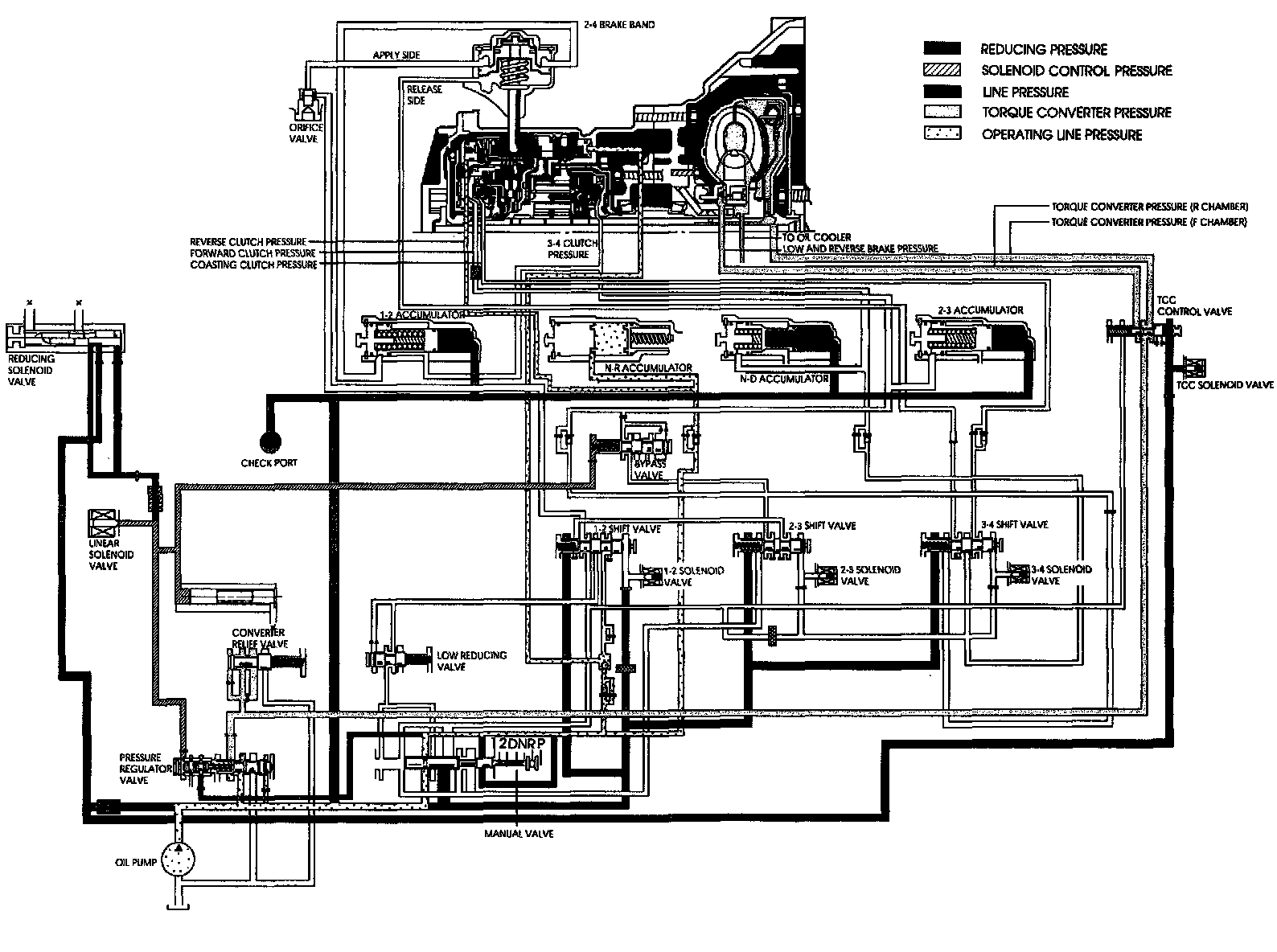

HYDRAULIC CIRCUIT (D RANGE: O/D GEAR CONVERTER OFF):

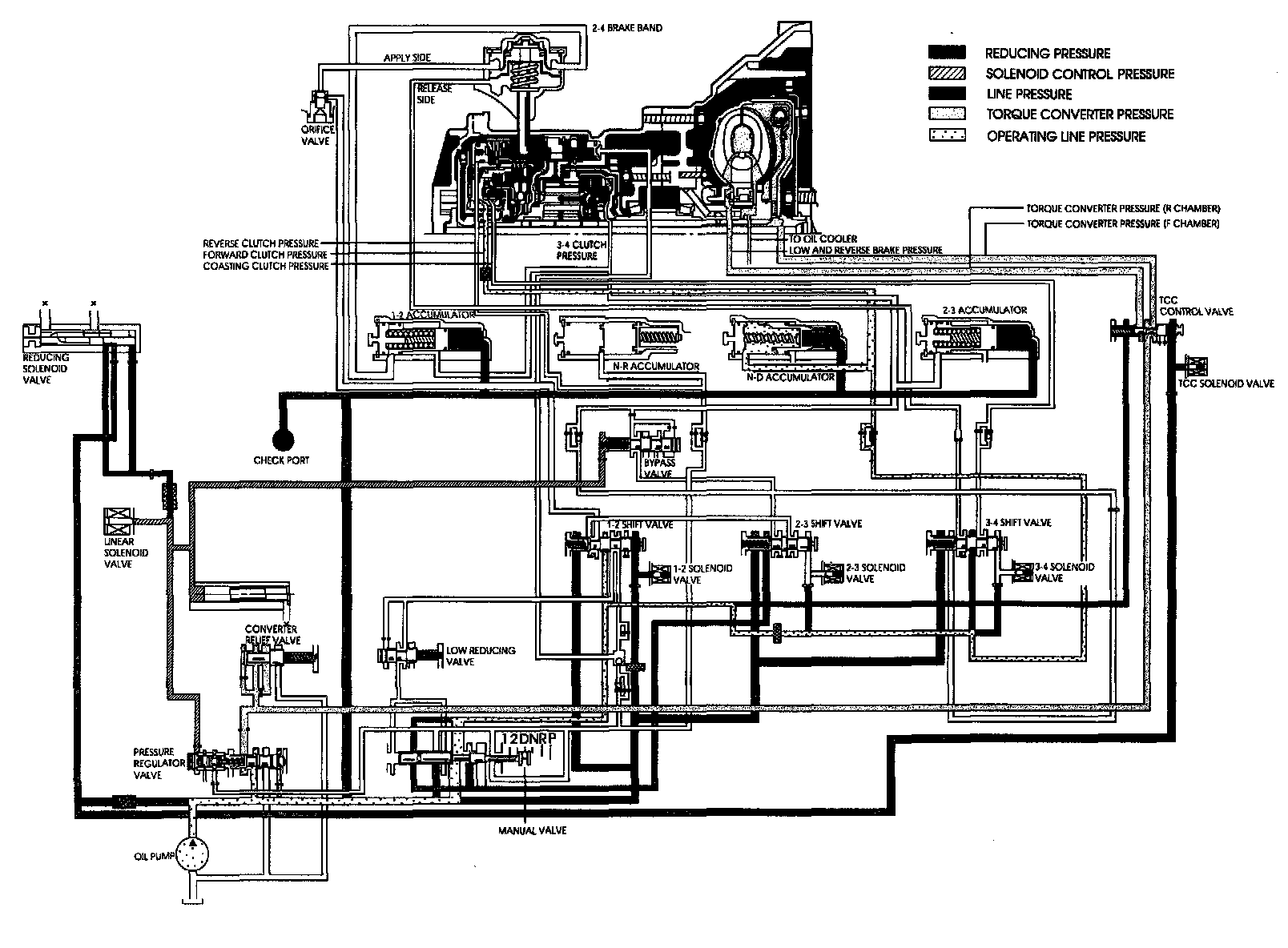

HYDRAULIC CIRCUIT (D RANGE: O/D GEAR TORQUE CONVERTER CLUTCH ON):

HYDRAULIC CIRCUIT (2ND GEAR):

HYDRAULIC CIRCUIT (1 RANGE):
