System Specifications

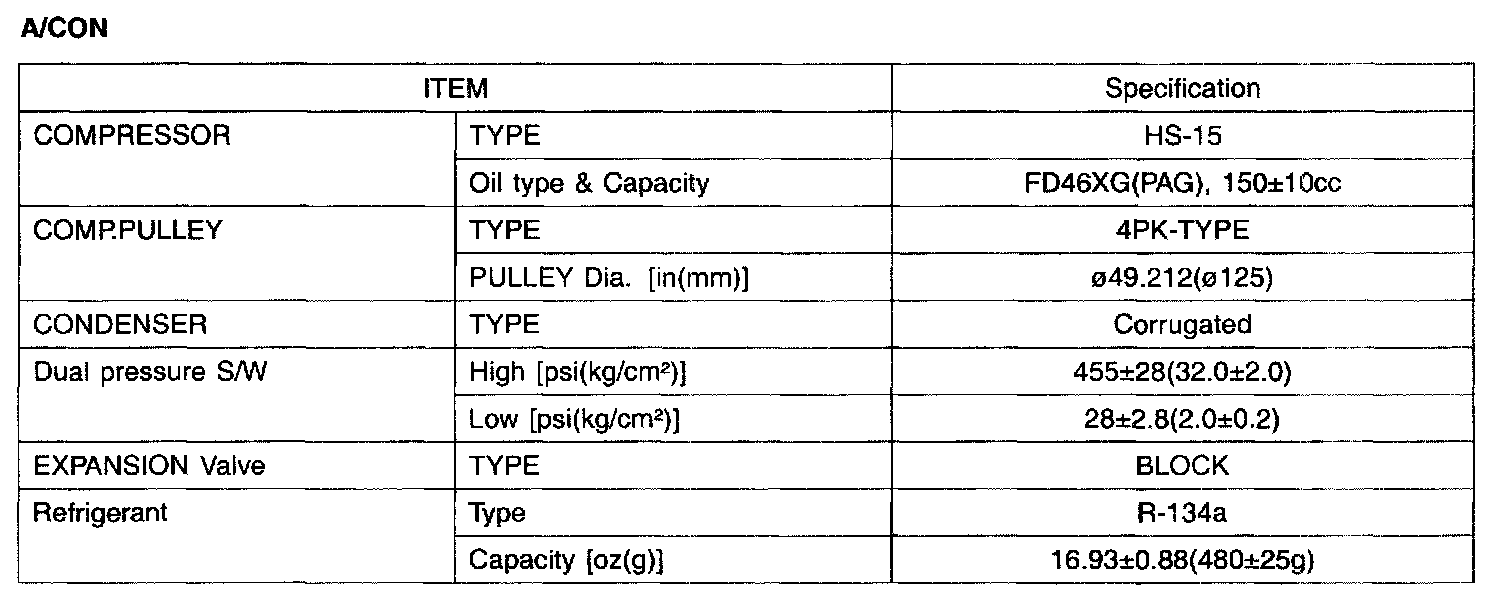

Specification - A/CON:

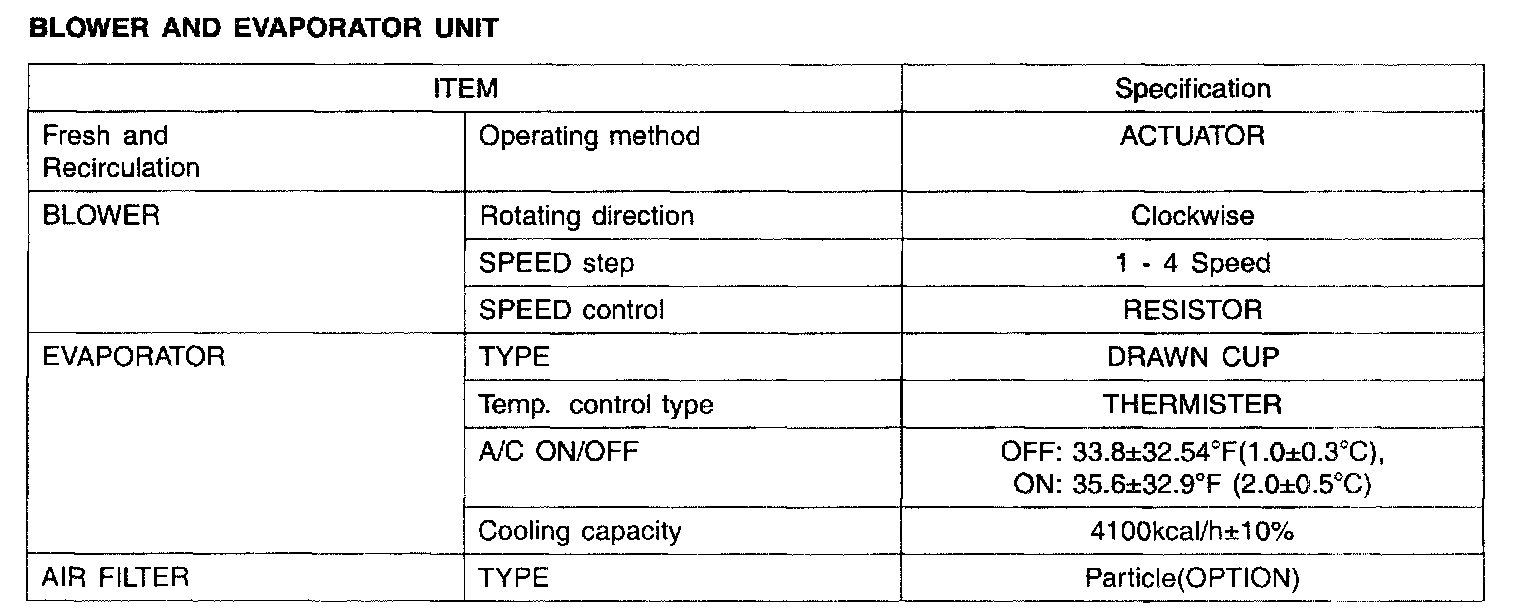

Specification - Blower And Evaporator Unit:



Heater Unit:
