System Specifications

SPECIFICATIONS

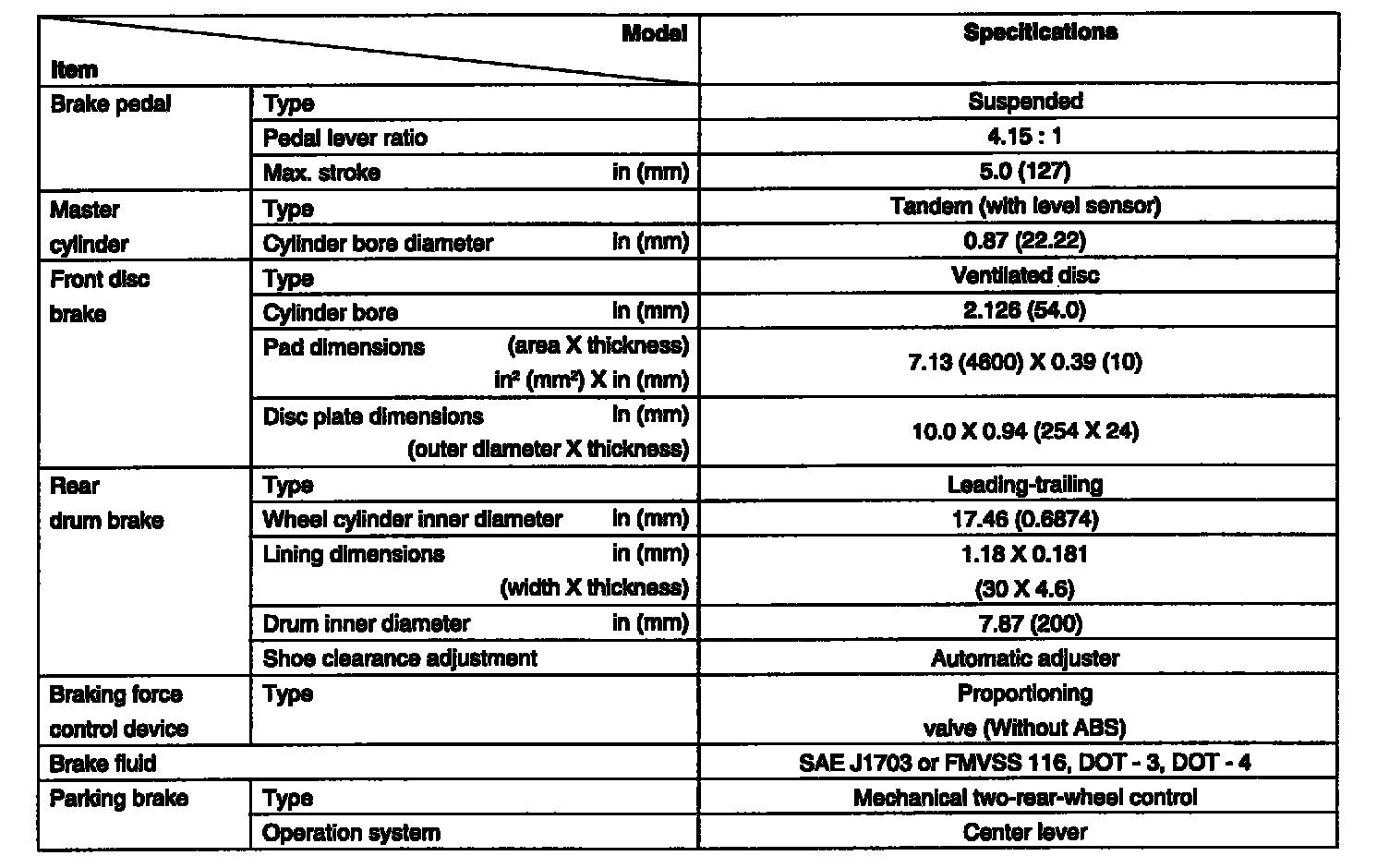

Standards Table


Front brakes, Rotor





1. Measure thickness of disc plate.
Standard: 0.94 inch (24 mm)
Minimum: 0.86 inch (22 mm)





2. Measure runout at 0.32 - 0.47 inch (8 - 12 mm) inside from outer edge of contact surface of disc pad.
Runout: 0.002 inch (0.06 mm) Max.


Rear brakes, Drum





1. Measure the inside diameter of the brake drum using Brake Drum Micrometer or equivalent.

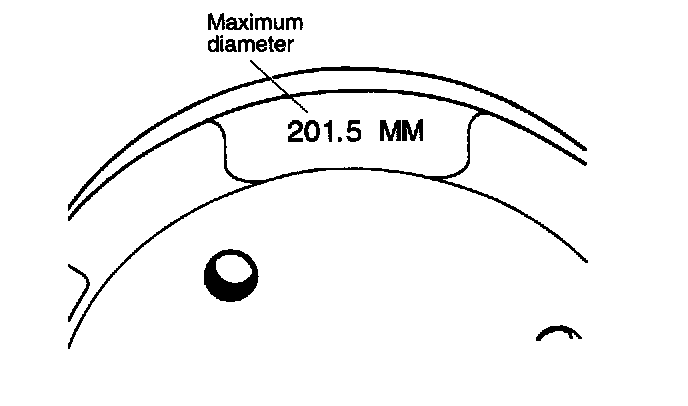

2. The standard inner drum diameter is 7.87 inches (200 mm). The maximum diameter is 7.91 inch (201 mm).
