Rear Lap / Shoulder Belt Assembly

Removal




1. Remove rear seat cushion.
2. Remove one bolt from lap belt mounting bracket.




3. Retract belt slowly as far as belt will go.

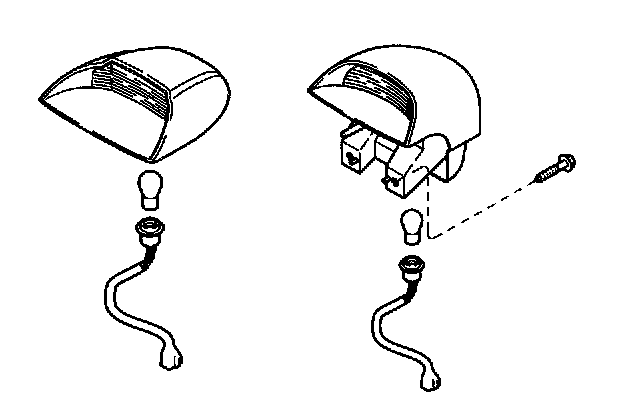

4. Remove high-mounted brake light assembly. Refer to "Exterior lights".

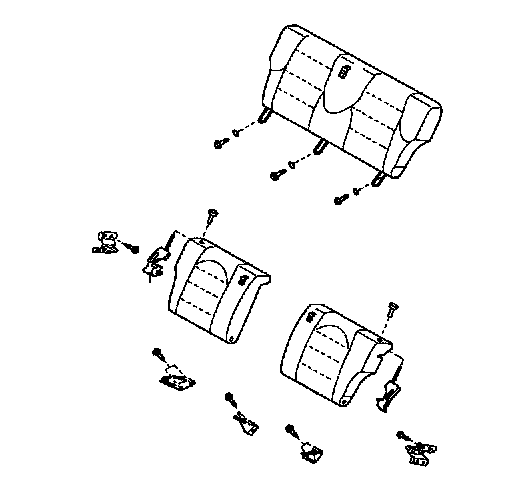

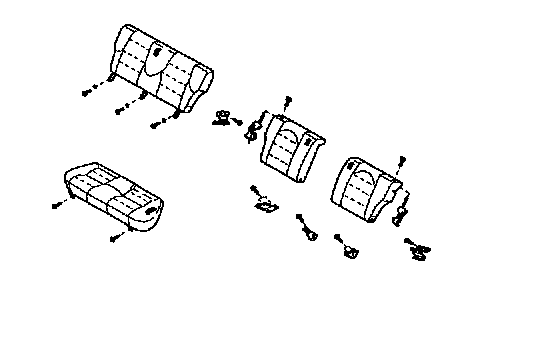

5. Remove three mounting bolts from rear seat back.
6. Remove seat back.

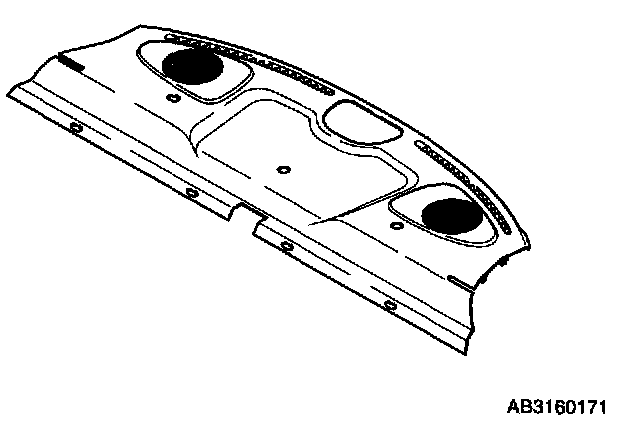

7. Remove package trim. Refer to "Trim".
8. Remove C-pillar trim. Refer to "Trim".
9. Remove two mounting bolt from belt retractor.
10. Remove seat belts retractor.

Installation
1. Install retractor mounting bolt and sheet metal screw.

Tighten mounting bolt to 29 - 58 lb-ft (38-78 N.m, 3.9 - 8.0 kg-m)

2. Install C-pillar trim.
3. Install package trim.
4. Install high-mounted brake light assembly.




5. Install rear seat back.
6. Install one bolt through lap belt mounting bracket.

Tighten mounting bucket bolt to 29 - 58 lb-ft (38 - 78 N.m, 3.9 - 8.0 kg-m)




7. Install rear seat cushion.
