Diagram B-1c

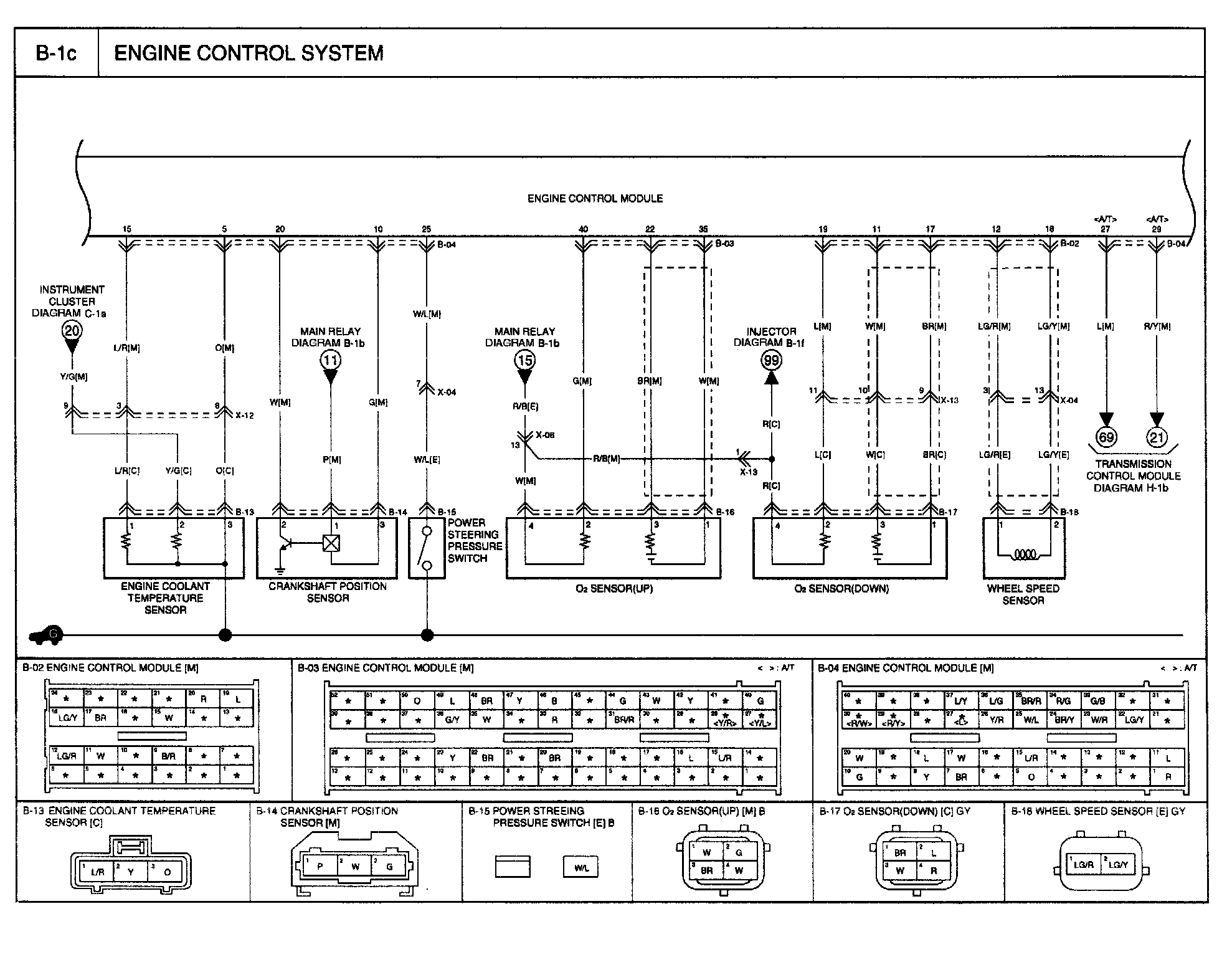

Diagram - B-1c:





Routing View B-1c:






Next diagram Diagram B-1d

Previous diagram Diagram B-1b

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
