Home >> Kia >> 2004 >> Rio L4-1.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> 5 - Won't Start, Cranks Normally

5 - Won't Start, Cranks Normally

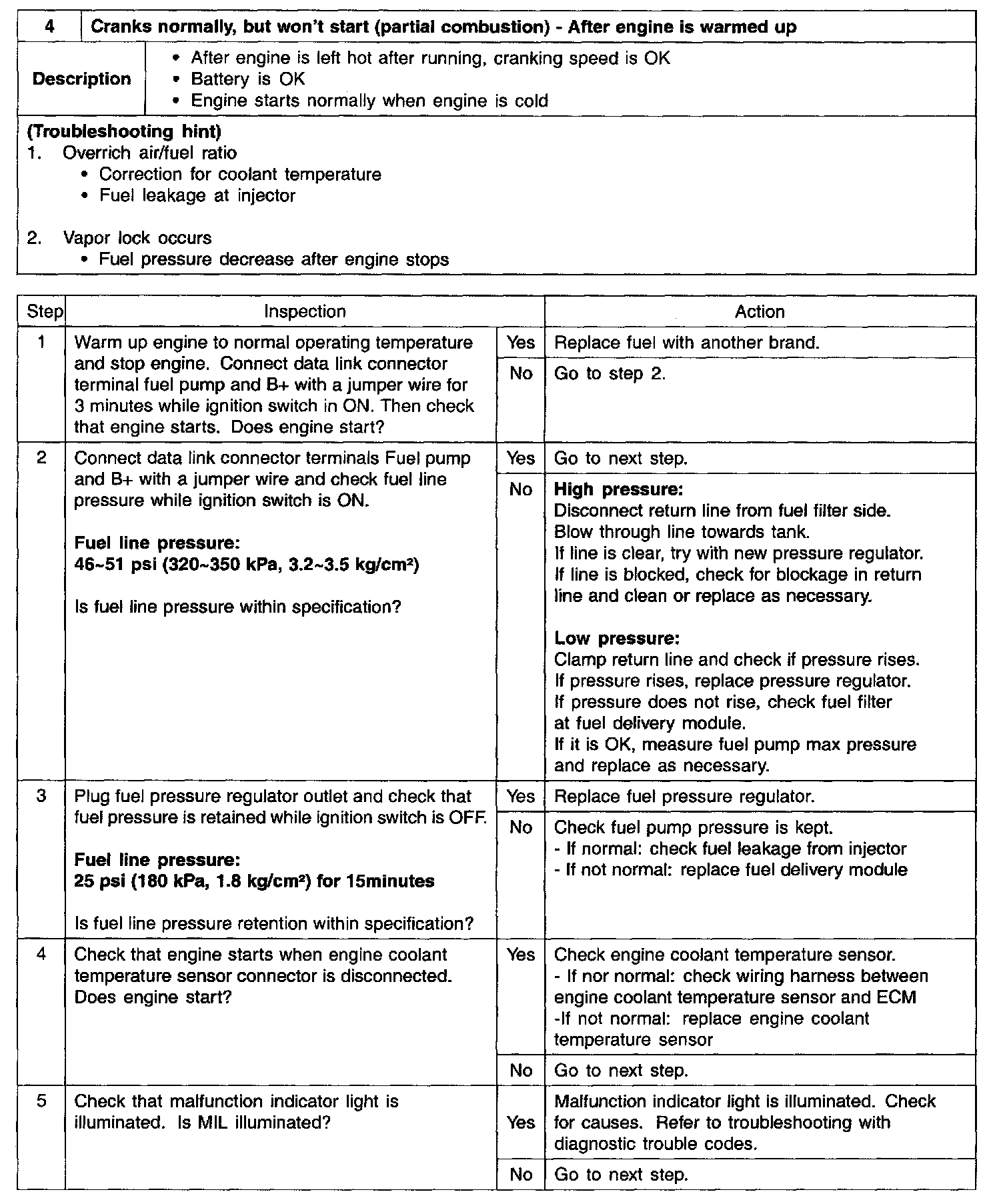

Step 1 - 5:

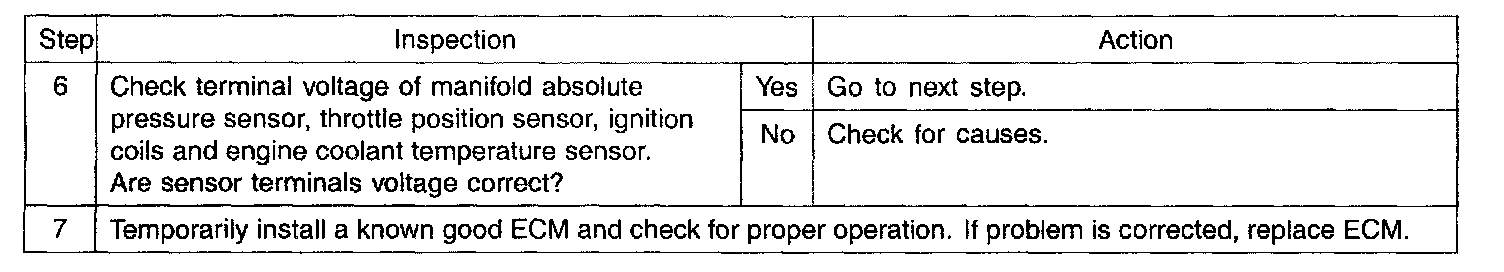

Step 6 - 7:
