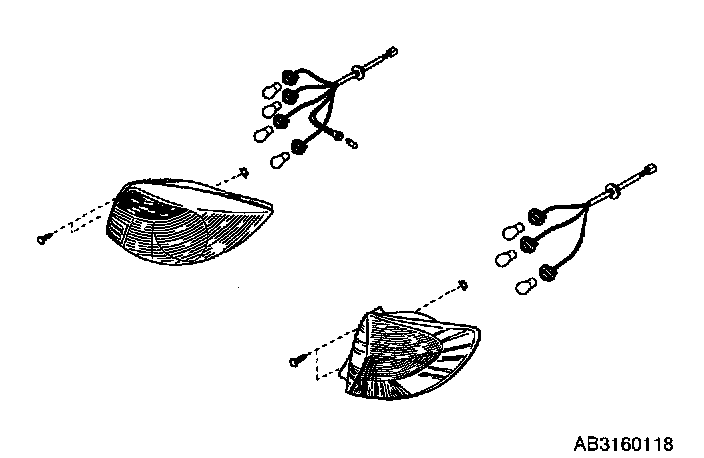

Rear Combination Light Assembly

Disassembly

All parts except the lens-housing assembly are interchangeable from left to right.
1. Remove bulb holder from lens-housing assembly.
2. Remove bulbs from bulb holder.
3. Remove gasket from studs and guide pins. Further disassembly or repair is not possible.

Re-assembly

All parts except the lens-housing assembly are interchangeable from left to right.
1. Install bulbs in bulb holder in accordance with instructions on bulb holder.
