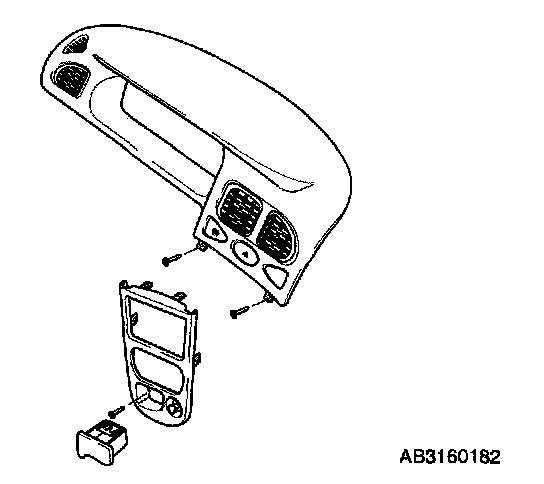

Instrument Cluster Trim

Removal
1. Disconnect negative battery cable.
2. Remove ashtray.




3. Remove center panel trim. Refer to "Center panel trim".
4. Remove two instrument cluster mounting screws.
5. Disconnect three connectors.
6. Remove trim.

Installation
1. Connect three switch connectors.
2. Place instrument cluster trim into place in front of instrument cluster.
3. Install two screws.
4. Install center panel trim. Refer to "Center panel Trim".
5. Connect negative battery cable.
