Malfunction Causes and Remedies

TROUBLESHOOTING

Before replacing or repairing air conditioning components, first determine if the malfunction is due to the refrigerant charge, air flow or compressor.

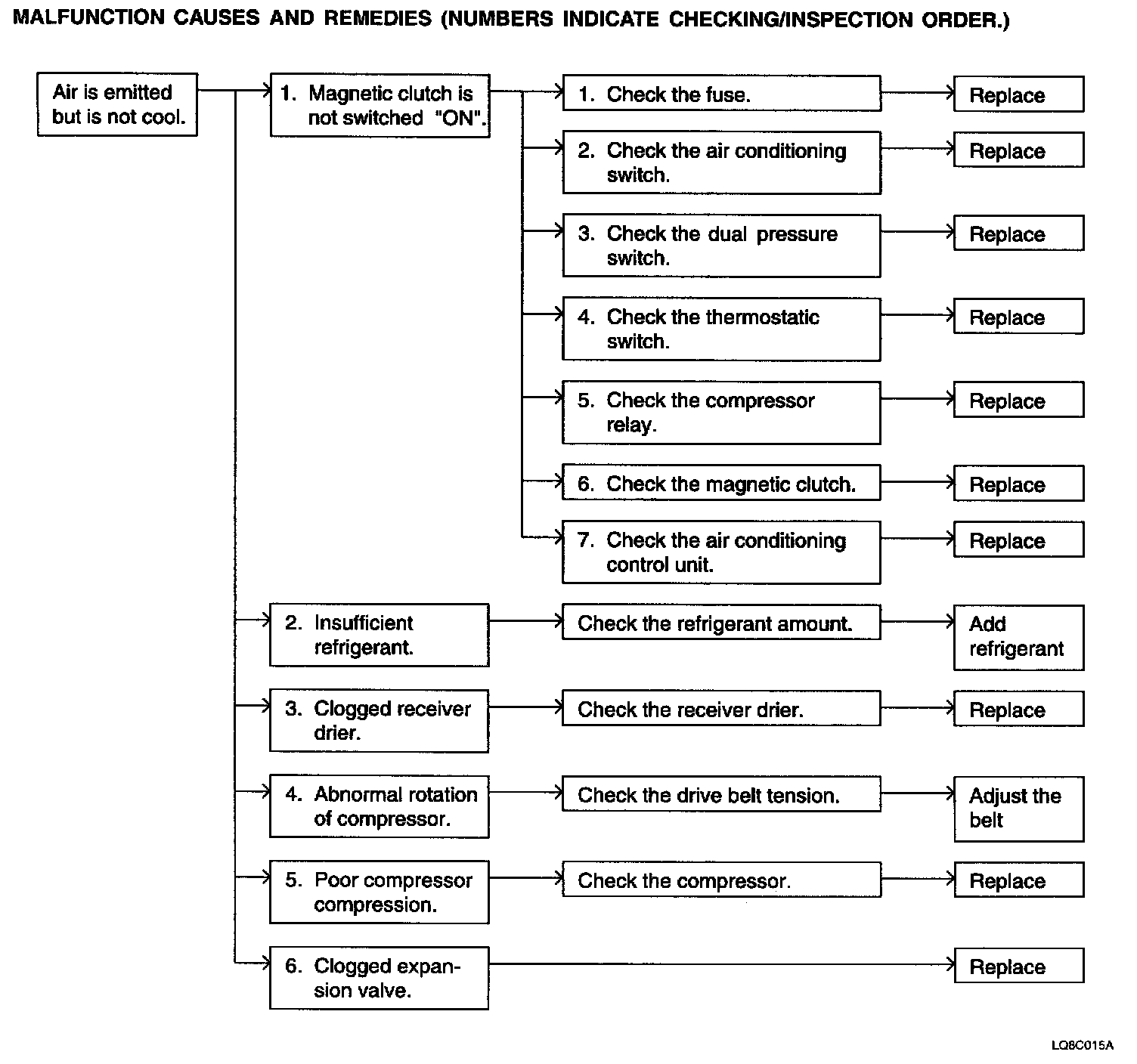

Part 1:

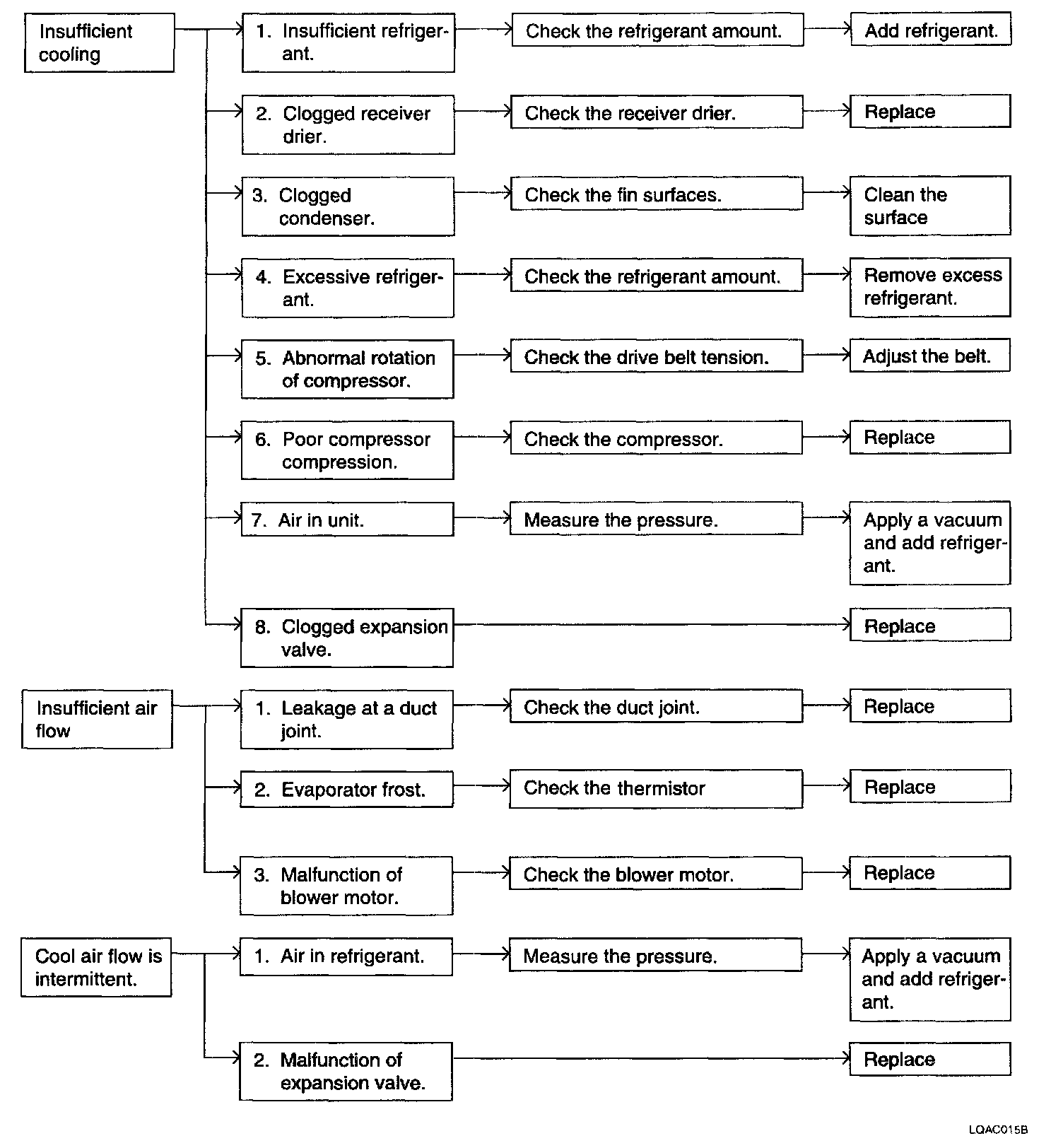

Part 2:

The diagnostic charts have been developed as a quick reference for determining the cause of the malfunction. If these charts do not satisfactorily describe the problem. After correcting the malfunction, check the complete system to ensure that performance is satisfactory.
