Home >> Kia >> 2004 >> Rio L4-1.6L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Tools and Equipment

Engine: Tools and Equipment

Part 1:




Part 2:




Part 3:

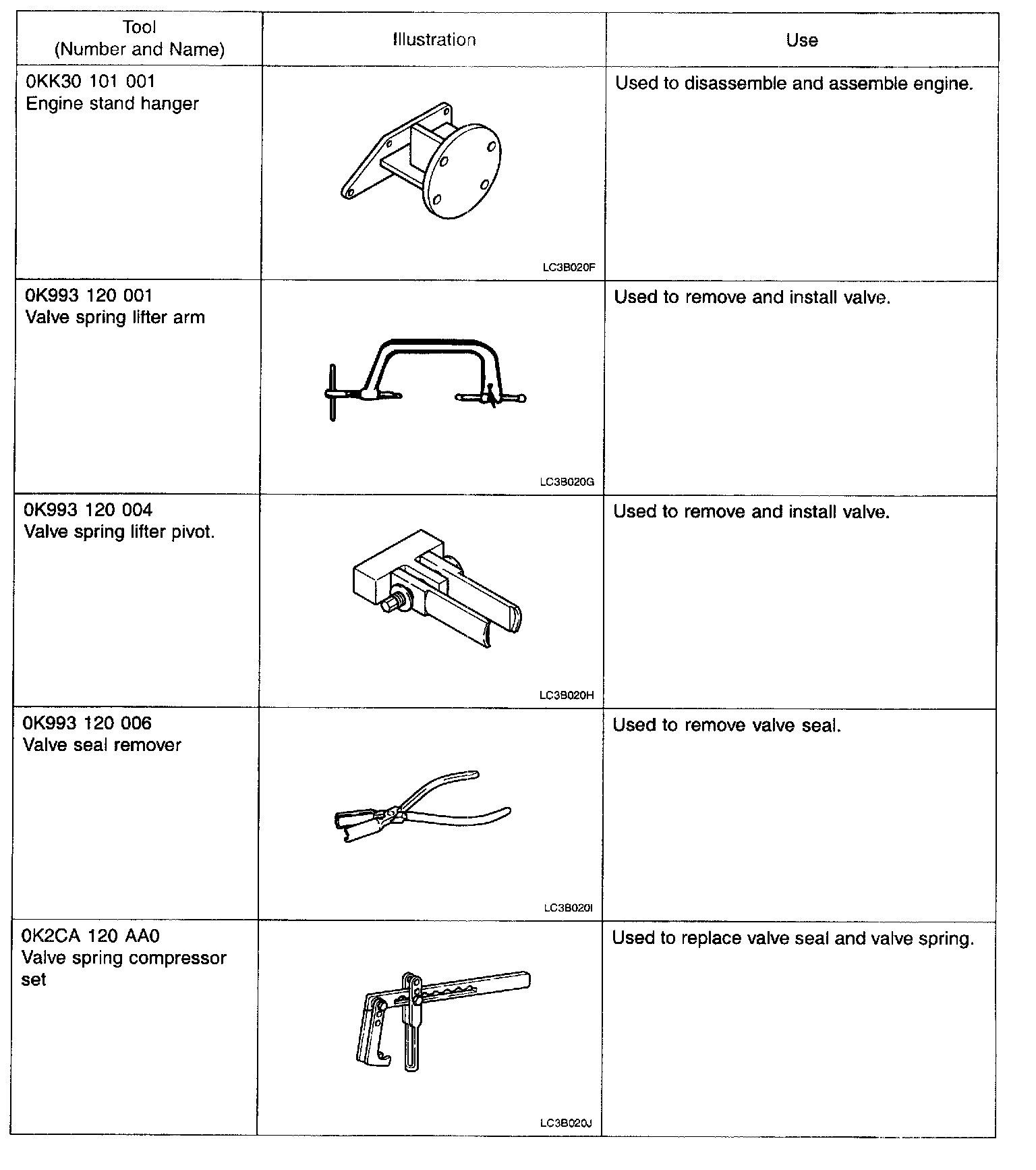

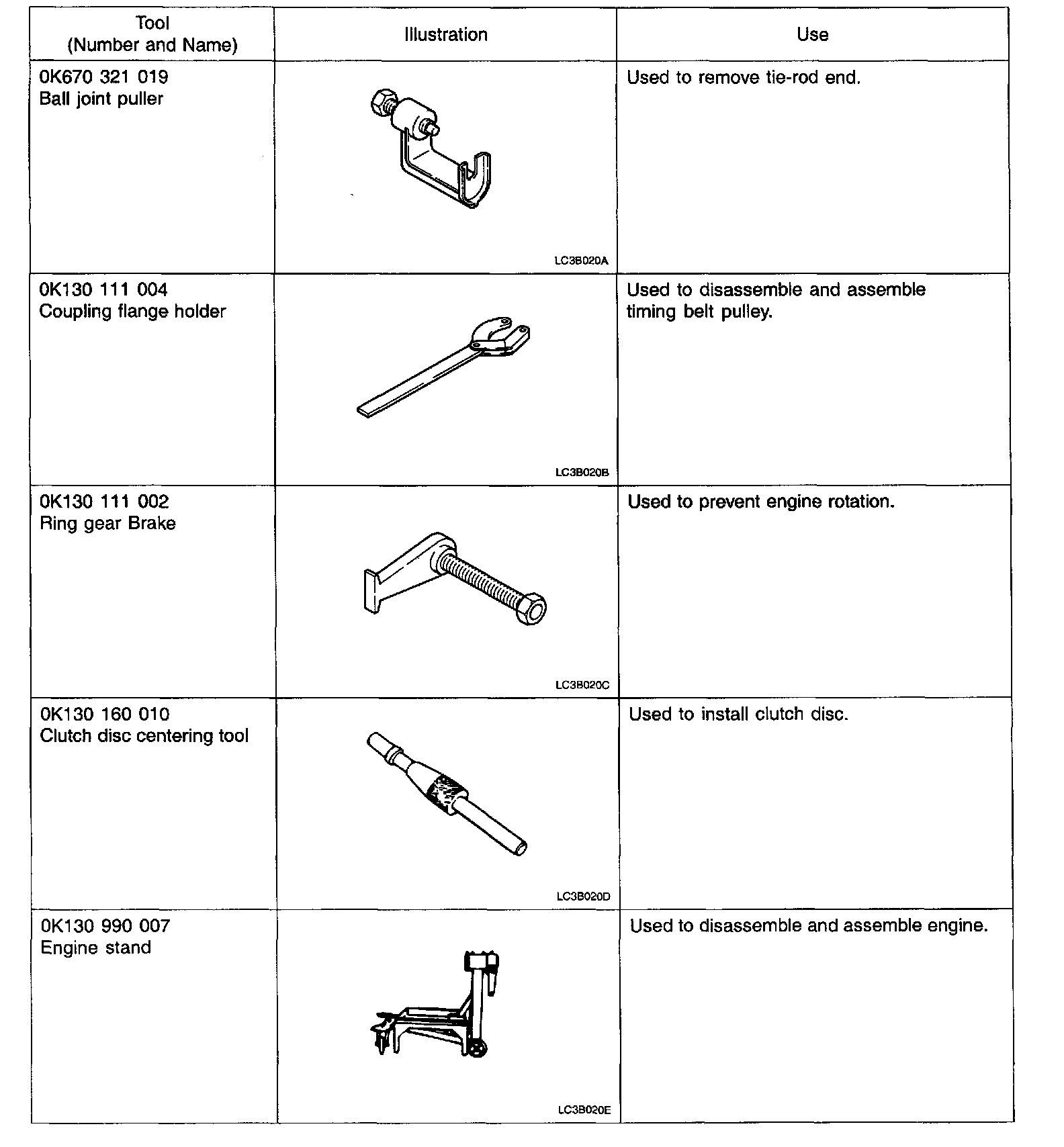

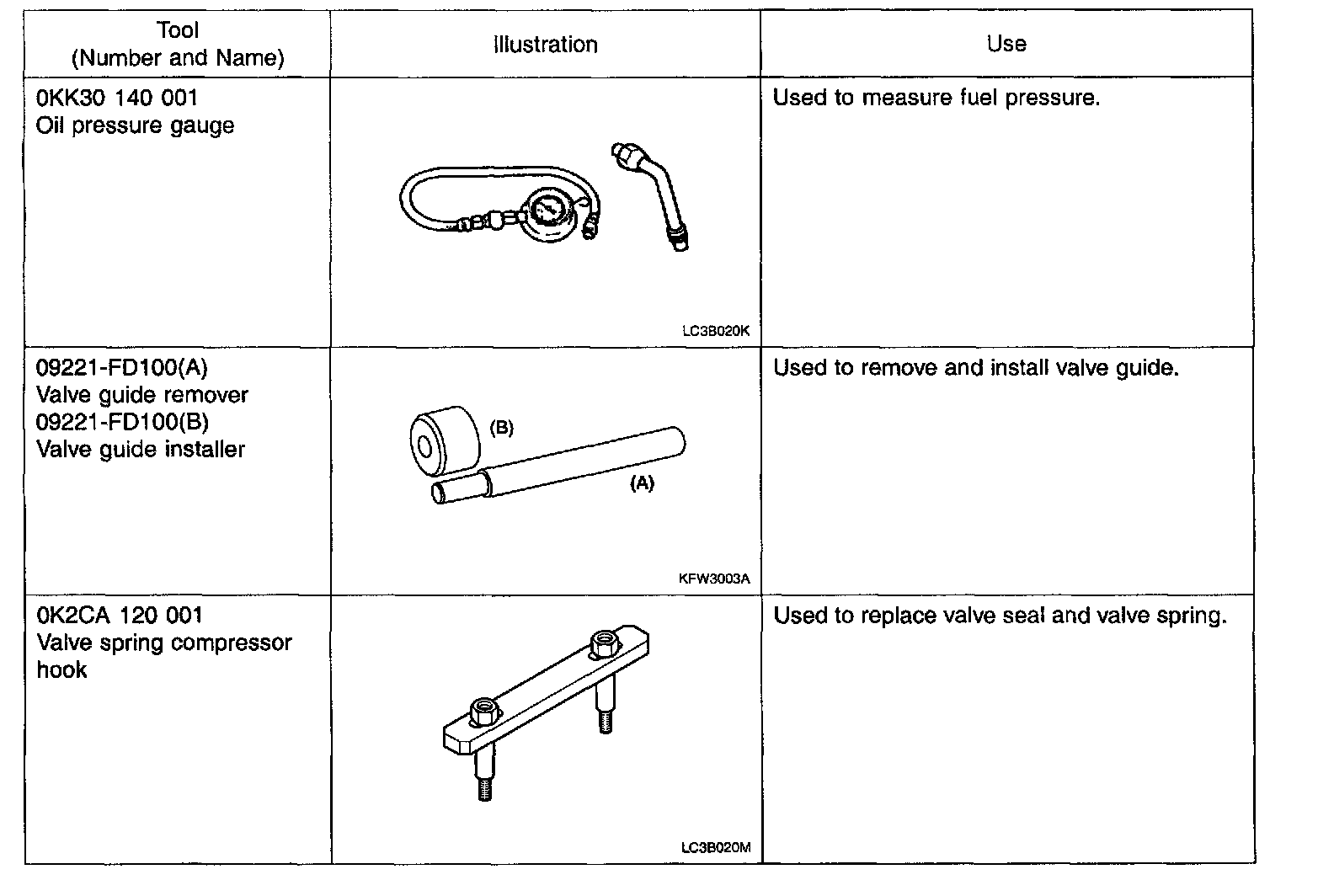

SPECIAL SERVICE TOOLS
