Oil Pan: Service and Repair

OIL PAN

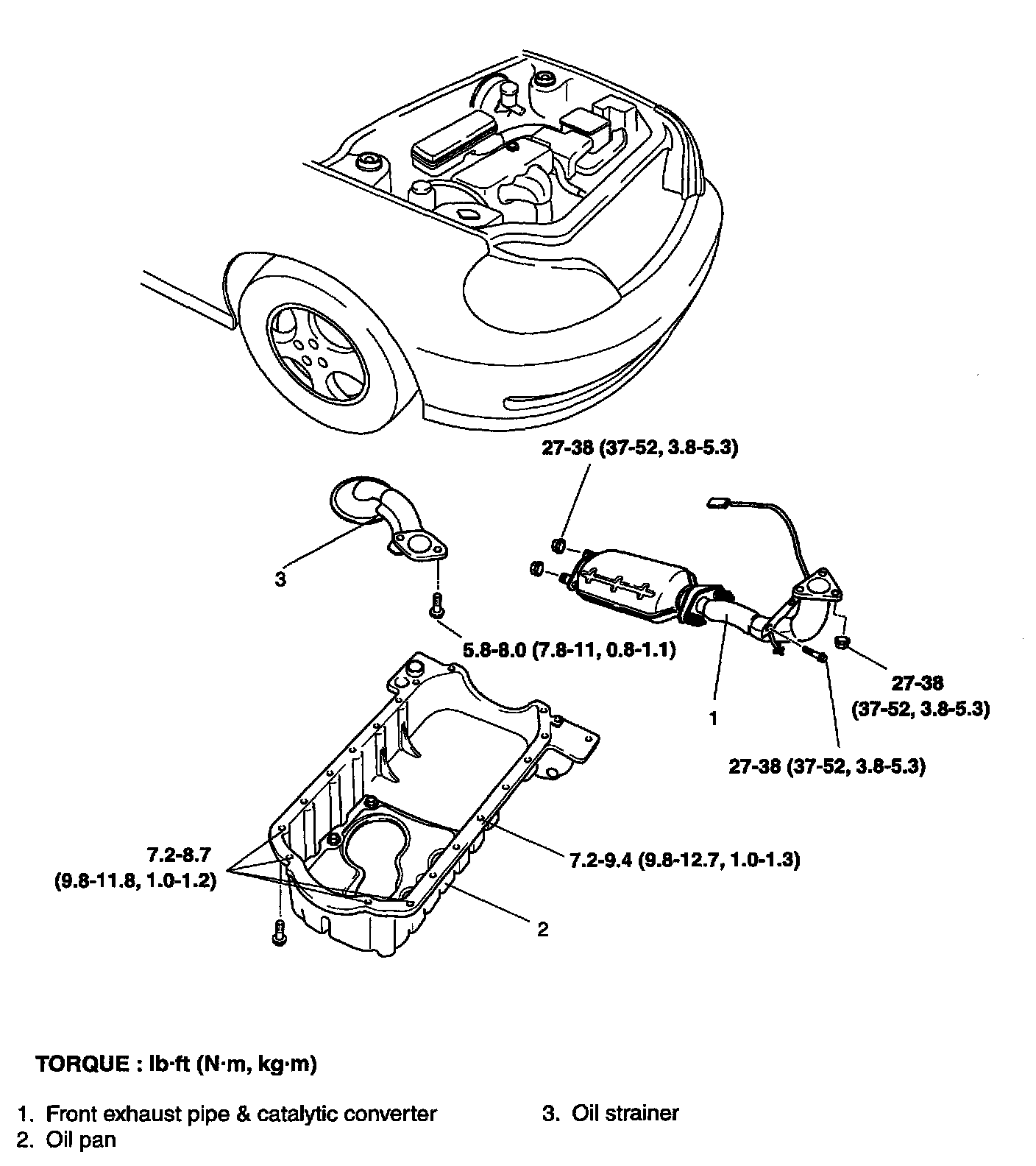

COMPONENT

INSTALLATION

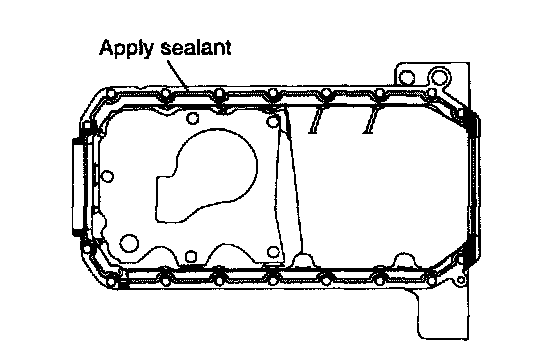

1. Apply continuous sealant to mating surface as shown illustration.
Sealant type: LOCTITE 5900
Bead width: 0.1575 inch (4 mm)

NOTE:
^ Clean the foreign material from mating surface before applying sealant.
^ Assembly procedure must be completed within 4 minutes after applying sealant.

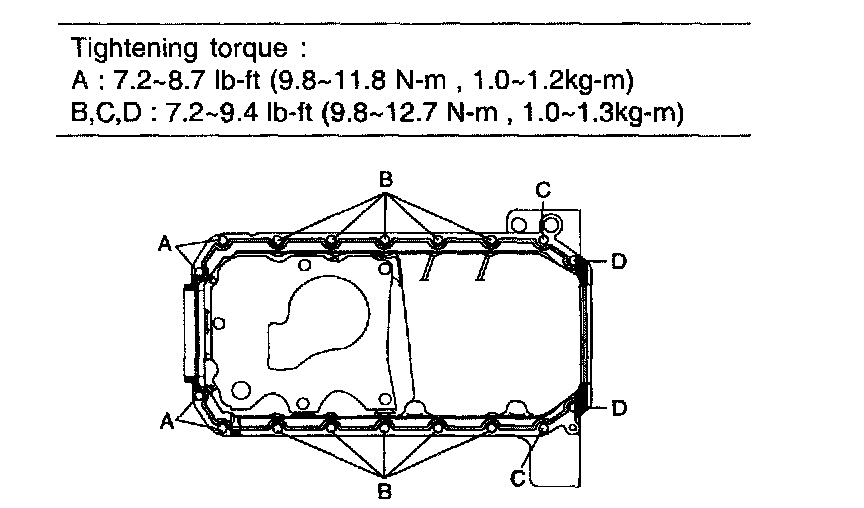

2. Install the oil pan.
