Cylinder Block Assembly: Specifications

General Specifications
Clearance between ring and ring end
Standard: 0.0012 - 0.0028 inch (0.03 - 0.07 mm)
Maximum: 0.0039 inch (0.10 mm)
Connecting rod bearing clearance.
Oil clearance: 0.0010 - 0.0021 inch (0.026 - 0.054 mm)
Maximum: 0.004 inch (0.10 mm)
Connecting rod side clearance
Side clearance: 0.0044 - 0.0103 inch (0.110 - 0.262 mm)
Maximum: 0.012 inch (0.30 mm)
Main bearing oil clearance
Oil Clearance: 0.0007 - 0.0014 inch (0.018 - 0.036 mm)
Maximum: 0.0031 inch (0.08 mm)
Crankshaft end play
End Play: 0.0032 - 0.0111 inch (0.080 - 0.262 mm)
timing belt guide plate and crankshaft pulley 9.0 - 12.6 ft. lbs. (12.3 - 17.2 Nm, 1.3 - 1.8 kgf-cm)

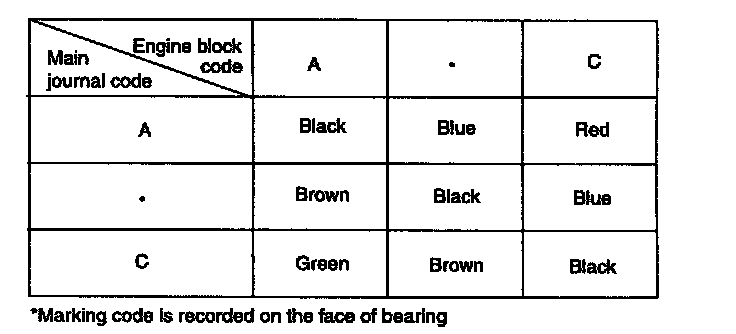

Standard main bearing selection

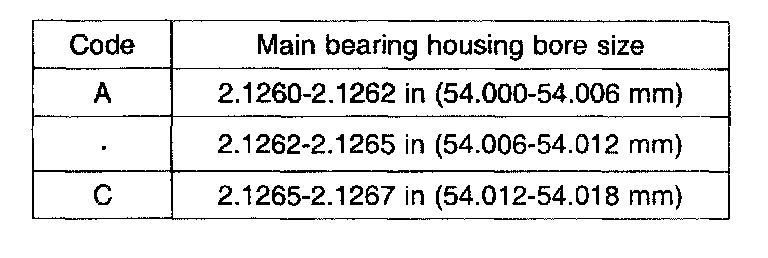

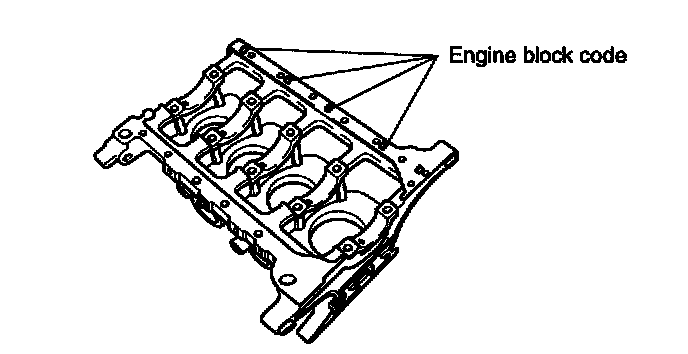

Main bearing housing bore size

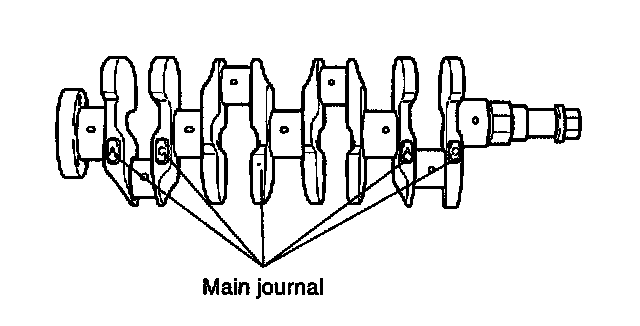

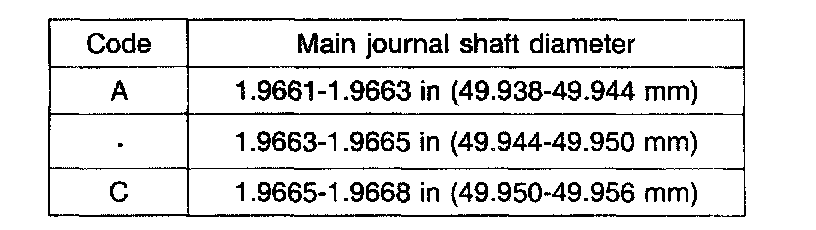

Main journal shaft diameter

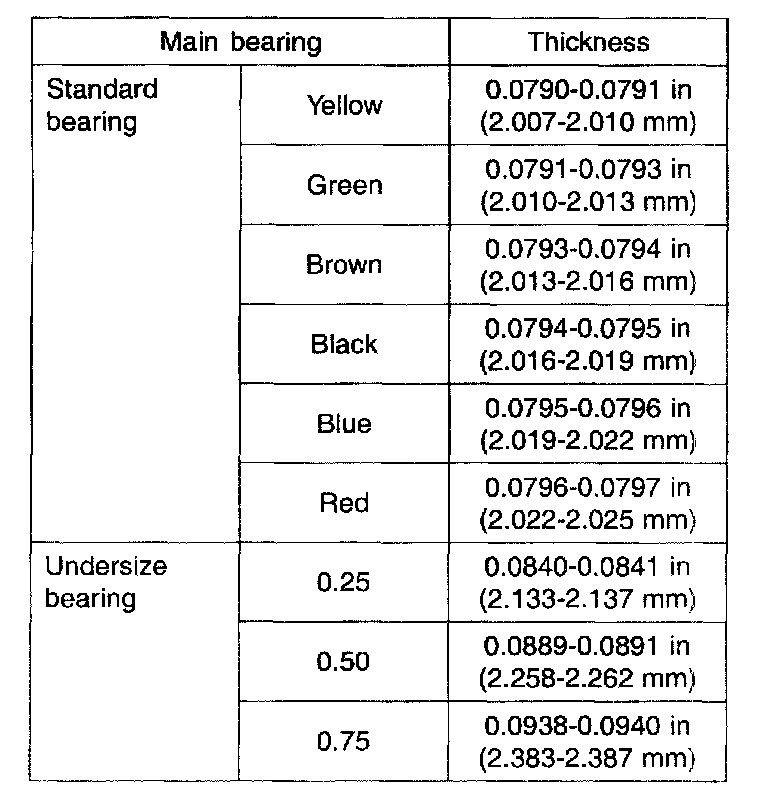

Main bearing thickness

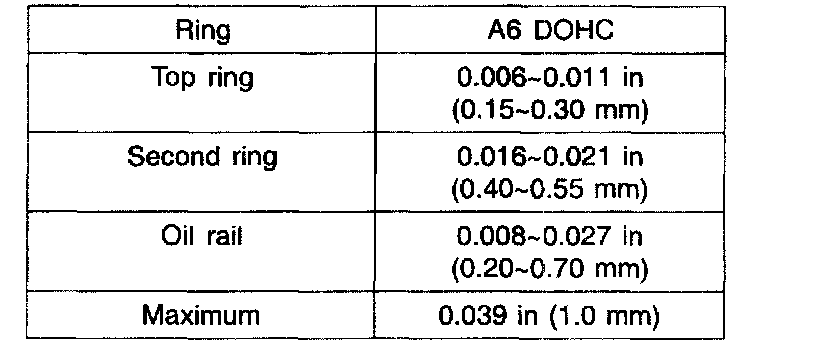

END GAP CLEARANCE

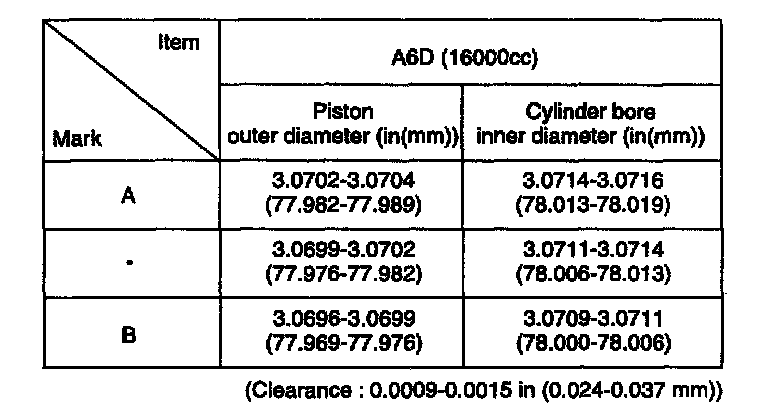

PISTON OUTER DIAMETER AND CYLINDER BORE INNER DIAMETER

Tightening Torque

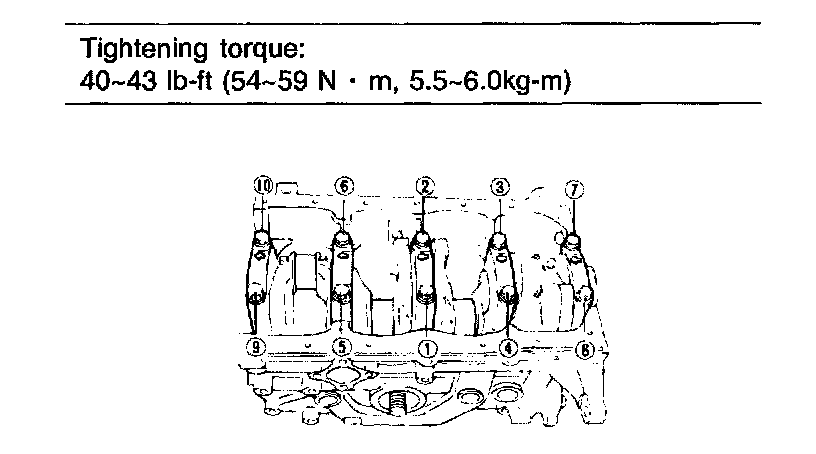

Main bearing cap bolts 40 - 43 ft. lbs. (54 - 59 Nm, 5.5 -6.0 kgf-cm)
Connecting rod caps 22 - 24 ft. lbs. (29 - 34 Nm, 3.0 - 3.5 kgf-cm)
