Brakes and Traction Control: Testing and Inspection

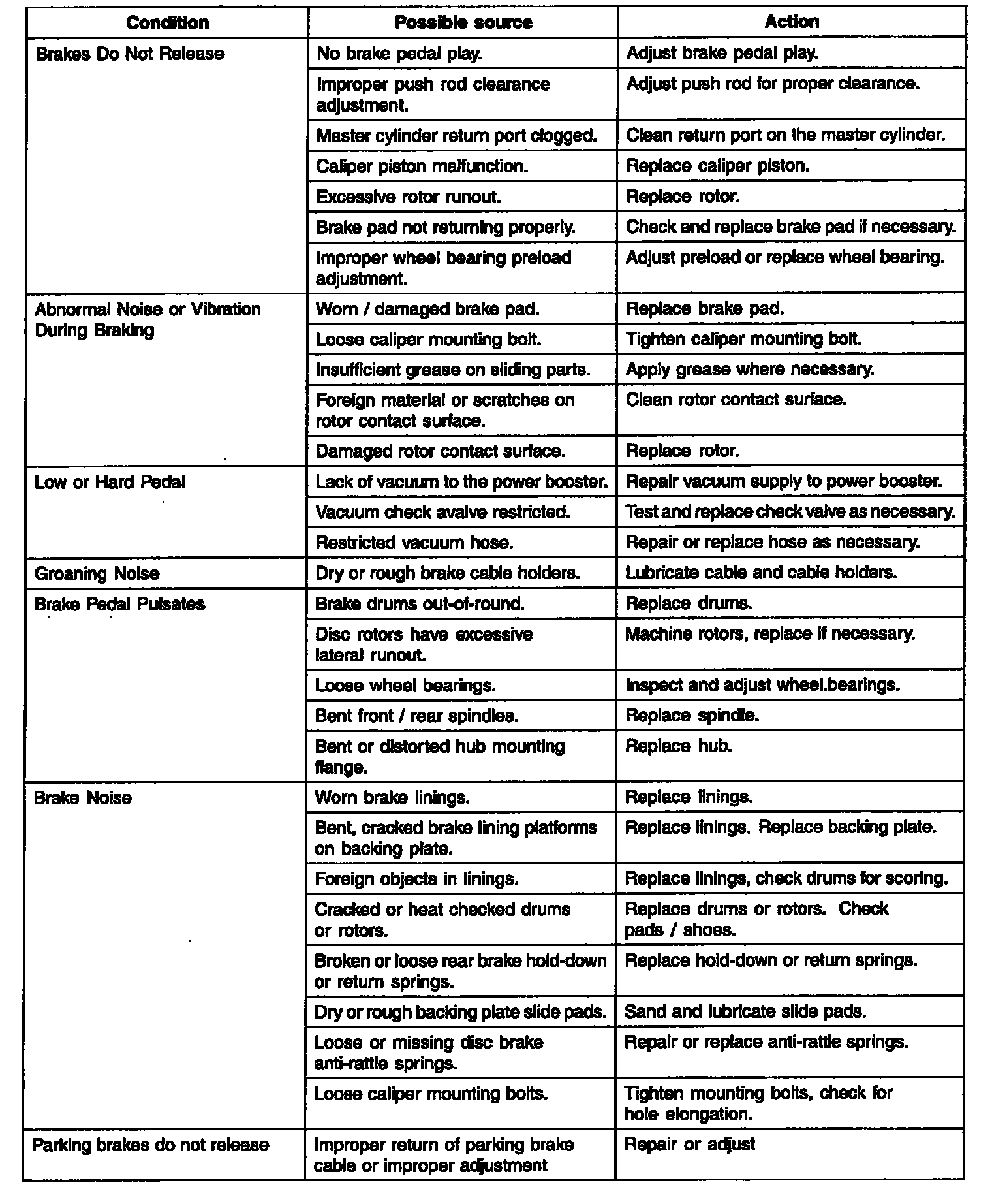

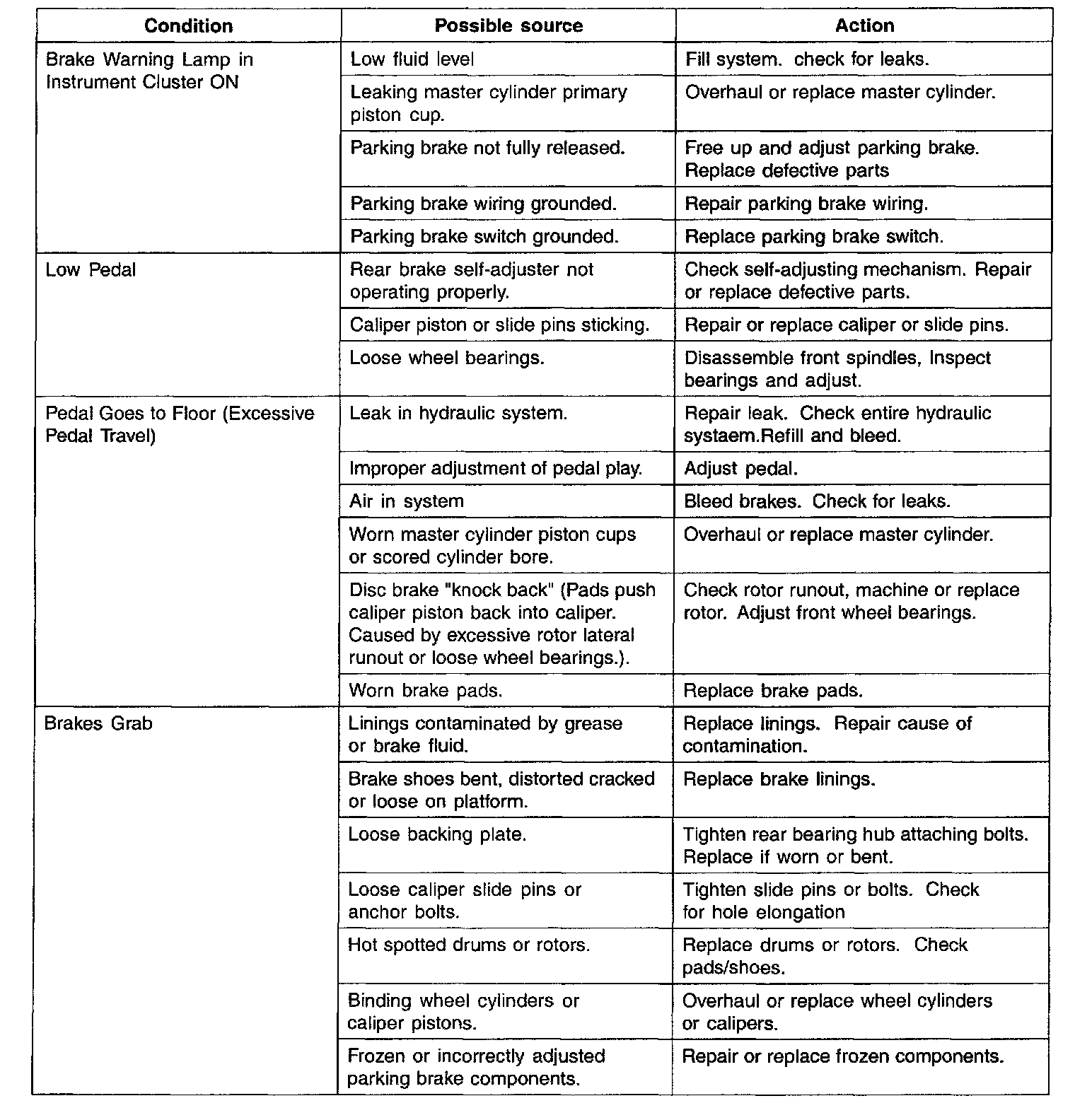

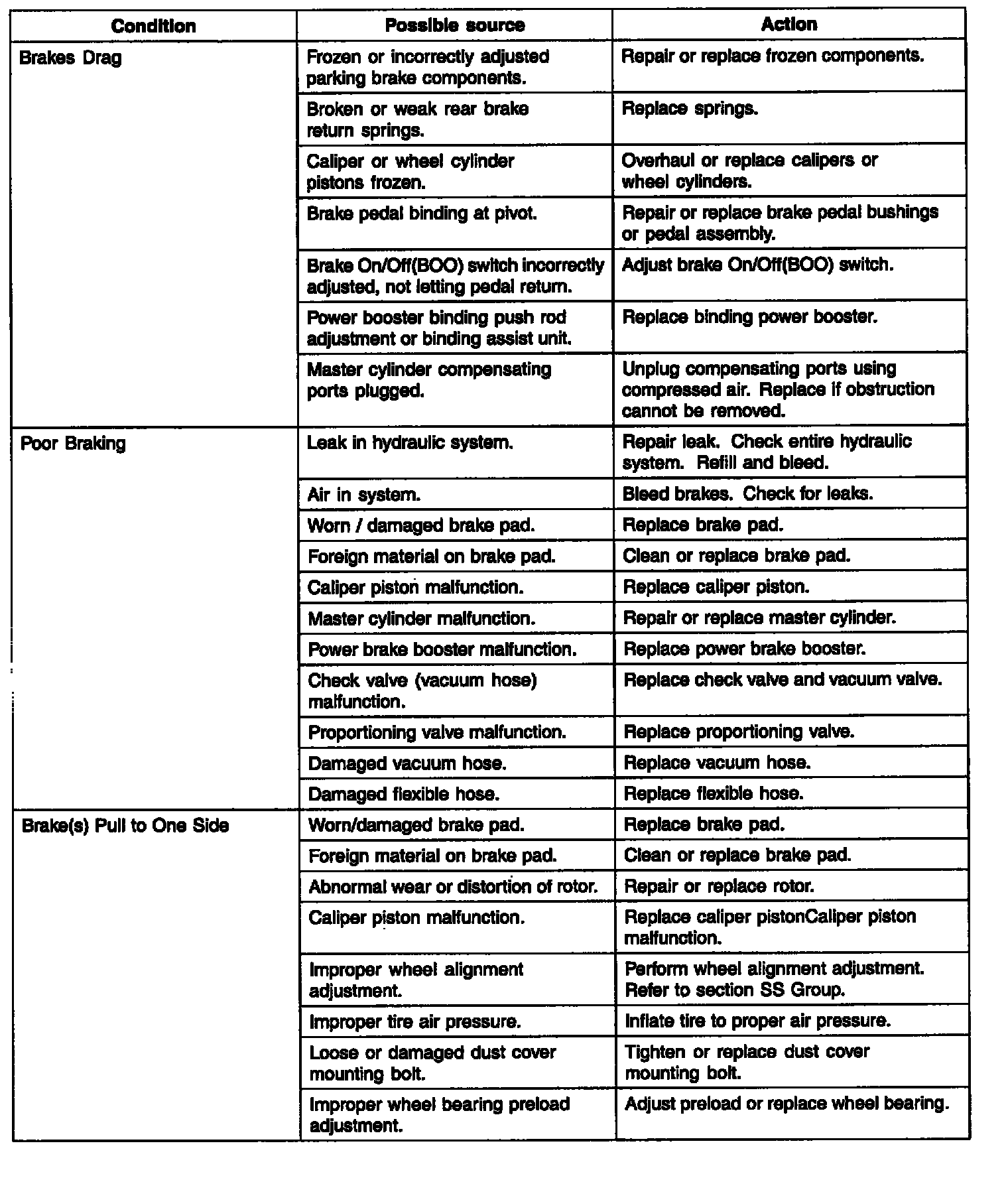

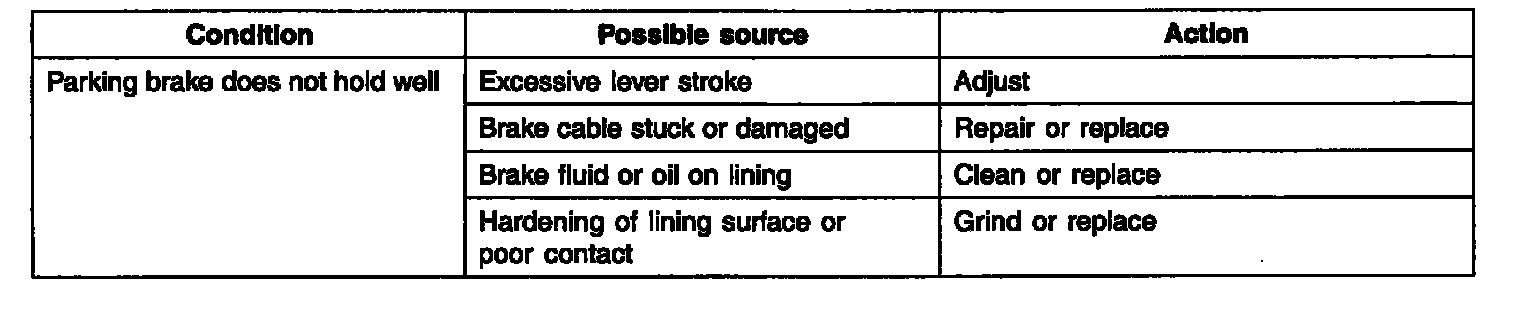

TROUBLESHOOTING GUIDE
Test 1 Of 4:
Test 2 Of 4:
Test 3 Of 4:
Test 4 Of 4:
