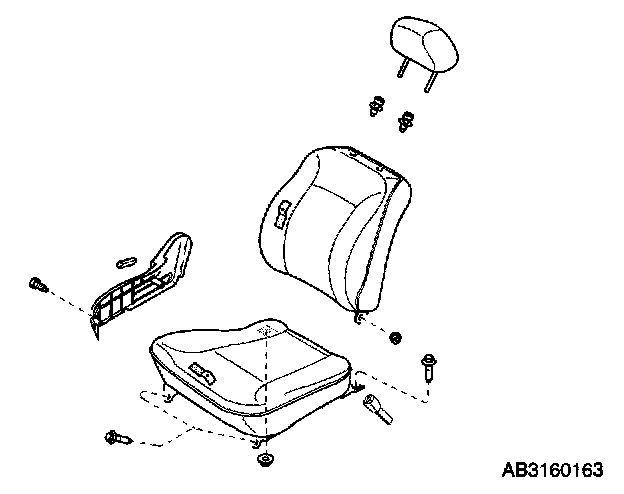

Front Seat

Removal
1. Pull reclining lever and let seatback spring forward.
2. Pull seat adjuster and push seat all of the way back.




3. Remove front two mounting bolts.
4. Move seat forward.
5. Remove rear mounting bolt and nut.
6. Remove seat.

Installation
Reverse removal procedures.

Tighten bolts to 28 - 38 lb-ft (39 - 51 N.m, 3.9 - 5.2 kg-m)
