Cushion Cover

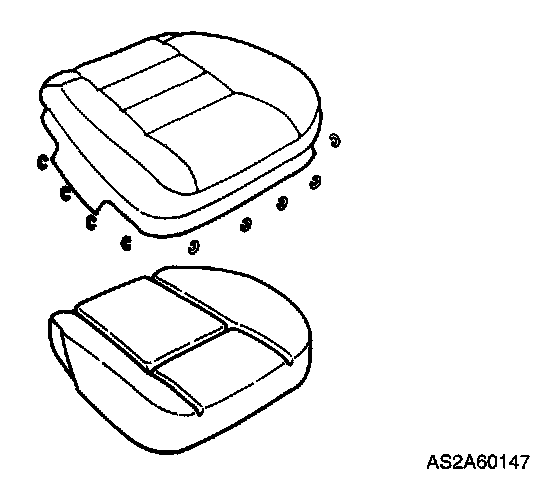

Front Seat Cushion Cover
Removal
1. Remove reclining lever.

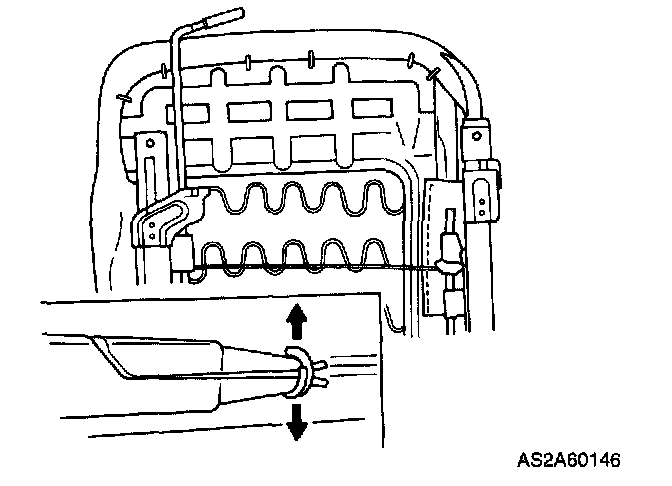

2. Remove hog rings on underside of seat cushion.




3. Pull cover off of foam cushion.

Installation
1. Place cover over foam cushion.
2. Install hog rings.




3. Install reclining lever and seatback.
