Power Locks: Service and Repair
Power Door Lock AssemblyRemoval
1. Disconnect negative battery cable.
2. Remove door trim.
3. Remove one screw on pull handle bracket.
4. Remove pull handle bracket.
5. Remove speaker.
a. Remove three screws on door speaker.
b. Unfasten harness connector from door frame.
c. Pull out speaker and disconnect connector.
6. Remove inside door handle assembly.
a. Disconnect door lock control rods.
b. Remove inside door handle.
Note: Peel plastic moisture border off carefully so that it can be reused.
7. Peel off plastic moisture barrier carefully by pulling it away gradually from door frame.

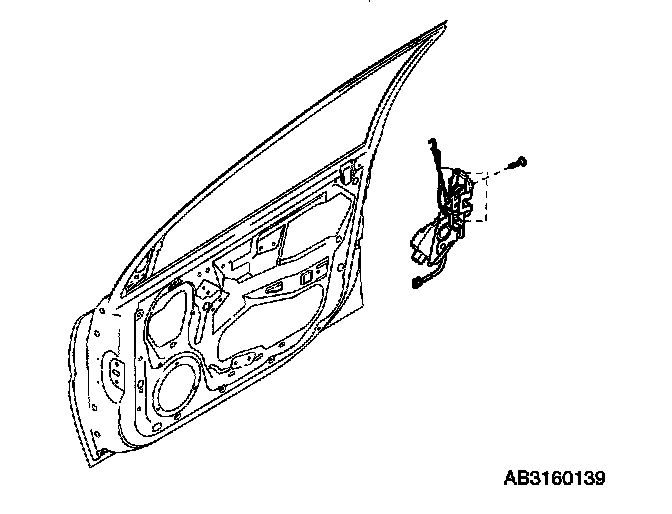

8. Remove door lock assembly.

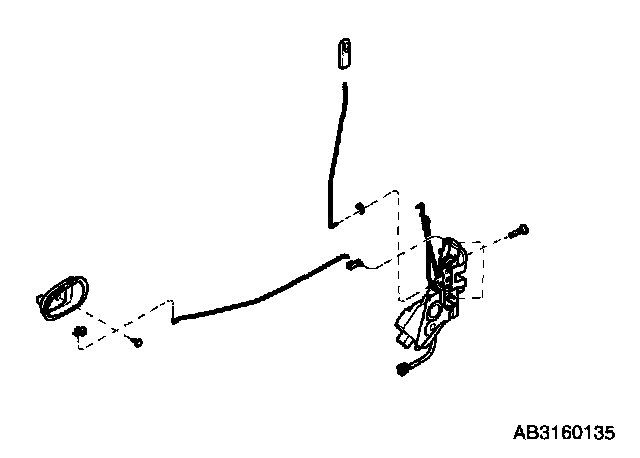

a. Remove three screws from door lock assembly and remove assembly from access hole.

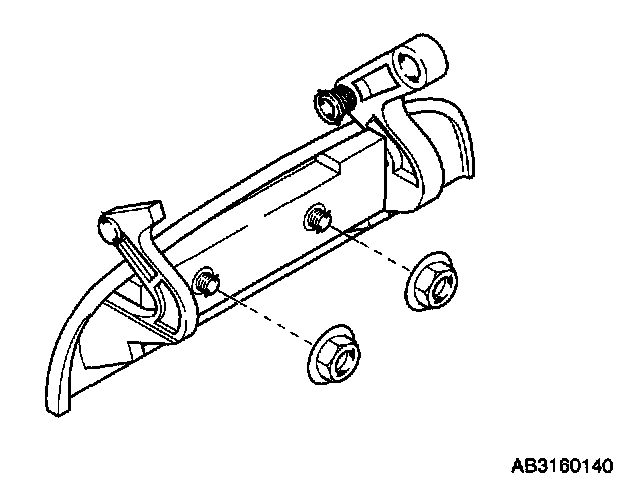

b. Remove two mounting nuts from outside door handle.
c. Remove outside door handle.
Installation

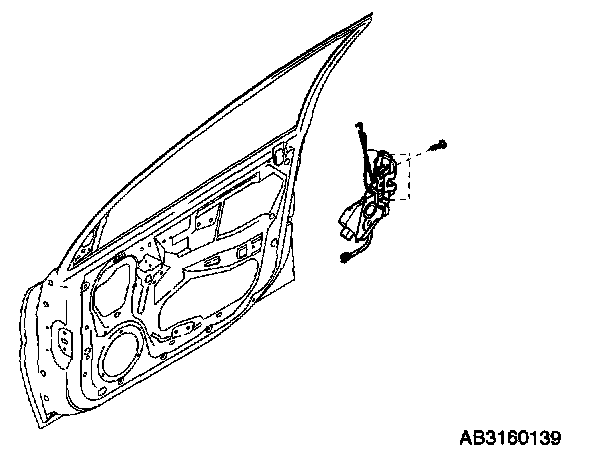

1. Install door lock assembly.
a. Position it as originally positioned through access hole.
b. Install three mounting screws.
Tighten screws to 34 - 52 lb-In (4 - 6 N.m, 40 - 60 kg-cm)
2. Install outside door handle.
a. Install two mounting nuts.
3. Install plastic moisture barrier.
a. Fasten plastic moisture barrier.
b. Pull out electrical harness connector from plastic moisture barrier.
c. Pull out control rod for inside door handle through plastic moisture barrier.

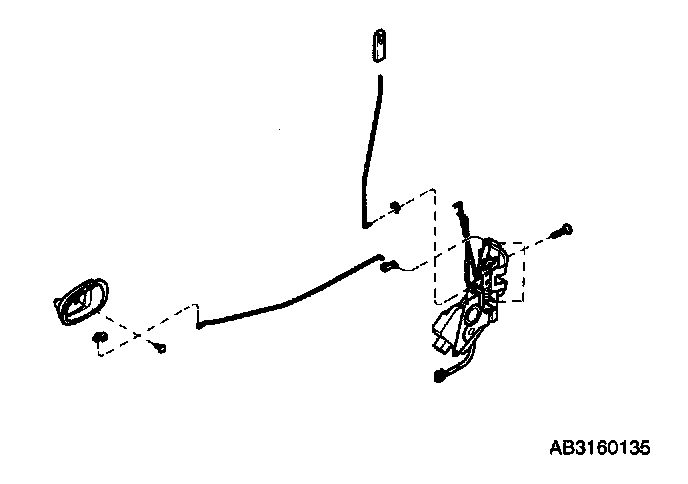

4. Install inside door handle.
a. Connect one control rods of door lock assembly.
b. Connect inside door handle rod of door lock assembly to inside door handle.
5. Install door speaker with three mounting screws.
6. Install pull handle bracket with one mounting screw.
7. Install door trim.
8. Fasten door trim. Refer to "Trim".
9. Install inner weatherstrip.
10. Connect negative battery cable.
