Upper Trim
Removal1. Removal lower mounting bolt from safety belt anchor.

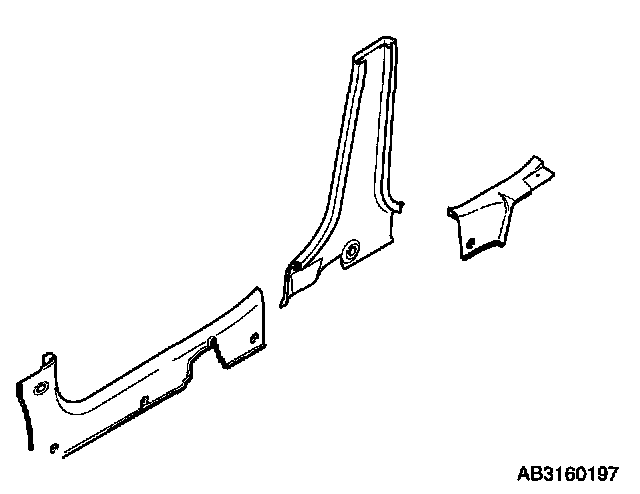

2. Remove front and rear scuff plate. Refer to "Front, Rear scuff plate".
3. Unfasten B-pillar lower trim with a trim removal tool.
4. Remove B-pillar lower trim.

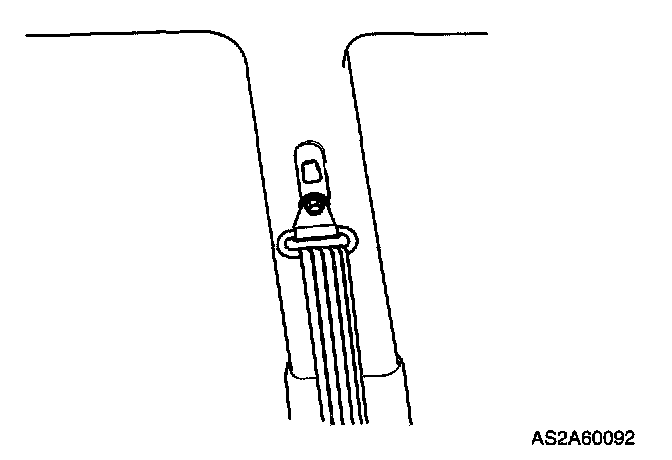

5. Remove upper mounting bolt from safety belt anchor.

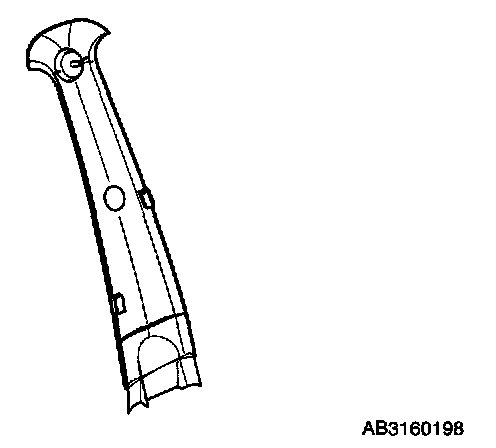

6. Remove B-pillar upper trim with a trim removal tool.
Installation
1. Position B-pillar upper trim
2. Install safety belt anchor:
a. Install one bolt on seat belt anchor.
Tighten mounting bracket bolt to 29 - 58 lb-ft (38 - 78 N.m, 3.9 - 8.0 kg-m)
b. Fasten safety belt.
3. Position B-pillar lower trim.
4. Press B-pillar lower trim.
5. Install safety belt anchor.
Tighten mounting bracket bolt to 29 - 58 lb-ft (38 - 78 N.m, 3.9 - 8.0 kg-m)
