Console: Service and Repair

Front console

Removal

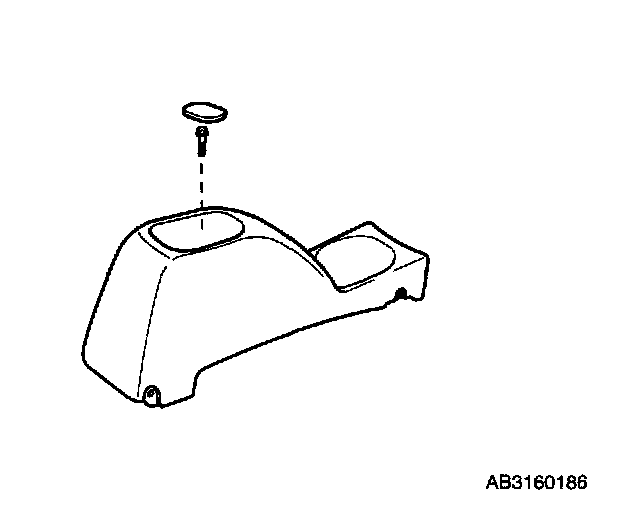

1. Remove cover and mounting bolt from rear console.




2. Remove rear console.




3. Remove center panel trim. Refer to "Center panel trim".

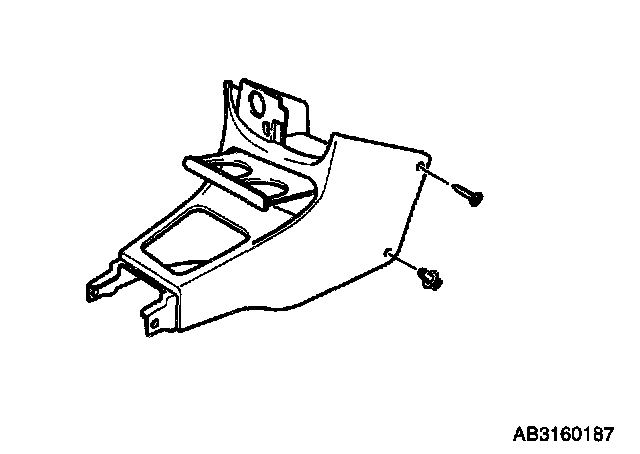

4. Remove two mounting screws and two fasteners from left side of front console.




5. Repeat for right side.
6. Remove front console.

Installation
1. Position front console and install two mounting screws and two fasteners.
2. Position rear console.




3. Install one mounting bolt and cover to rear console.




4. Install center panel trim. Refer to "Center panel trim".
