Trunk / Liftgate: Adjustments

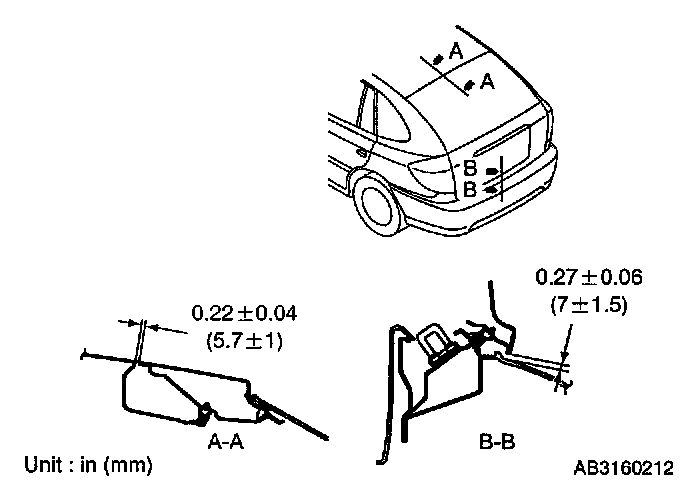

1. Measure the distances for views A and B to determine whether or not the fit is within specifications. If they are acceptable, tighten the ball studs and the hinge bolts as specified below. If not, make the appropriate adjustments at the hinges. The options are:
- Move the hatch forward or backward
- Move the hatch left or right
- Rotate the hatch clockwise or counterclockwise.
- Or any combination of the three.

Tighten the hinge bolts to 12 - 17 lb.ft (16 - 24 N.m, 1.6 - 2.4 kg.m) after adjustments are complete. Check each dimension once more to make certain the hatch did not move in the process.

2. Measure the dimension in view B. The position of the wedges on either side of the hatch opening controls the degree of hatch closure in view B. If the dimension is too large, move the wedges away from each other. If the dimension is too small, move the wedges toward each other.
3. Check if the rear hatch will smoothly fall into the lock. Adjust if necessary.
