Antenna: Service and Repair

On-vehicle service procedure

Manual antenna

Removal

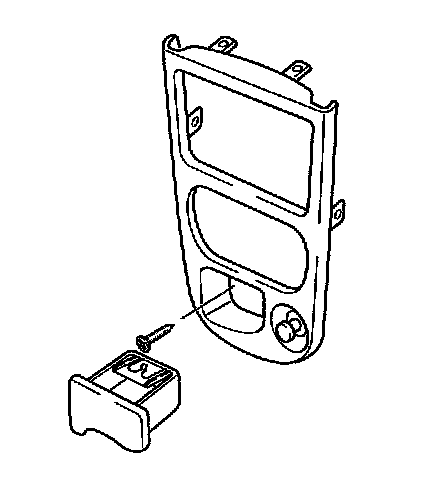

1. Remove ashtray




2. Remove one screw from center panel trim.
3. Disconnect harness connector from rear of center panel trim.
4. Pull out center panel trim.

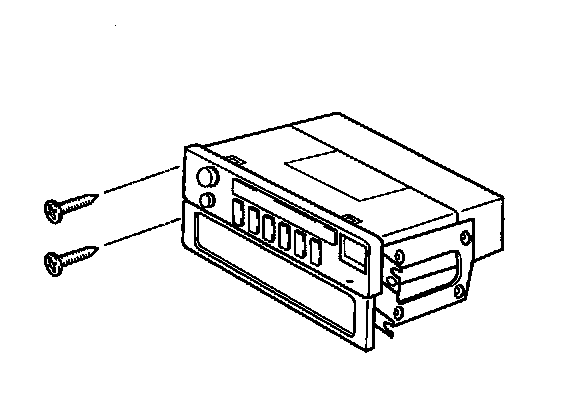

5. Remove four screws that secure radio to center panel.
6. Remove connector from rear of radio.
7. Disconnect antenna cable connector from rear radio.

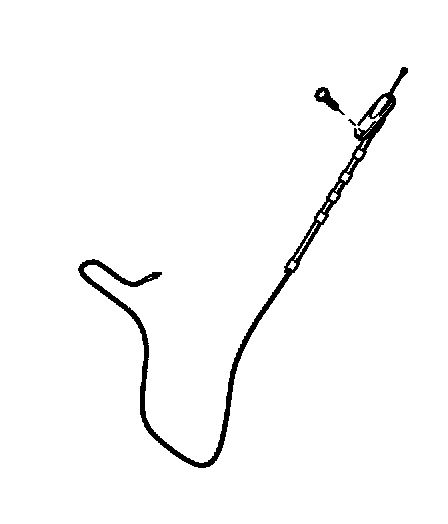

8. Remove two screws from antenna.
9. Remove antenna and cable assembly.




Installation
Install in reverse order of removal.
