Exhaust System: Service and Repair

REMOVAL

Main Muffler

CAUTION: Before removing or inspecting the exhaust system, ensure that the exhaust system is cool.

1. Disconnect the main muffler from the center exhaust pipe.





2. Remove the rubber hangers and takeout the main muffler.

Center Exhaust Pipe





1. Disconnect the center exhaust pipe from the main muffler.
2. After disconnecting from the front exhaust pipe, remove the center exhaust pipe.

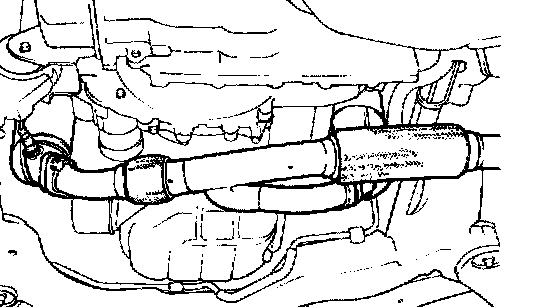

Front Exhaust Pipe (including catalytic converter)
1. Remove the front exhaust pipe from the center exhaust pipe.
2. Remove the front exhaust pipe from the exhaust manifold (Including catalytic converter)





3. Remove the front exhaust pipe from the rubber hanger.

INSPECTION





1. Check the mufflers and pipes for corrosion and damage.
2. Check the rubber hangers for deterioration and cracks.

INSTALLATION
1. Temporarily install the front exhaust pipe, the catalytic converter assembly, the center exhaust pipe, and the main muffler in this order.
2. Install the rubber hangers so that they can be identical (left and right) in length.
3. Tighten the parts securely, and then confirm that there is no interference with any body components.
