A/T - Drive Plate Installation Direction

SOURCE: Kia PitStop

TITLE: A/T Drive Plate Installation Direction

APPLIES TO: Optima

SERVICE TIP:

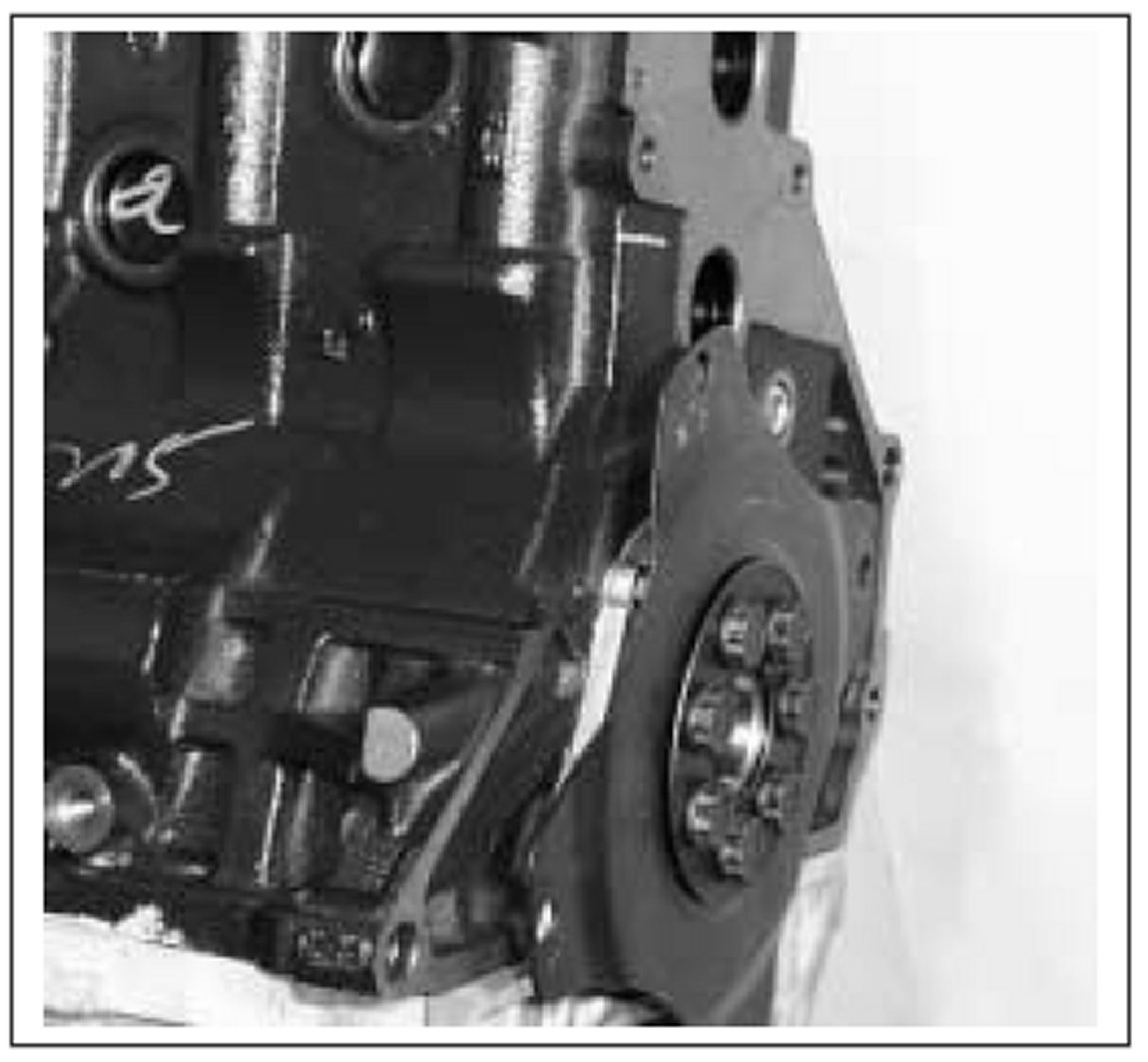

The Optima automatic transmission drive plate is offset in the opposite direction from most other vehicles. The drive plate offset goes toward the back of the engine on both four and six cylinder engines. The photo shows the drive plate offset as installed on an Optima engine.
