Adjusting Power Steering and A/C Belt

ADJUSTING THE BELT OF POWER STEERING AND AIR CONDITIONER

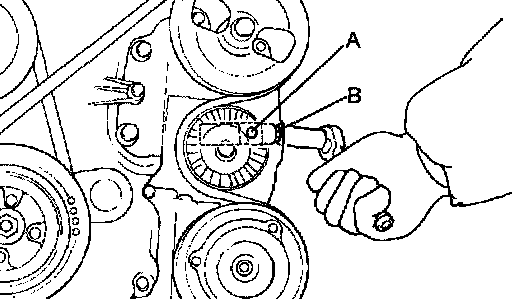

1. Loosen the tension pulley adjustment bolt A.
2. Adjust the belt deflection with adjustment bolt B.
3. Tighten the fixing bolt A.
4. Re-check the belt deflection and re-adjust, if necessary.

NOTE: Before re-checking, crank the engine one or more revolutions.
