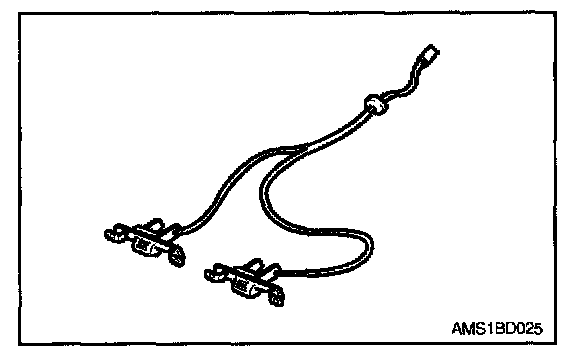

License Plate Lamp
>>
Service and Repair
>>
Removal and Replacement
>>
Replacement
Replacement
REPLACEMENT
1.
Disconnect negative battery cable.
2.
Remove two screws attaching license plate light assembly.
3.
remove bulb.
4.
Install replacement bulb.
5.
Install lens with two screws.
