Home >> Kia >> 2004 >> Optima L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Testing and Inspection >> Blower Speed Controller

Blower Speed Controller

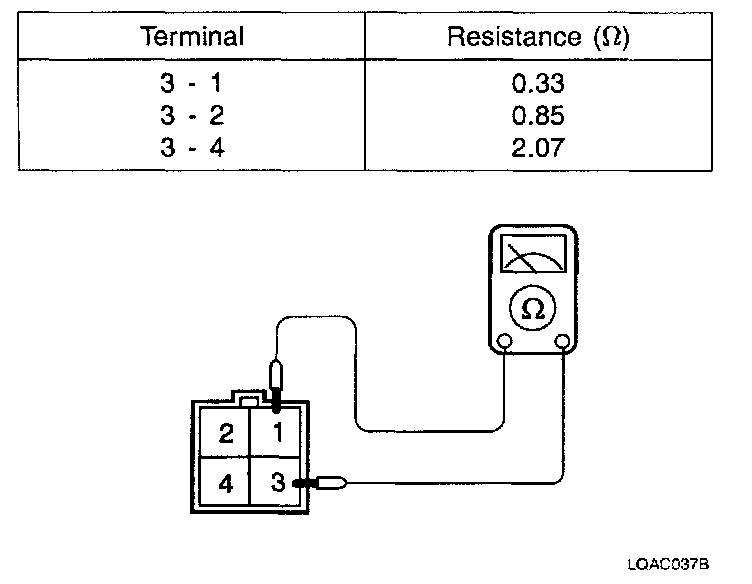

BLOWER SPEED CONTROLLER CHECK







1. Check for continuity and resistance between terminals.
