Brake Proportioning/Combination Valve: Service and Repair
PROPORTIONING VALVEINSTALLATION OF PROPORTIONING VALVE

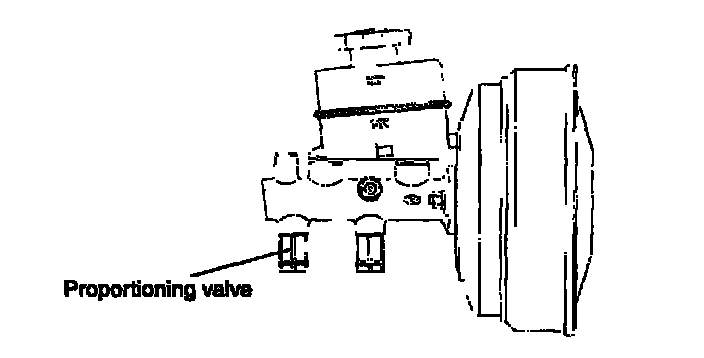

1. Install the master cylinder according to the illustration.
2. Tighten the flare nuts and bleed the system.
Tightening torque:
Brake tube flare nut: 13 - 17 Nm (130 - 170 kgf-cm, 9 - 12 ft. lbs.)
Proportioning valve mounting nut: 35 - 55 Nm (350 - 550 kgf-cm, 30 - 40 ft. lbs.)
