Enhanced Testing

P0462 - Fuel Level Sensor Circuit Low Input






General Description
The ECM uses the fuel level input in order to calculate the expected vapor presure withinthe fuel system. The vapor presure varies as the fuel level change. The vapor pressure is critical in determining if the evaporative emission system is operating properly. The ECM also uses the fuel level in order to determine if the fuel level is too high or too low to be able to accurately detect evaporative system malfunctions.

DTC Description
If the sensor output voltage is higher than 4.96V, the ECM determines that a fault exists and a DTC is stored.

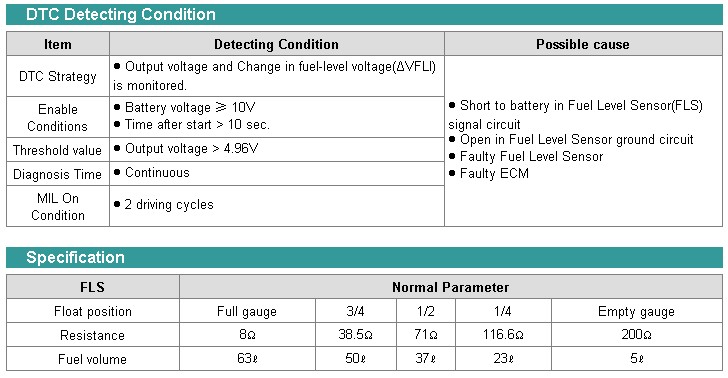

Detecting Condition





Wiring Schematic
