P0350 - Ignition Coil Primary/Sensor Circuit






General Description
With the ignition switch in the ON or START position, voltage is applied to the ignition coil. Each ignition coil consists of two coils. High tension leads go to each cylinder from the ignition coils. The ignition coils fire two spark plugs on every power stroke (the cylinder under compression and the cylinder on the exhaust stroke). The Powertrain Control Module (ECM) provides a switching circuit to ground for energizing the primary ignition coils. The ECM uses the crankshaft position sensor and camshaft position sensor signal to time the energizing of the coil. When a primary ignition coil is energized and de-energized, the secondary coil produces a high voltage spike to the attached spark plugs.

DTC Description
If there is no voltage at either of 2 ignition coil group during 32 ignitions, the ECM determines that a fault exists and a DTC is stored.

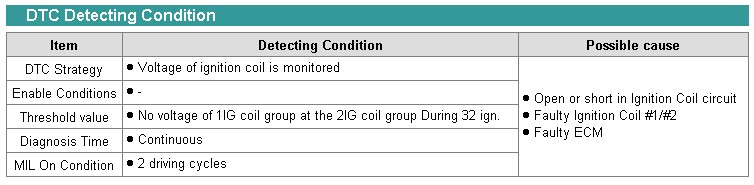

Detecting Condition





Wiring Schematic
