Enhanced Testing

P0130 - HO2S Circuit (B1/S1)







General Description
The HO2S is used to supply the ECM with information regarding the composition of the air/fuel mixture. The HO2S is positioned in the exhaust pipe ahead of the TWC. To measure the oxygen content, the HO2S requires a supply of ambient air as a reference. The HO2S produces a voltage that varies between 0.1V and 0.9V under normal operating conditions. The Powertrain Control Module (ECM) monitors this voltage and determines if the exhaust gas is lean or rich. If the voltage input at the ECM is under approx. 0.45V the exhaust is lean, and if the voltage input is over approx. 0.45V the exhaust is rich. The ECM constantly monitors the HO2S signal during closed loop operation and compensates for a rich or lean condition by decreasing or increasing injector pulse width as necessary.

DTC Description
If circuit voltage is higher than 4.5V after 5V is applied to the HO2S output line via a resistor, the ECM determines that a fault exists and a DTC is stored.

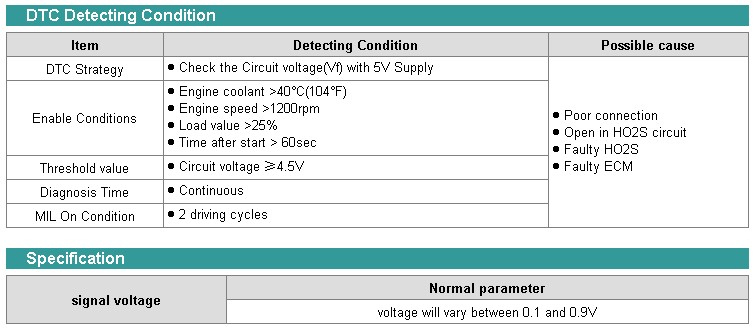

Detecting Condition





Wiring Schematic





Signal Waveform
