A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
HVAC System
HVAC System

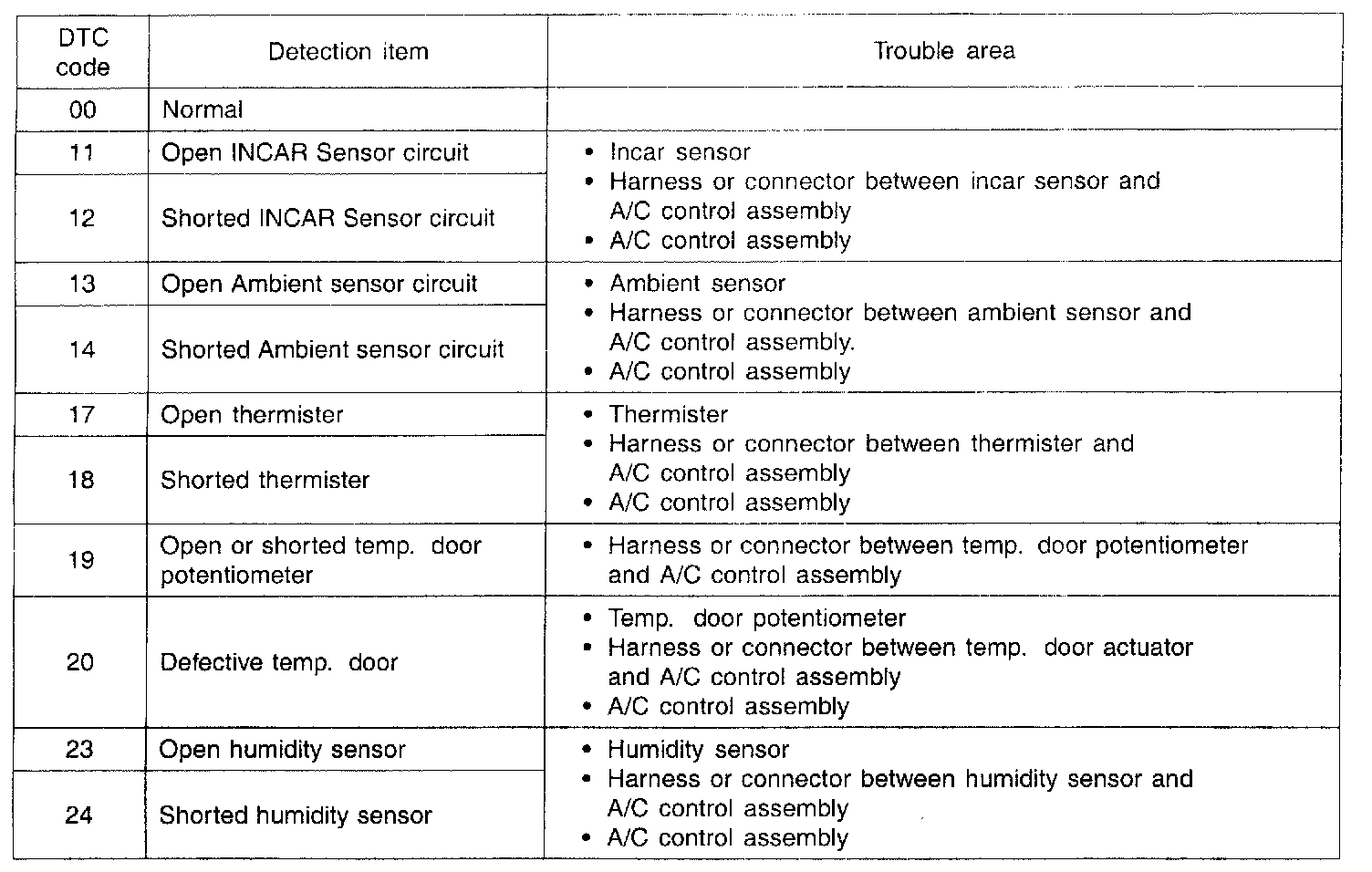

DTC 00 - 24:
If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the table.
