Standard Testing

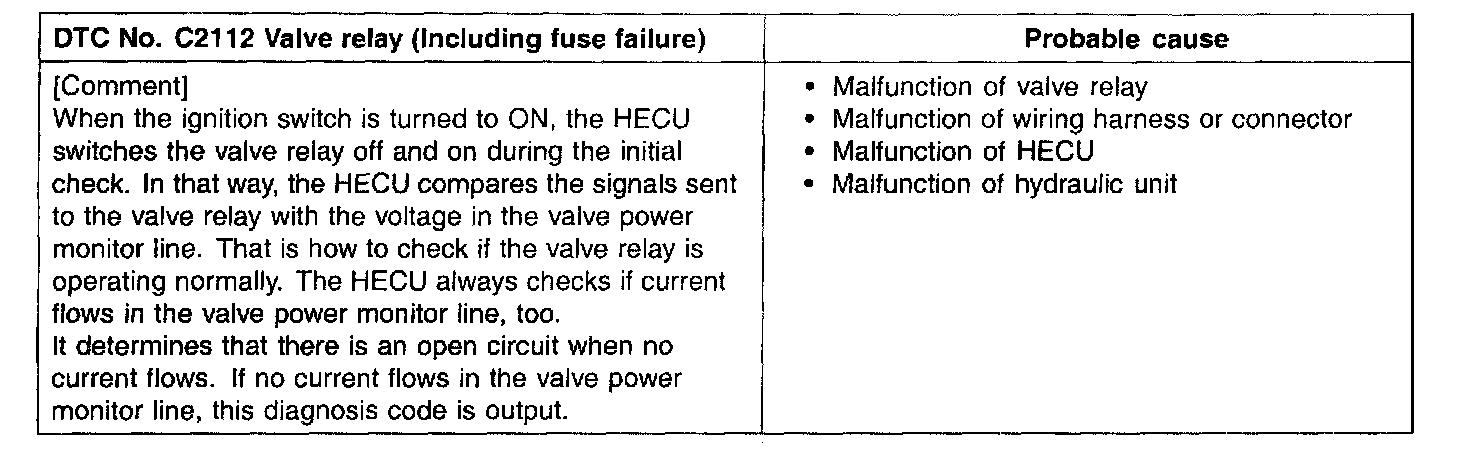

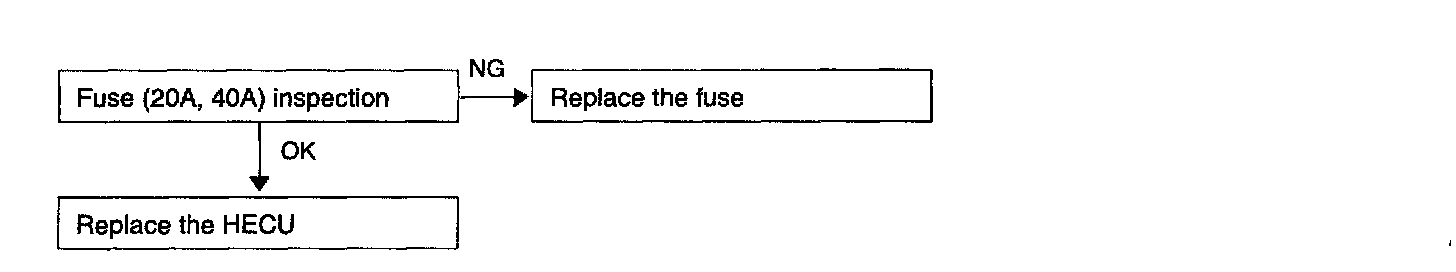

VALVE RELAY








NOTE: Whenever reading the diagnostic codes using the ABS warning lamp, this diagnosis code will be output.
