Standard Testing

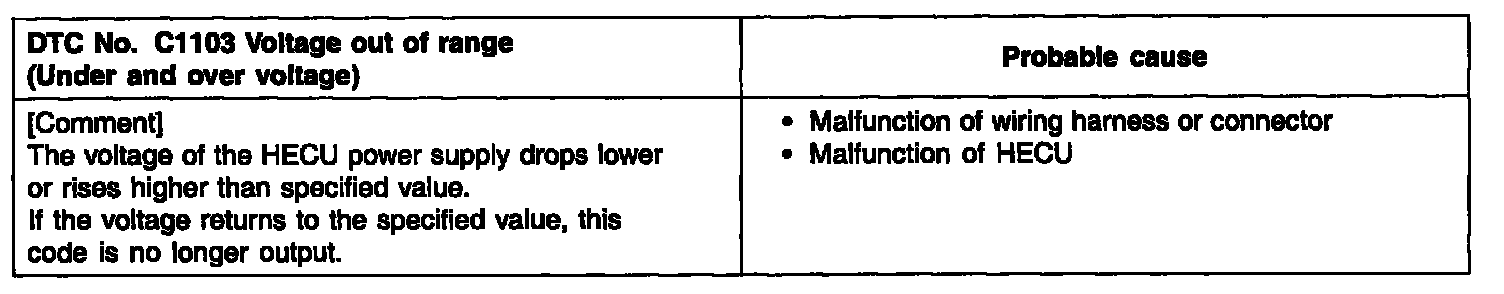

UNDER AND OVER VOLTAGE








CAUTION:
^ If battery voltage drops or rises during inspection, this code will be output as well. If the voltage returns to standard value, this code is no longer output.

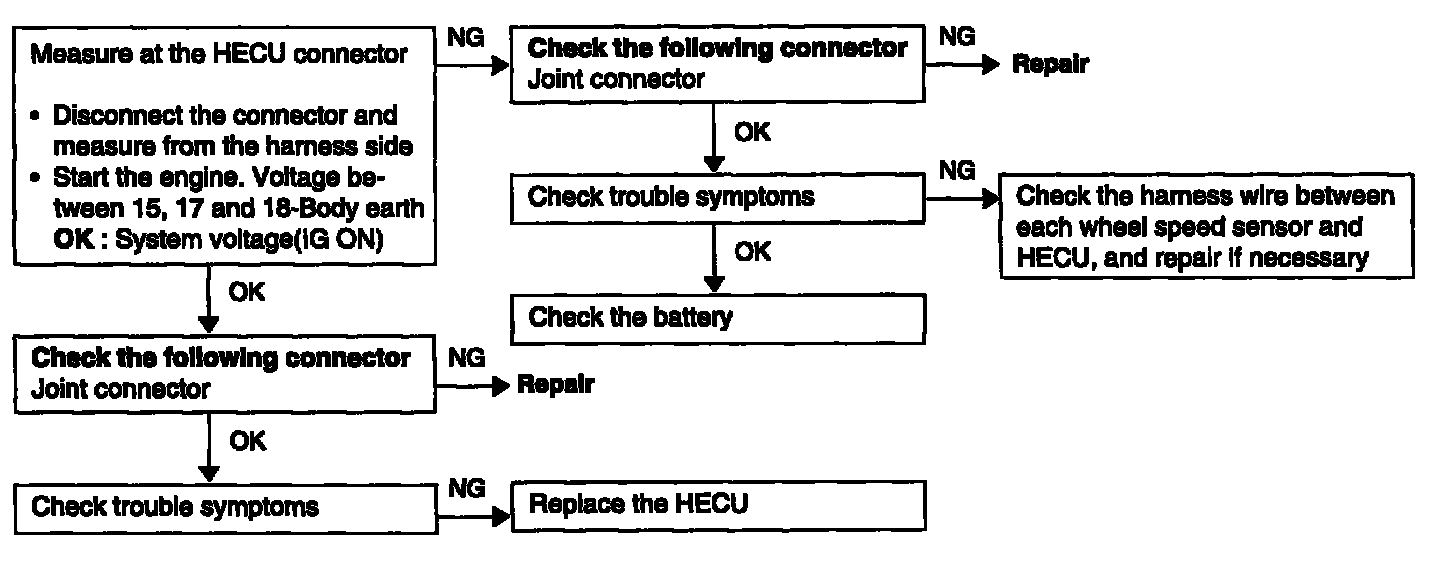

^ Before carrying out the following inspection, check the battery level, and refill it if necessary.
