Enhanced Testing

B2500 - Warning Lamp






Operation

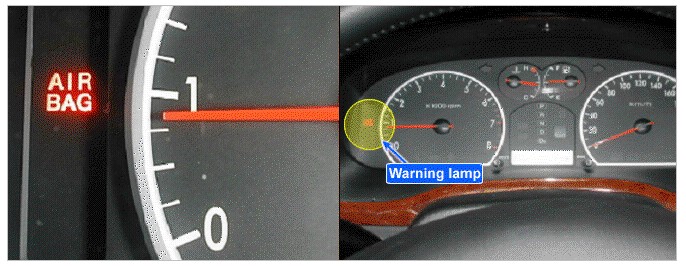

The SRS warning light is located on the Instrument cluster. When the SRS is normal condition, the SRS warning light lights up for approximately 6 seconds after the ignition switch is turned ON position, and then turns off automatically. If there is a malfunction in the SRS system, the SRS warning light lights up to inform the driver of the abnormality.

DTC Description
DTC B2500 is recorded when occurrence of a malfunction in the SRS warning system.

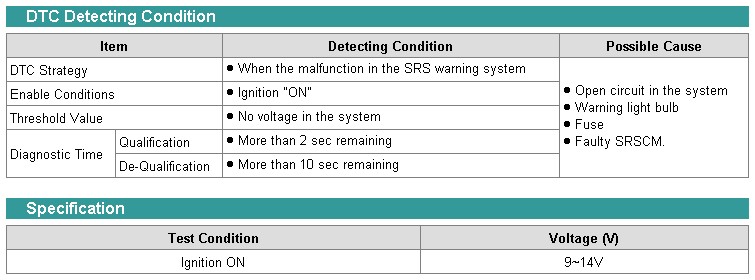

Detecting Condition

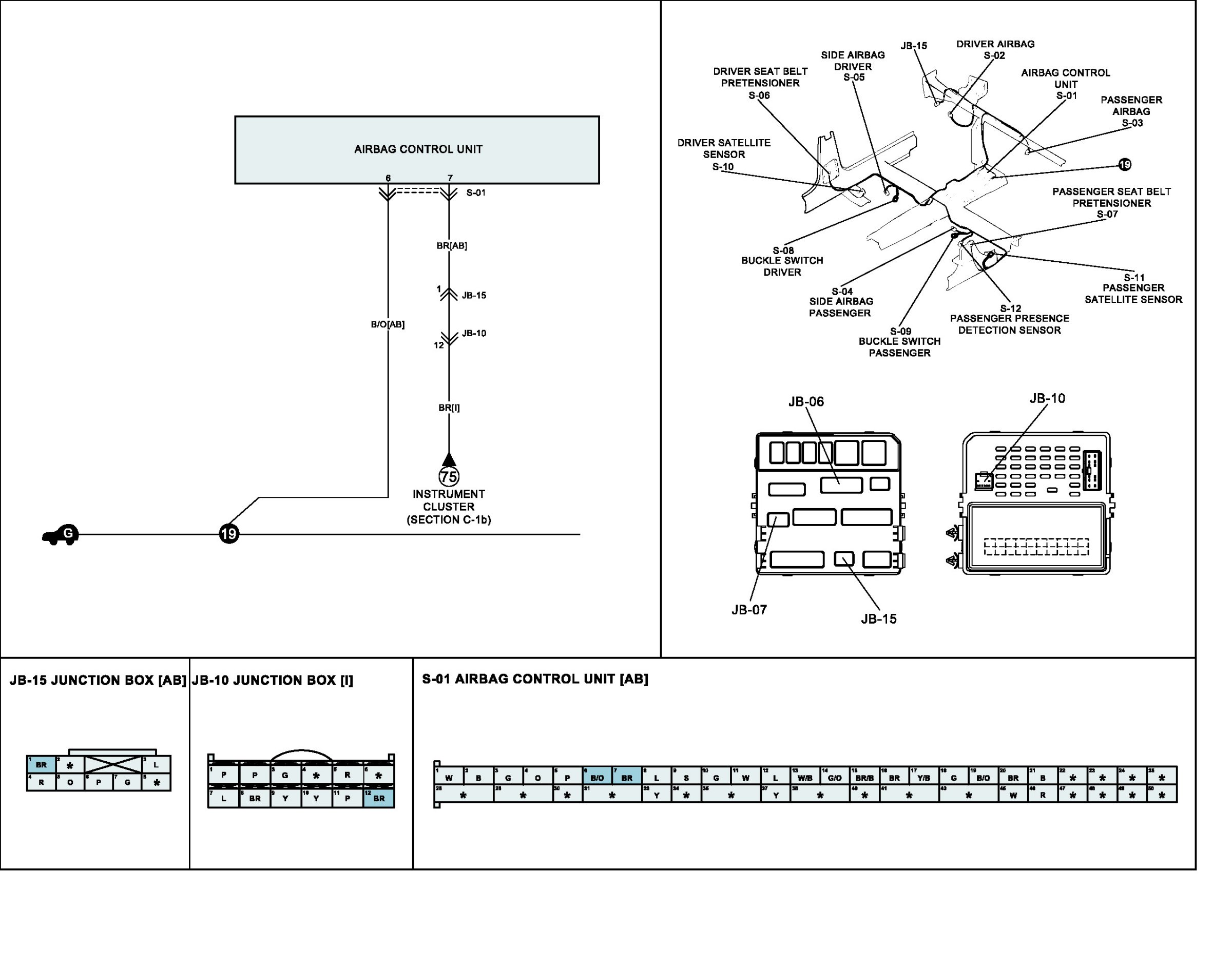

Wiring Schematic
