B1513 - Buckle Switch: Passenger Open or Short to Battery






General Description

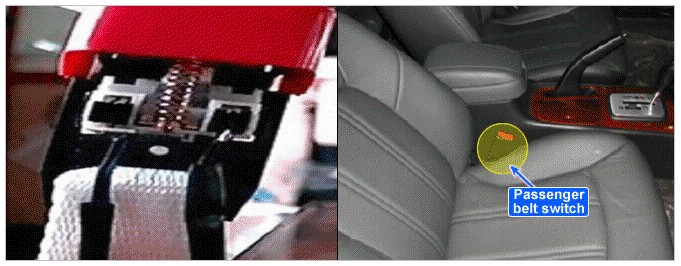

The seat belt buckle switch (passenger side/RH) circuit consists of the SRSCM (Airbag control module) and front passenger seat inner belt assy. In event of accident, pretensioner and passenger's side airbags will not operate when the buckle switch are unlocked, to save parts and reduce repair cost.

DTC Description
DTC B1513 is recorded when a malfunction is detected in the seat belt buckle switch (LH) circuit (open or short to battery).

Detecting Condition and Specifications

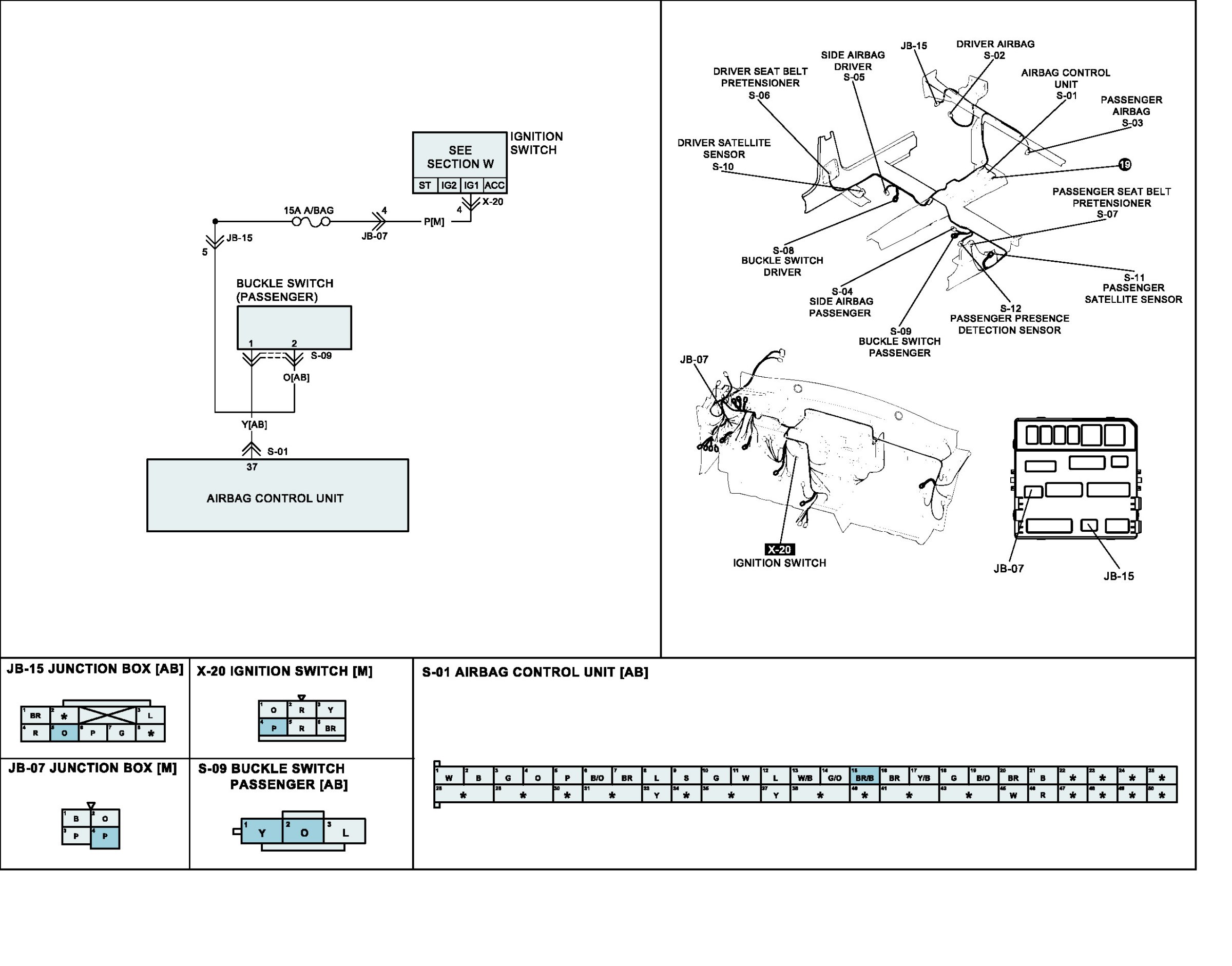

Wiring Schematic
