Enhanced Testing

B1403 - SIS Front-Passenger Defect






Operation

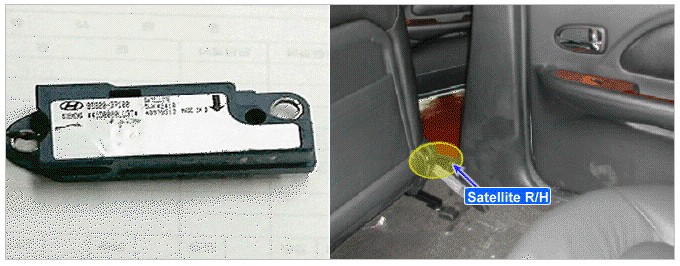

The Side Impact sensor (SIS) assy circuit includes a diagnosis circuit and a lateral deceleration sensor. It receives signals from the lateral deceleration sensor, detects diagnosis system malfunctions, and judges whether or not the SRS must be activated.

DTC Description
DTCs, B1403, B1404 and B1405, are recorded when a malfunction in the Side Impact Sensor assembly (right side) is detected.

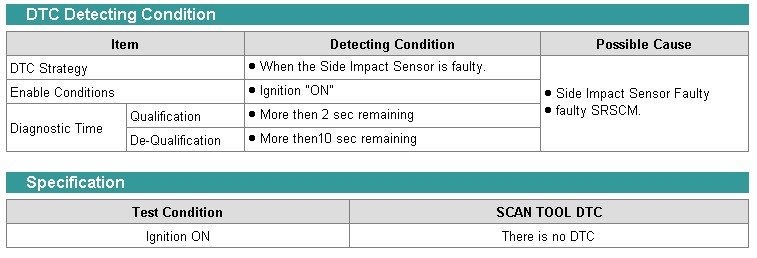

Detecting Condition and Specifications

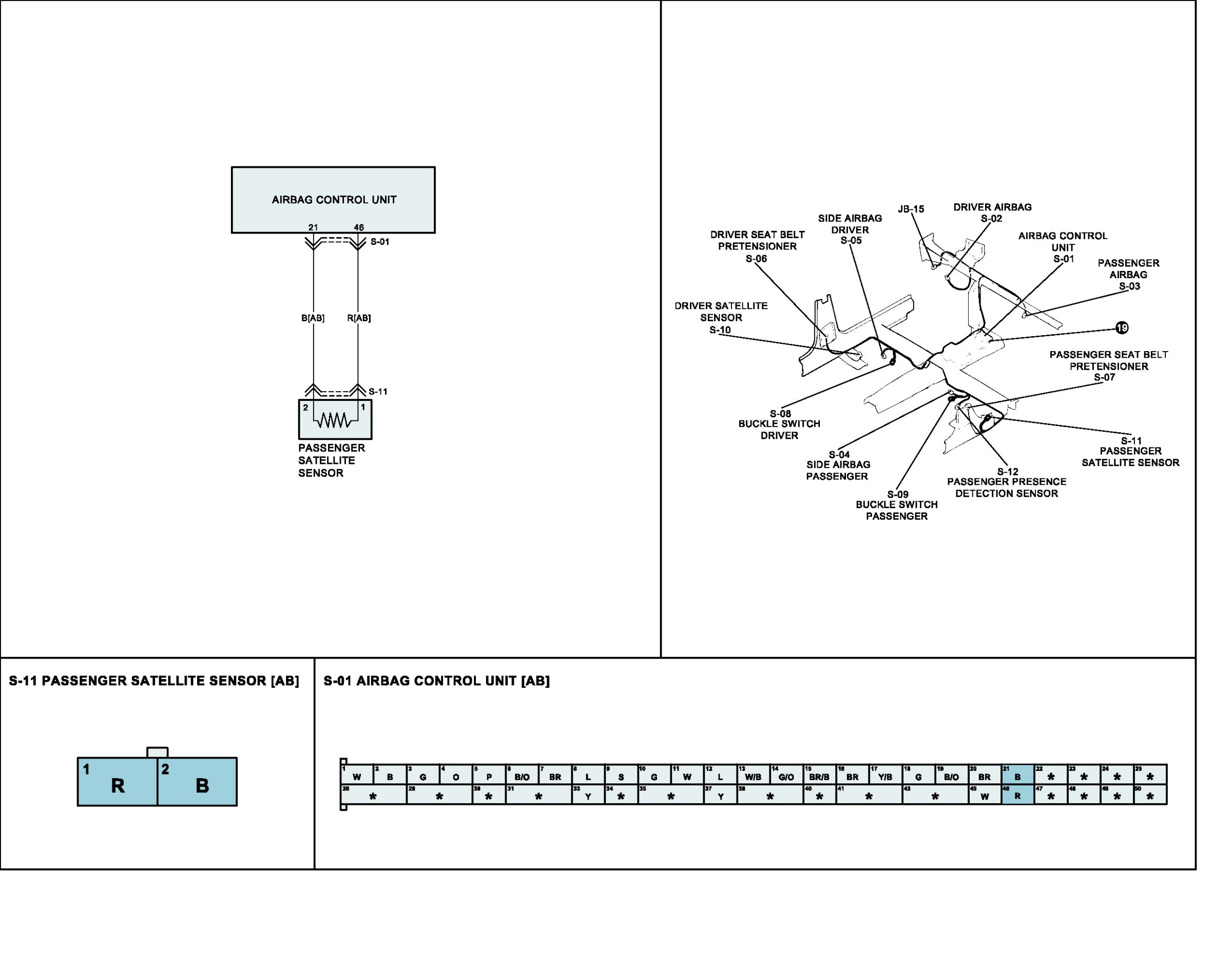

Wiring Schematic
