Standard Testing

DTC B1378 Side Airbag [Driver] Resistance Too High

Circuit Description

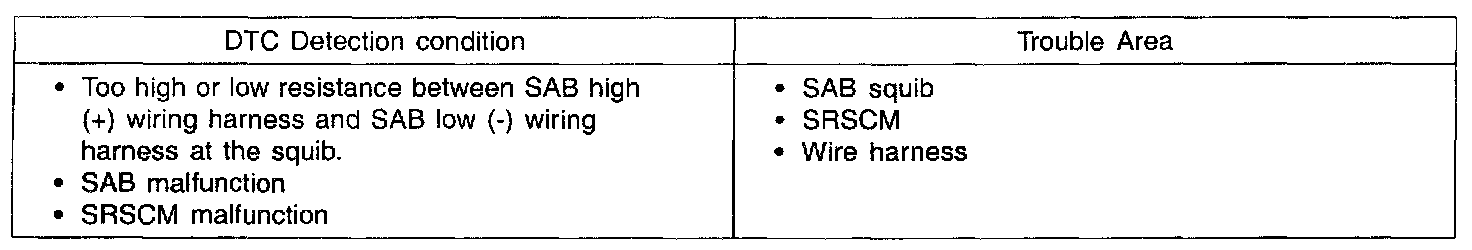

DTC Detection Condition:

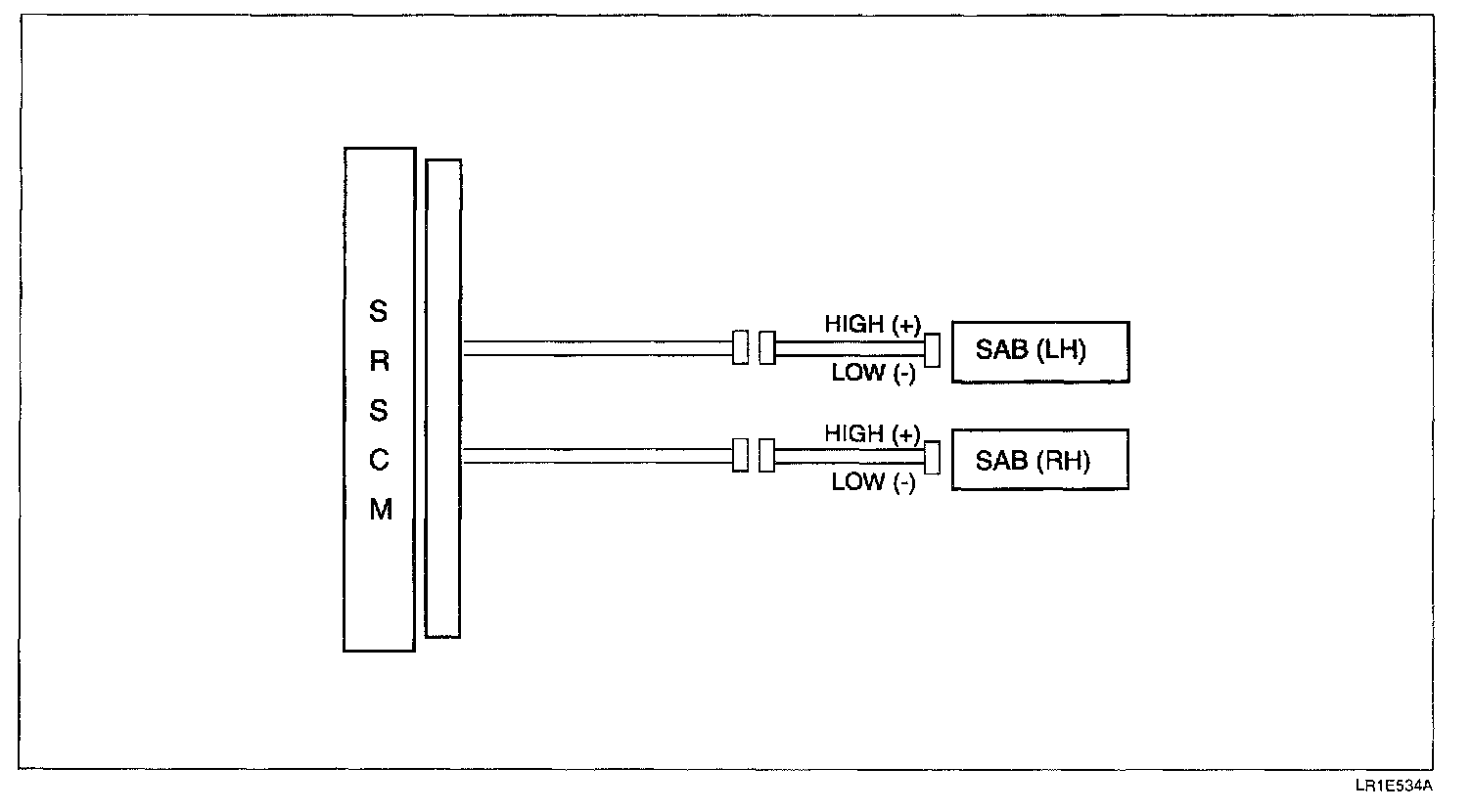

Wiring Diagram:

The SAB squib circuit consists of the SRSCM and SAB. It causes the airbag to deploy when the airbag deployment conditions are satisfied. The above DTCs are recorded when the SAB resistance is too high or low in the SAB squib circuit.


INSPECTION PROCEDURE

1. Preparation
1. Disconnect negative (-) terminal cable from the battery, and wait at least 30 seconds.
2. Disconnect the connector of the SAB module.
3. Disconnect the connector of the SRSCM.

2. Check the SAB resistance.

WARNING:
- Never attempt to measure the circuit resistance of the airbag module (squib) even if you are using the specified tester.
- When measure the resistance, must remove the module and install the dummy instead of it.
- Be careful not to connect an ohmmeter to the wrong terminal of SRSCM connector. For example when inspect the DAB module, the PAB module may deploy if you connect an ohmmeter to terminals linked with PAB. To prevent this problem, disconnect the connectors of all modules (DAB, PAB, BPT, SAB) from wiring harness.

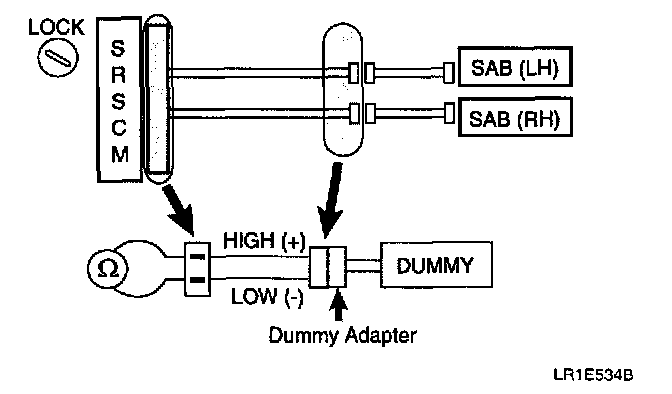

PREPARATION
1. Release the shorting bar on the SRSCM side of the airbag squib side.




2. Connect the dummy (0957A-38200) and dummy adapter (0957A-38300) to the SAB harness side connector.

CHECK: Measure the resistance between the SAB high (+) and low (-) terminals.

1.9 Ohm <= R <= 2.5 Ohm

NG: Repair or replace the harness or the connector between the SRSCM and the SAB.

OK: Go to step "3".

3. Check the SAB squib.

PREPARATION
1. Turn the ignition switch to LOCK.
2. Disconnect the negative (-) terminal cable from the battery, and wait for 30 seconds.
3. Connect the SRSCM connector and the SAB connector.




4. Connect the negative (-) terminal cable to the battery, and wait for 30 seconds.

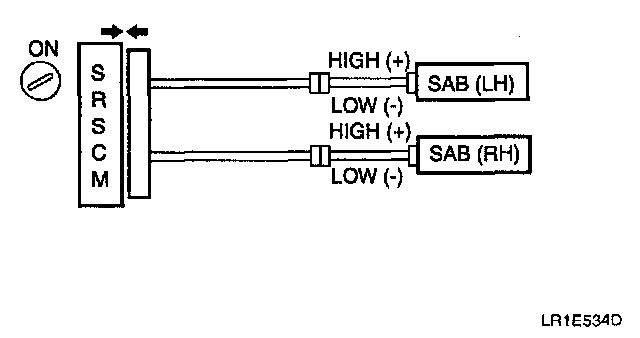

CHECK:
1. Turn the ignition switch to ON, and wait for at least 30 seconds.
2. Clear the malfunction code stored in the memory of the Hi-Scan Pro.
3. Turn the ignition switch to LOCK, and wait for 30 seconds.
4. Turn the ignition switch to ON, and wait for 30 seconds.
5. Using Hi-Scan Pro, check for DTCs.

There is no DTC.

HINT: Codes other than these may be output at this time, but they are not relevant to this procedure.

NG: Replace the SAB module.

OK: Check the SRSCM.
