Diagram B-2e

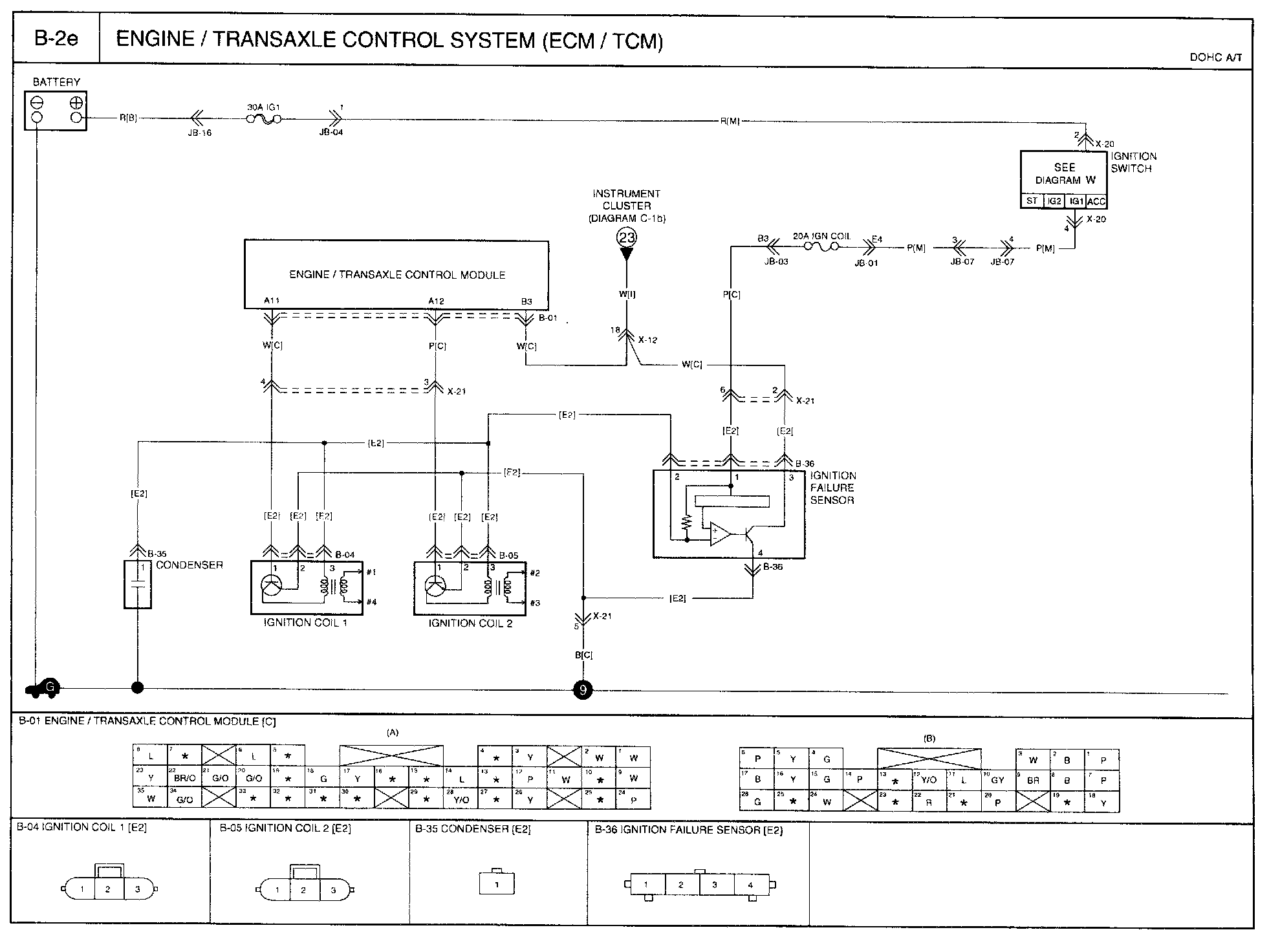

Diagram B-2e:

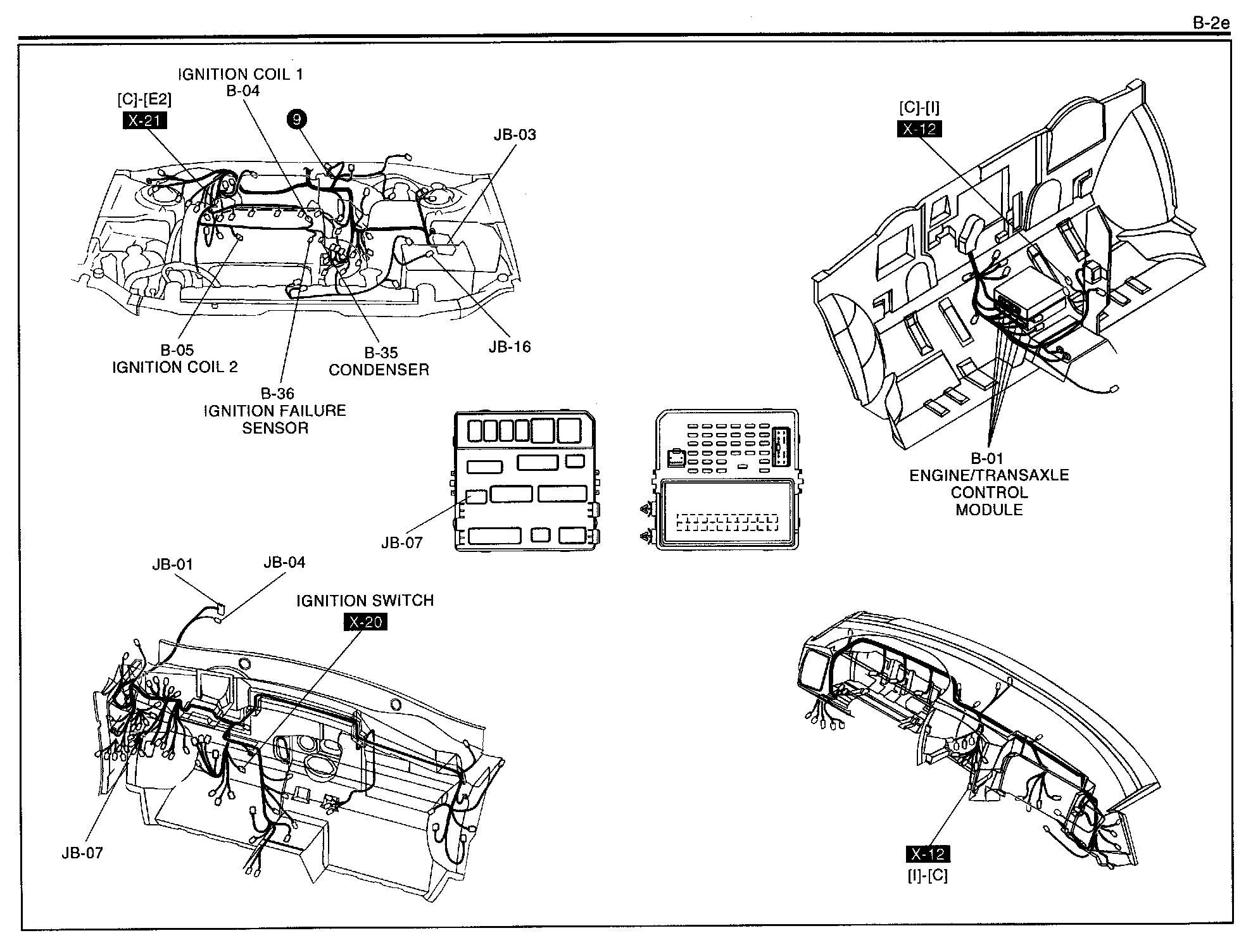

Routing View B-2e:

Previous Diagram Diagram B-2d


Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
