Inspection Procedure 1 - Communication With the Scan Tool
Inspection Procedure 1 - Communication With the Scan Tool

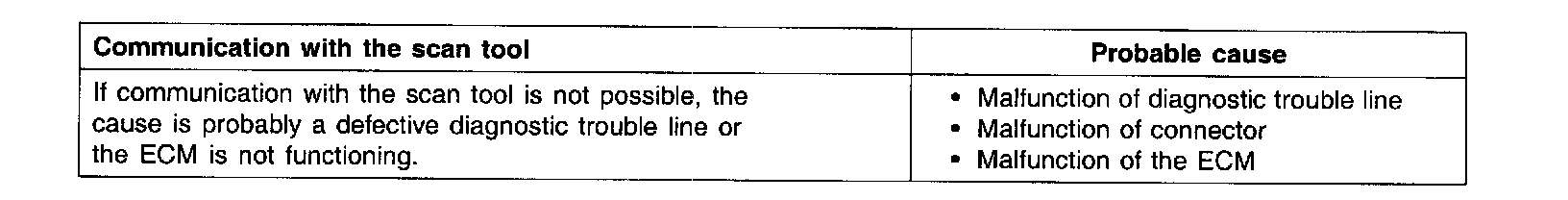

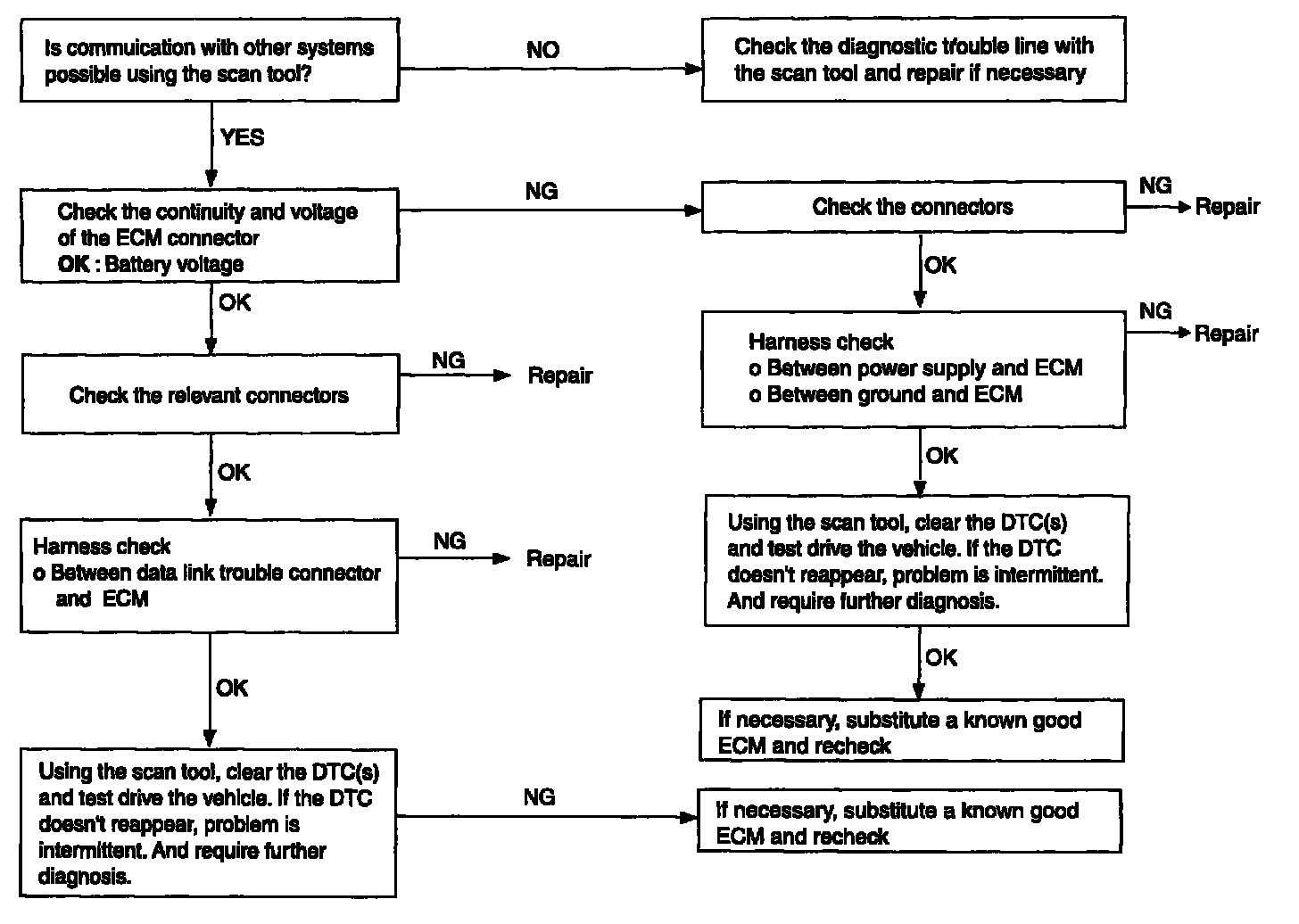

INSPECTION PROCEDURE 1

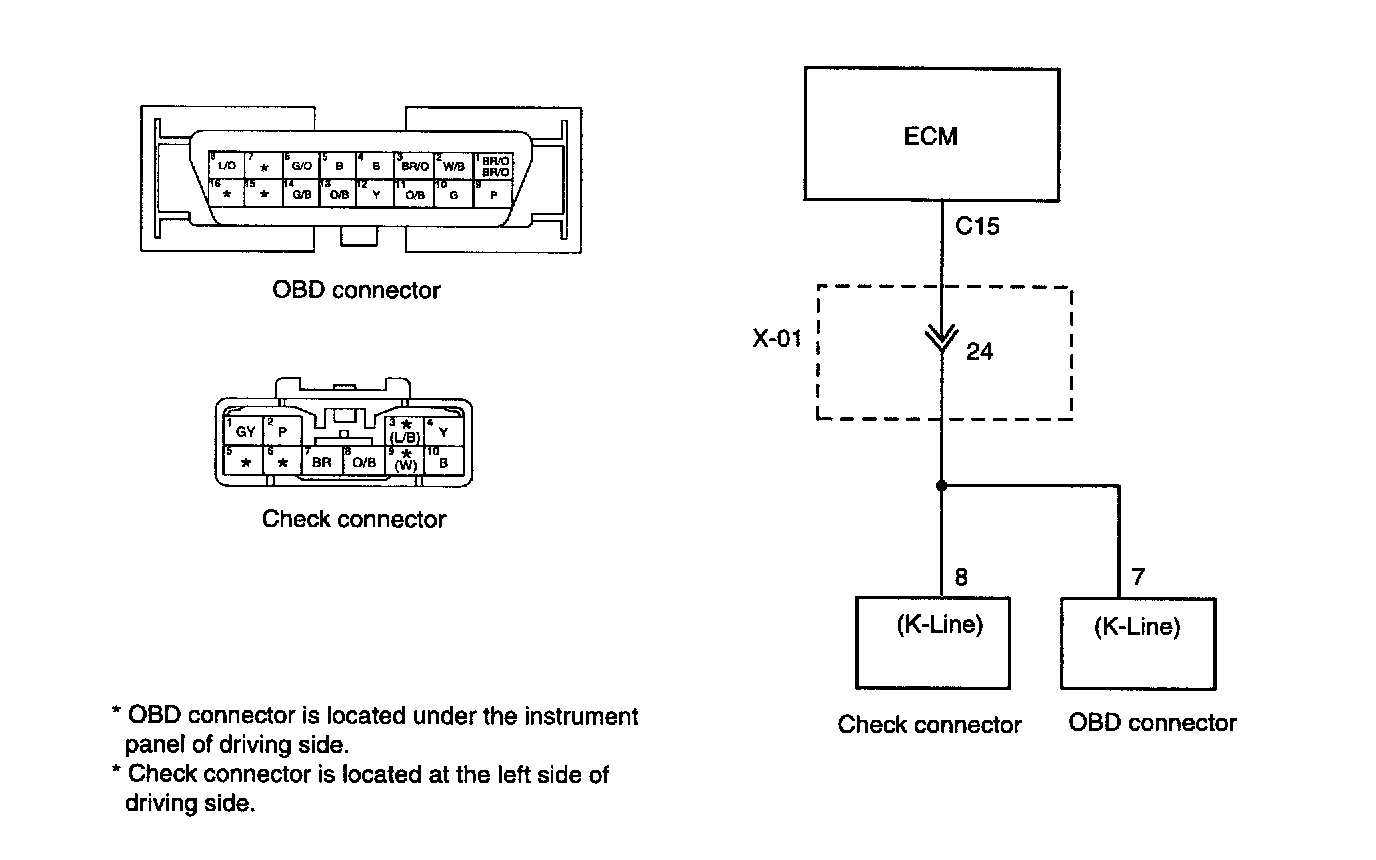

CIRCUIT DIAGRAM
