Displaying & Reading Trouble Codes

DIAGNOSIS PROCEDURE

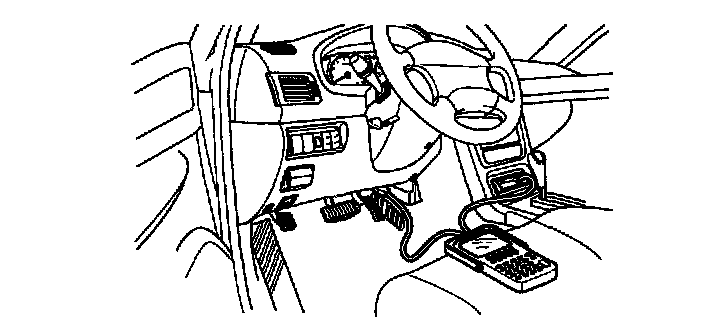

1. Connect Hi-Scan with the self-diagnosis connector and the cigar-lighter socket.
2. Wait 3-4 seconds and select the vehicle model.
3. Upon selecting vehicle, press "YES" button.
4. Screen will display MENU and then chose diagnosis code or maintenance data item to output.

NOTE
^ Hi-Scan will store maximum 8 diagnosis codes and maximum 3 failsafe items in the order of generation in PAM.
^ The same code will not be stored twice or more.
^ If codes or failsafe items occur more than RAM capacity, they will be erased in the order of generation.
^ Upon disconnecting battery power of all stored codes and failsafe items will be erased. Do not separate battery power before completing the procedure.
^ Place shift lever at "P" or "N" and stop the vehicle.
